1970年，Statek公司率先使用光刻、化學蝕刻和微機械加工等半導體技術制造晶圓形式的石英諧振器。如今，Statek在設計、開發和制造高度可靠的超微型石英晶振頻率控制產品方面仍處于創新的前沿。
創新的內部設計、生產和測試能力不僅使新產品的快速開發和驗證成為可能，而且使關鍵產品特性的持續改進成為可能，如低加速度靈敏度、高沖擊、嚴格的校準容限、低老化、抗輻射和在越來越高的工作溫度下高度穩定的頻率。
Statek與姐妹公司AdTech Ceramics和Greenray Industries，股份有限公司保持著協同關系，這兩家公司都是其行業的領導者。在線訪問他們，了解更多關于他們卓越能力的信息。

ORANGE, Ca., – Statek Corporation is proud to announce the release of its 30 kRad tolerant, ultra-high shock, low phase-noise oscillator. Capable of withstanding shocks up to 100,000 g, the CXOXLPNR is housed in a hermetically sealed ceramic 3.2 x2.5 mm package and has an operating temperature range of -55 °C to +125 °C. The CXOXLPNR delivers a low voltage CMOS output with low phase noise, low jitter and low acceleration sensitivity. At 125 MHz, its noise floor is -165 dBc/Hz at 20 MHz offset and the typical RMS phase jitter over 12 kHz to 20 MHz is 75 fs. Available with screening options to meet all program requirements, the CXOXLPNR will become the preferred choice for all
Low Earth Orbit (LEO) applications.

Statek石英晶體振蕩器首選低地球軌道.

OSCILLATOR MODEL		PACKAGE (mm)	FREQUENCY RANGE (Click for Data Sheet)
OSCILLATOR MODEL		PACKAGE (mm)	FREQUENCY RANGE (Click for Data Sheet)
CXOU Ultra-Low Power		2.0 x 1.2	32 kHz to 100 kHz
CXOL Ultra-Low Power		3.2 x 1.5	32 kHz to 100 kHz
CXOLAT		3.2 x 1.5	32.768 kHz
CXOLHG High Shock		3.2 x 1.5	16kHz to 32.768 kHz
CXOLHT Performance to 200°C Shock to 100,000g		3.2 x 1.5	16 kHz to 50 MHz
CXOLP Low Power		3.2 x 1.5	1 MHz to 8.5 MHz
CXOQ, CXOQHG High Shock		2.5 x 2.0	16 kHz to 100 MHz
STXO, STXOHG Tight Frequency Stability Shock to 100,000g		3.2 x 2.5	10 MHz to 70 MHz
CXOX, CXOXHG High Shock		3.2 x 2.5	16 kHz to 160 MHz
CXOXHT High Temperature		3.2 x 2.5	32.768 kHz 1 MHz to 50 MHz
CXOXULP Ultra-Low Power		3.2 x 2.5	32.768 kHz
CXOXULPHT High Temperature Ultra Low Power		3.2 x 2.5	32.768 kHz
CXOXLPN Low Phase Noise High Shock		3.2 x 2.5	10 MHz to 125 MHz
CXOXLPNR Radiation Tolerant		3.2 x 2.5	20 MHz to 125 MHz
MTXO, MTXOHG Tight Frequency Stability (±5ppm) High Shock		3.2 x 2.5	10 MHz to 50 MHz
CXOMK, CXOMKHG High Shock		6.5 x 5.0	32.768 kHz 200 kHz to 200 MHz
CXOMKHT High Temperature		6.5 x 5.0	32.768 kHz 200 kHz to 50 MHz
LVDS		3.2 x 5.0 7.0 x 5.0	10 MHz to 160 MHz
ETXO High Frequency		7.5 x 5.0	20 MHz to 125 MHz
HTXO High Temperature		7.5 x 5.0	32.768 kHz 1.5 MHz to 50 MHz
HGXO High Shock		7.5 x 5.0	32.768 kHz to 50 MHz
HGXOHT High Shock High Temperature		7.5 x 5.0	32.768 kHz 460 kHz to 50 MHz

加利福尼亞州奧蘭治——Statek公司自豪地宣布發布其30kRad耐受性、超高沖擊、低相位噪聲石英晶體振蕩器。能夠承受震動高達100000克，CXOXLPNR封裝在3.2x2.5毫米封裝，工作溫度范圍為-55°C至+125°C。這個CXOXLPNR提供低相位噪聲、低抖動和低噪聲的低電壓CMOS輸出加速度靈敏度。在125MHz時，其本底噪聲在20MHz偏移處為-165dBc/Hz在12kHz到20MHz上的典型RMS相位抖動是75fs。提供篩選選項為了滿足所有項目的要求，CXOXLPNR將成為所有項目的首選低地球軌道（LEO）應用。

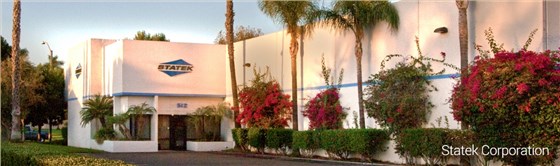

Located in Orange, California, Statek Corporation is the leading U.S. designer and manufacturer of high reliability crystals and oscillators. Statek’s core competency is its ability to design and manufacture ultra-miniature resonators in quartz wafers using its patented photolithographic and chemical milling processes. Founded in 1970, Statek has become the premier supplier of high shock and high vibration crystals and oscillators for all industries requiring high reliability and extremely robust performance. With superior shock and vibration, extended temperature ranges, small size and extreme high reliability, Statek is the supplier of choice for the Industrial, Military, Medical, and Space industries.Statek公司位于加利福尼亞州奧蘭治市，是美國領先的高可靠性晶體和有源晶體振蕩器的設計師和制造商。Statek的核心能力是利用其專利設計和制造超小型石英諧振器光刻和化學研磨工藝。Statek成立于1970年，現已成為高沖擊和高振動晶體和振蕩器的主要供應商，適用于所有需要高可靠性和極其穩健性能的行業。卓越的震動和振動、擴展的溫度范圍、小尺寸和極高的可靠性，Statek工業、軍事、醫療和航天行業的首選供應商。
