遙遙領先麥特倫皮Ku波段集成微波組件(IMA)

Ku Band Integrated Microwave Assembly (IMA)

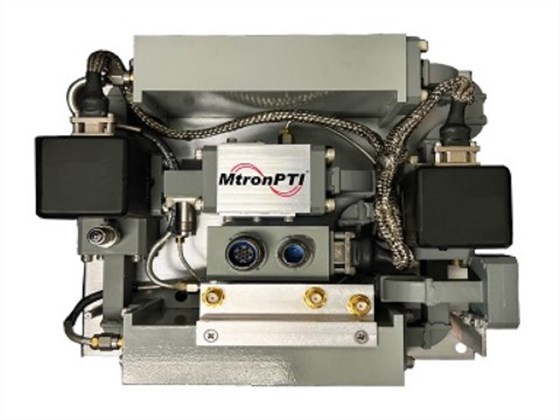

Building on the success of L, S, C, X and Ku-band multiplexers launched over the last four years, MtronPTI is now introducing a Ku-band Integrated Microwave Assembly (IMA) to support broadband communication datalinks used in applications like manned and unmanned aircraft, on the move and fixed ground stations, shipboard beyond line-of-sight wideband satellite communications and all unmanned vehicles. This integrated Ku-band microwave assembly incorporates low insertion loss, high power handling, high isolation between bands, Ku-band diplexer filters that are interconnected with two wave guide RF switches, a coupler and a low pass filter for harmonic suppression. RF cables are fed from the diplexers to a separate RF module consisting of an RF board with low noise amplifiers and an RF switch that switches the receive signal between the two paths. The module contains peripheral control and status circuitry for user access.

MtronPTI’s integrated microwave assembly design and development modeling uses the same circuit, electromagnetic, mechanical, thermal, and stress analysis tools as our customers. This allows MtronPTI’s IMAs design synthesis to be effortlessly integrated into the customer’s system synthesis at early stages in the development process. This design collaboration essentially makes MtronPTI’s design team an extension of the customer’s design team and allows our customer’s resources to focus on their areas of expertise. The end result of having MtronPTI focus on the design concept, prototype development and transition to full rate production is a shortened design cycle and getting our customer’s system to market faster.

Features:

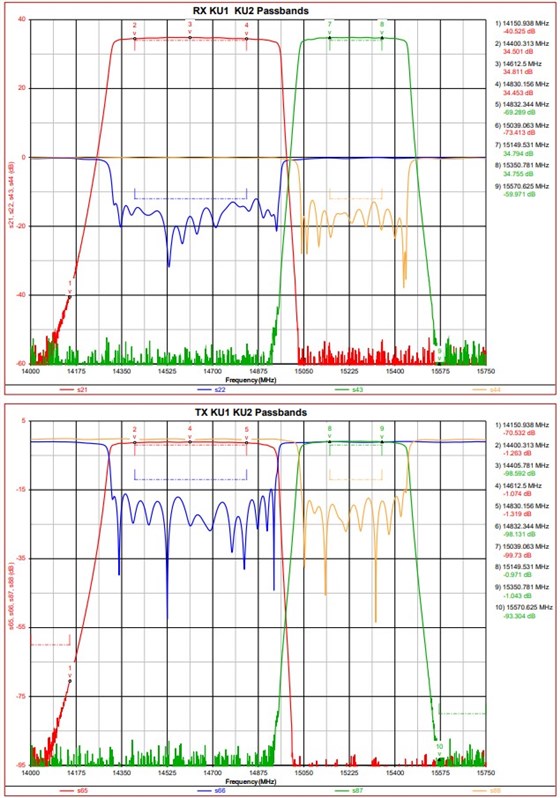

Low Insertion Loss: <2.0dB
High Power Handling: 100W CW

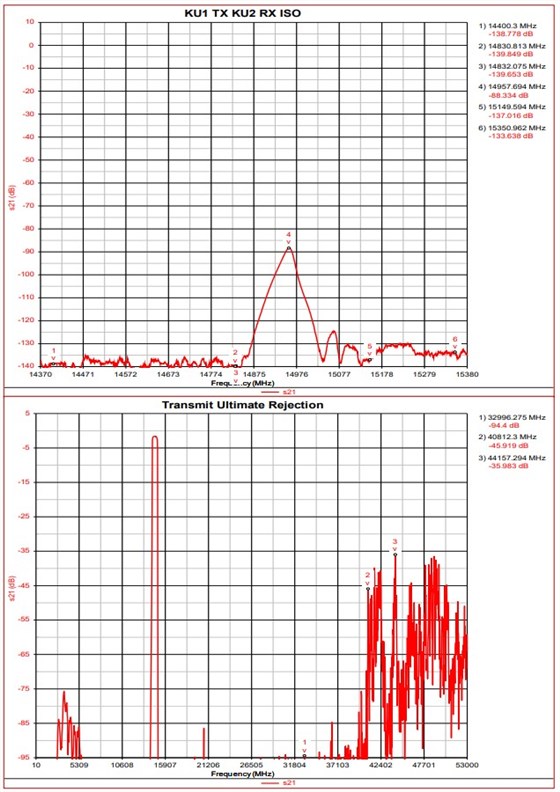

Isolation Between the bands: -125dB
Harmonic Suppression: 2nd -70dB, 3rd -25dB
IMA Noise Figure : <3.8dB
Small Size: 9x7x4 inches max
Applications:
UAS
SATCOM
EW

遙遙領先麥特倫皮Ku波段集成微波組件(IMA)

MTRONPTI麥特倫皮晶振廠家在過去四年推出的L、S、C、X和Ku波段多路復用器取得成功的基礎上，MtronPTI現在推出了Ku波段集成微波組件(IMA ),以支持在有人駕駛和無人駕駛飛機、移動和固定地面站、數碼電子晶振，船上超視距寬帶衛星通信和所有無人駕駛車輛等應用中使用的寬帶通信數據鏈。這種集成的Ku波段微波組件集成了低插入損耗、高功率處理、波段間高隔離、與兩個波導RF開關互連的Ku波段雙工器濾波器、耦合器和用于諧波抑制的低通濾波器。RF電纜從雙工器連接到一個獨立的RF模塊，該模塊由一個帶低噪聲放大器的RF板和一個在兩條路徑之間切換接收信號的RF開關組成。該模塊包含用戶訪問的外圍控制和狀態電路。
MtronPTI麥特倫皮的集成微波組件設計和開發建模使用與客戶相同的電路、電磁、機械、熱和應力分析工具。醫療產品晶振，這使得MtronPTI的IMAs設計綜合可以在開發過程的早期階段毫不費力地集成到客戶的系統綜合中。這種設計協作本質上使MtronPTI的設計團隊成為客戶設計團隊的延伸，并允許我們客戶的資源專注于他們的專業領域。讓MtronPTI專注于設計概念、原型開發和向全速生產過渡的最終結果是縮短設計周期，并讓我們客戶的系統更快上市。
小體積貼片晶振特點:
低插入損耗：< 2.0dB
高功率處理：100瓦連續波
頻帶之間的隔離：-125dB
諧波抑制：二階-70dB，三階-25dB
IMA噪聲系數：< 3.8分貝
小尺寸：最大9x7x4英寸
應用：
無人宇宙空間監視(Unmanned Aerospace Surveillance)
SatelliteCommunications（Agency）衛星通信（機構）
電子戰(Electronic Warfare)
