X1G005591029700愛普生有源晶振型號SG-8018CE25.000000MHz TJHSA

2022-09-05 16:04:24 康華爾電子

X1G005591029700愛普生有源晶振型號SG-8018CE25.000000MHz TJHSA

有源晶振選型標準：

推薦愛普生SG-8018CE為例說明有源晶振選型步驟：

1：選擇外形和尺寸,找到對應的愛普生晶振系列號(3225→SG-8018CE)

2：選擇頻點(25MHz→25.000000MHz)

3：選擇工作電壓(1.62 to 3.63 V→T)

4：選擇精度(±50ppm→J)

5：選擇溫度范圍(-40~+105℃→H)

6：第一引腳輸出待機ST(→S)

以上選定的參數為：SG-8018CE/25MHz/±50PPM/1.62 to 3.63 V/-40~+105℃,對應愛普生標準料號是X1G005591029700

型號是SG-8018CE25.000000MHz TJHSA

X1G005591029700愛普生有源晶振,SG-8018CE25.000000MHz TJHSA石英晶體振蕩器

愛普生有源晶振編碼 型號 頻率 長X寬X高 輸出波 電源電壓 工作溫度 頻差 最大值
X1G005591022400 SG-8018CE 25.175000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591022500 SG-8018CE 12.352000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591022600 SG-8018CE 20.480000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591022700 SG-8018CE 21.333000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591022800 SG-8018CE 44.236000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591022900 SG-8018CE 100.000000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤5.9mA
X1G005591023000 SG-8018CE 27.120000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591023100 SG-8018CE 30.000000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591029700 SG-8018CE 25.000000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591023400 SG-8018CE 12.500000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591023500 SG-8018CE 38.200000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591023600 SG-8018CE 16.670000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591023700 SG-8018CE 37.125000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591023800 SG-8018CE 20.480000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591023900 SG-8018CE 6.750000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591024000 SG-8018CE 24.000000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591024100 SG-8018CE 33.333000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591024200 SG-8018CE 24.545454MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤4.4mA
X1G005591024300 SG-8018CE 16.500000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591024400 SG-8018CE 3.579545MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591024500 SG-8018CE 76.500000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤5.9mA
X1G005591024600 SG-8018CE 19.800000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591024700 SG-8018CE 1.024000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591024800 SG-8018CE 14.318000MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591024900 SG-8018CE 4.915200MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤3.5mA
X1G005591025000 SG-8018CE 66.666660MHz 3.20x2.50x1.20mm CMOS 1.620to3.630V -40to105°C +/-50ppm ≤5.2mA

建議對有源晶振進行替換,可以參考上面,不過在替換時需要慎重,不同品牌生產工藝可能有較大差異,紙面參數僅具參考價值,3225有源晶振仍需通過樣品試用來測試.

常規有源晶振參數特點：

頻點范圍：1MHz~170MHz（CMOS輸出）：

通常工作電壓范圍：1.6V~3.3V

頻率穩定度：（全溫度工作范圍內）：15ppm、20ppm、25ppm、50ppm

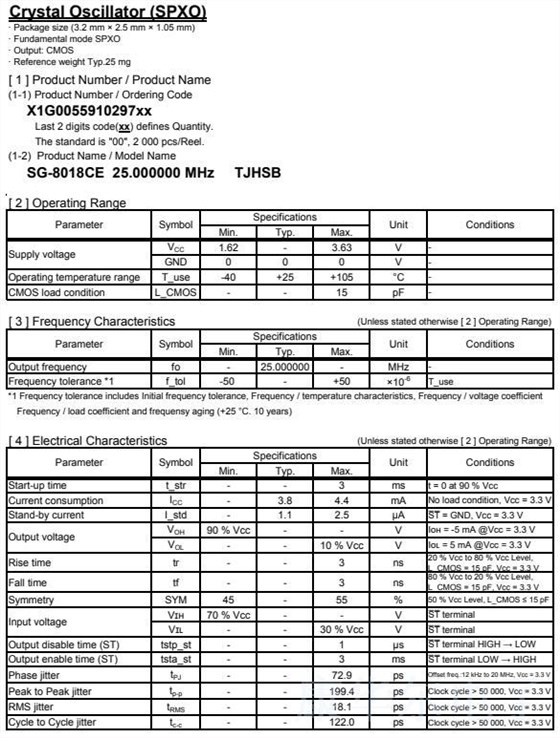

X1G005591029700愛普生有源晶振,SG-8018CE25.000000MHz TJHSA石英晶體振蕩器
