1CX40000EE1O,DSX840GA大真空晶體,40MHZ陶瓷晶振，尺寸8.0*4.5mm，頻率40MHZ，負載電容18PF，精度50ppm，日本KDS晶振，大真空無源晶振，無源諧振器，8045mm貼片晶振，陶瓷諧振器，無源晶振，SMD晶振，水晶振動子，兩腳貼片晶振，陶瓷晶振，40MHZ貼片晶體，輕薄型晶體，無鉛環保晶振，低功耗晶振，高可靠性能晶振，低損耗晶振，高品質晶振，高可靠晶振，視聽設備晶振，多媒體設備晶振，智能音響晶振，無線網絡晶振，家用電器晶振，具有低損耗高可靠的特點。
陶瓷晶振產品很適合用于視聽設備，多媒體設備，智能音響，無線網絡，家用電器等領域。1CX40000EE1O,DSX840GA大真空晶體,40MHZ陶瓷晶振.

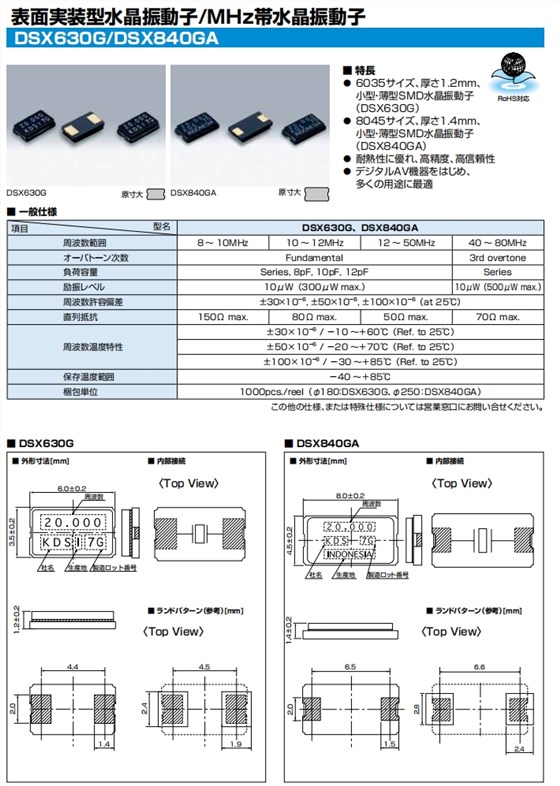

1CX40000EE1O,DSX840GA大真空晶體,40MHZ陶瓷晶振 參數表
| 項目 | 型名 | DSX630G、DSX840GA | |||||||||
| 頻率范圍 | 8 ~ 10MHz | 10~ 12MHz | 12~40MHz | 40MHz | |||||||
| 泛音階 | Fundamental | 3rd overtone | |||||||||
| 負載容量 | Series, 8pF, 10pF, 12pF | Series | |||||||||
| 激勵電平 | 10μW(300μW max.) | 10μW(500μW max.) | |||||||||
| 頻率允許偏差 | ±30×10−6, ±50×10−6, ±100×10−6(at 25℃) | ||||||||||
| 串聯電阻 | 150Ω max. | 80Ω max. | 50Ω max. | 70Ω max. | |||||||
| 頻率溫度特性 | ±30×10−6/ −10 ~＋60℃(Ref. to 25℃) | ||||||||||
| ±50×10−6/ −20 ~＋70℃(Ref. to 25℃) | |||||||||||
| ±100×10−6/ −30 ~＋85℃(Ref. to 25℃) | |||||||||||
| 保存溫度范圍 | −40~＋85℃ | ||||||||||
| 包裝單位 | 1000pcs./reel(φ180：DSX630G、φ250：DSX840GA) | ||||||||||

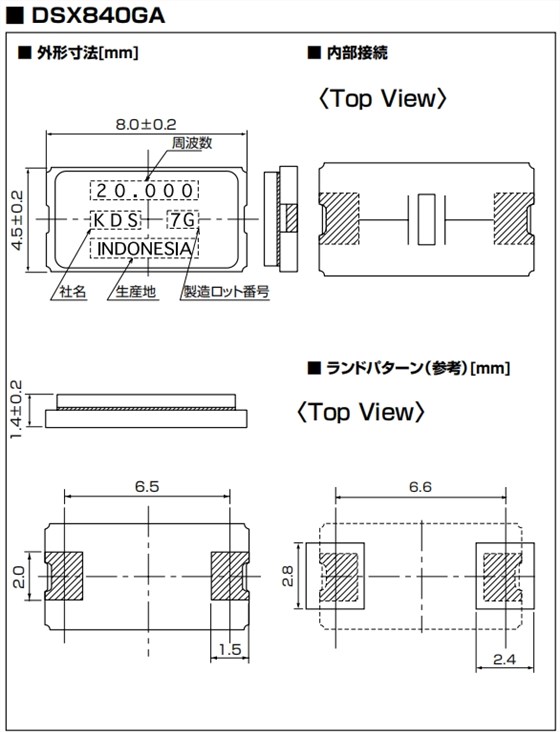

1CX40000EE1O,DSX840GA大真空晶體,40MHZ陶瓷晶振 尺寸圖
1CX40000EE1O,DSX840GA大真空晶體,40MHZ陶瓷晶振
產品特點：
8045尺寸、1.4mm厚、小型/薄型SMD晶振（DSX840GA）
耐熱性好、高精度、高可靠性
| 品牌 | 原廠代碼 | 晶振廠家型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 | 溫度 |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM | |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM | |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm | |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000M | |||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192M | 15PF | 20ppm | |
| KDS晶振 | CW08000EK3B | DSX151GAL | 11.8*5.5 | 8.000M | |||
| KDS晶振 | 1AJ039286A | SMD-49 | 3.928231M | ||||
| KDS晶振 | 1AJ040003DJ | SMD-49 | 4.000M | ||||
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM | |
| KDS晶振 | 1AJ073726AV | SMD-49 | 7.3728M | ||||
| KDS晶振 | 1AJ099976A | SMD-49 | 9.9975M | ||||
| KDS晶振 | 1AR11059CEB | SMD-49 | 11.0592M | 16PF | 30PPM | ||
| KDS晶振 | 1AJ160006BL | SMD-49 | 16.000M | ||||
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | ||||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | 30PPM | |||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF | 50PPM | |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF | 50PPM | |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM | |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM | |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF | 30PPM | |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF | 30ppm | |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | |||
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF | 30PPM | |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000M | 12.9PF | 20PPM | |
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000M | 10PF | 20PPM | |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000M | 10PF | 30PPM | |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000M | 12PF | 20PPM | |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000M | 16PF | 50PPM | |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000M | 10PF | 30ppm | |
| KDS晶振 | 1AJ270002CH | SMD-49 | 11*4.6 | 27.000M | 10PF | 20ppm | |
| KDS晶振 | 1AJ270002DT | SMD-49 | 11*4.6 | 27.000M | 12PF | 15ppm | |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400M | 12PF | 50ppm | |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893M | 10PF | 20ppm | |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF | 20ppm | |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF | 50PPM | |
| KDS晶振 | SB103CE1MM | SINGLE | |||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | ||||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm | |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm | |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | |||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM | |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm | |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | |||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm | |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | |||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | ||
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | |||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | |||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | |||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | |||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | ||
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | ||
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm | |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm | |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V | 1.5ppm | |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V | 1.5ppm | |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V | 1.5ppm | |
| KDS晶振 | 1XXD24000MBA | DSB211SDN | 2016 | 24.000M | |||
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | |||
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | |||
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | |||
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | |||
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | |||
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm | |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | |||
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | |||
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V | 1.5ppm | |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | |||
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | |||
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | |||
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | |||
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M |
