Renesas高頻晶振,4HF500000Z4AACTGI8,LVDS輸出晶體振蕩器,參數表

Parameter	2.5 V			3.3 V			Units	Conditions
	Specifications			Specifications
	Min	Typ	Max	Min	Typ	Max
Supply Voltage (VDD)	2.375	2.5	2.625	2.97	3.3	3.63	V
Output Frequency			500				MHz
Frequency Stability	-50		50	-50		50	ppm	Includes supply voltage and temperature variation (-40 to 85°C),
								reflow drift, and aging.
Supply Current		90			95		mA	No load
Enable/Disable Time			1			1	us	Guaranteed by design
Input LOW level			0.3VDD	0. 7VDD		0.3VDD	V	At OE pin
Input HIGH level	0. 7VDD		VDD-1.8			VDD-1.8	V
Output LOW level		0.8		VDD-1.1	1.5		V
Output HIGH level	VDD-1.0	1.6			2.3		V
Amplitude (VA)		0.75			0.75		V	Single Ended output swing (Pk-Pk)
Mid Level (VM)		VDD-1.3			VDD-1.3		V
Rise Time (TR)			300		250		ps	Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.
Symmetry (SYM)	48	50	52	48	50	52	%	Worst case; measured at 50% of waveform

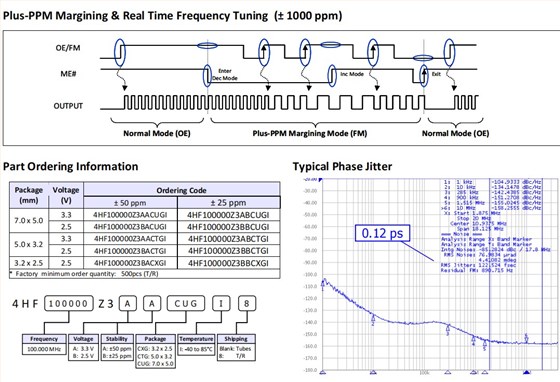

Phase Jitter		0.12			0.12			1.875MHz to 20MHz, RMS; Measured Differentially (IEEE802.3-2005)
		0.25			0.25		ps	12k to 20MHz, RMS; Measured Differentially
Period Jitter		2.5			2.5		ps	RMS
Cycle-to-Cycle Jitter		20			20		ps	1,000 cycles, Peak
Start-up Time		10			10		ms	Output valid time after power up, 25°C
Aging		± 5			± 5		ppm	25°C, 10 years

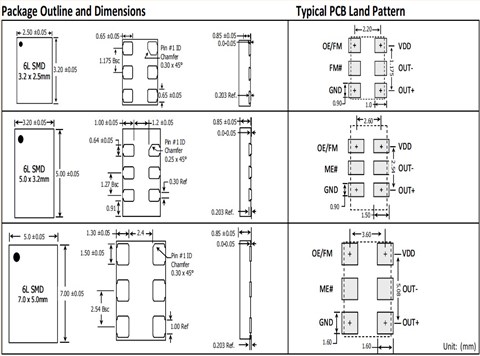

Renesas高頻晶振,4HF500000Z4AACTGI8,LVDS輸出晶體振蕩器,尺寸圖

Renesas高頻晶振,4HF500000Z4AACTGI8,LVDS輸出晶體振蕩器

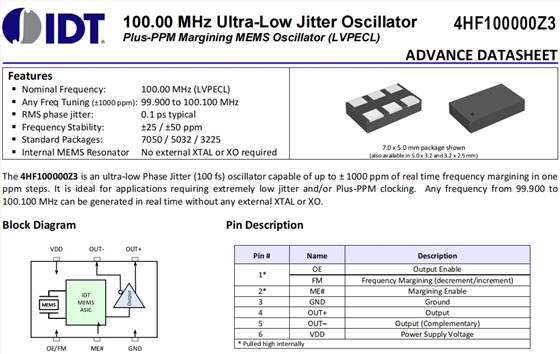

產品特點：標稱頻率： 100.00MHz（LVPECL）

任何Freq調諧（±1000ppm）： 99.900至100.100MHz

RMS相位抖動：0.1ps典型的

頻率穩定性： ± 25 / ± 50ppm

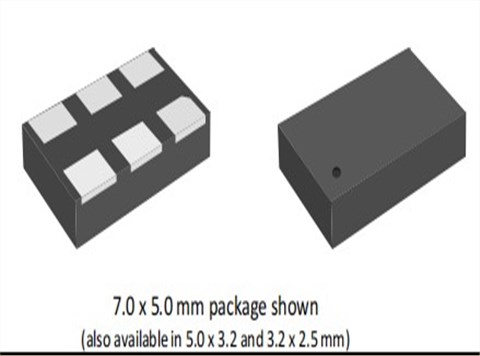

標準軟件包： 7050mm / 5032mm / 3225mm

內部MEMS諧振器不需要外部XTAL或XO石英晶體振蕩器

編碼	晶振廠家	描述	系列	頻率	輸出	電壓
4HF156250Z3BACTGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	2.5V
4HF156250Z3BACTGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	2.5V
4HF156250Z3BACUGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	2.5V
4HF156250Z3BACUGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	2.5V
4HF156250Z3BACXGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	2.5V
4HF156250Z3BACXGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	2.5V
4HF156250Z4BACTGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	2.5V
4HF156250Z4BACTGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	2.5V
4HF156250Z4BACUGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	2.5V
4HF156250Z4BACUGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	2.5V
4HF156250Z4BACXGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	2.5V
4HF156250Z4BACXGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	2.5V
4HF187510Z3AACTGI	Renesas晶振	MEMS OSC XO 187.5100MHZ LVPECL	4HF	187.51 MHz	LVPECL	3.3V
4HF187510Z3AACTGI8	Renesas晶振	MEMS OSC XO 187.5100MHZ LVPECL	4HF	187.51 MHz	LVPECL	3.3V
4HF187510Z3AACUGI	Renesas晶振	MEMS OSC XO 187.5100MHZ LVPECL	4HF	187.51 MHz	LVPECL	3.3V
4HF187510Z3AACUGI8	Renesas晶振	MEMS OSC XO 187.5100MHZ LVPECL	4HF	187.51 MHz	LVPECL	3.3V
4HF212500Z3AACTGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	3.3V
4HF212500Z3AACTGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	3.3V
4HF212500Z3AACUGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	3.3V
4HF212500Z3AACUGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	3.3V
4HF212500Z3AACXGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	3.3V
4HF212500Z3AACXGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	3.3V
4HF212500Z3BACTGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	2.5V
4HF212500Z3BACTGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	2.5V
4HF212500Z3BACUGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	2.5V
4HF212500Z3BACUGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	2.5V
4HF212500Z3BACXGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	2.5V
4HF212500Z3BACXGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVPECL	4HF	212.5 MHz	LVPECL	2.5V
4HF212500Z4AACTGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	3.3V
4HF212500Z4AACTGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	3.3V
4HF212500Z4AACUGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	3.3V
4HF212500Z4AACUGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	3.3V
4HF212500Z4AACXGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	3.3V
4HF212500Z4AACXGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	3.3V
4HF212500Z4BACTGI	石英晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	2.5V
4HF212500Z4BACTGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	2.5V
4HF212500Z4BACUGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	2.5V
4HF212500Z4BACUGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	2.5V
4HF212500Z4BACXGI	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	2.5V
4HF212500Z4BACXGI8	Renesas晶振	MEMS OSC XO 212.5000MHZ LVDS SMD	4HF	212.5 MHz	LVDS	2.5V
4HF500000Z4AACTGI	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	3.3V
4HF500000Z4AACTGI8	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	3.3V
4HF500000Z4AACUGI	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	3.3V
4HF500000Z4AACUGI8	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	3.3V
4HF500000Z4AACXGI	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	3.3V
4HF500000Z4AACXGI8	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	3.3V
4HF500000Z4BACTGI	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	2.5V
4HF500000Z4BACTGI8	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	2.5V
4HF500000Z4BACUGI	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	2.5V
4HF500000Z4BACUGI8	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	2.5V
4HF500000Z4BACXGI	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	2.5V
4HF500000Z4BACXGI8	Renesas晶振	MEMS OSC XO 500.0000MHZ LVDS SMD	4HF	500 MHz	LVDS	2.5V
4HF156253Z3ABCUGI	Renesas晶振	MEMS OSC XO 156.2530MHZ LVPECL	4HF	156.253 MHz	LVPECL	3.3V
4HF156253Z3ABCUGI8	Renesas晶振	MEMS OSC XO 156.2530MHZ LVPECL	4HF	156.253 MHz	LVPECL	3.3V
4HF200000Z3AACTGI	Renesas晶振	MEMS OSC XO 200.0000MHZ LVPECL	4HF	200 MHz	LVPECL	3.3V
4HF200000Z3AACTGI8	Renesas晶振	MEMS OSC XO 200.0000MHZ LVPECL	4HF	200 MHz	LVPECL	3.3V
4HF200000Z3AACUGI	Renesas晶振	MEMS OSC XO 200.0000MHZ LVPECL	4HF	200 MHz	LVPECL	3.3V
4HF200000Z3AACUGI8	Renesas晶振	MEMS OSC XO 200.0000MHZ LVPECL	4HF	200 MHz	LVPECL	3.3V
4HF200000Z3AACXGI	Renesas晶振	MEMS OSC XO 200.0000MHZ LVPECL	4HF	200 MHz	LVPECL	3.3V
4HF200000Z3AACXGI8	Renesas晶振	MEMS OSC XO 200.0000MHZ LVPECL	4HF	200 MHz	LVPECL	3.3V
4HF200000Z4AACTGI	Renesas晶振	MEMS OSC XO 200.0000MHZ LVDS SMD	4HF	200 MHz	LVDS	3.3V
4HF200000Z4AACTGI8	Renesas晶振	MEMS OSC XO 200.0000MHZ LVDS SMD	4HF	200 MHz	LVDS	3.3V
4HF200000Z4AACUGI	Renesas晶振	MEMS OSC XO 200.0000MHZ LVDS SMD	4HF	200 MHz	LVDS	3.3V
4HF200000Z4AACUGI8	Renesas晶振	MEMS OSC XO 200.0000MHZ LVDS SMD	4HF	200 MHz	LVDS	3.3V
4HF200000Z4AACXGI	Renesas晶振	MEMS OSC XO 200.0000MHZ LVDS SMD	4HF	200 MHz	LVDS	3.3V
4HF200000Z4AACXGI8	Renesas晶振	MEMS OSC XO 200.0000MHZ LVDS SMD	4HF	200 MHz	LVDS	3.3V
4HF156250Z3AACTGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	3.3V
4HF156250Z3AACUGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	3.3V
4HF156250Z3AACXGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz	LVPECL	3.3V
4HF156250Z4AACTGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	3.3V
4HF156250Z4AACUGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	3.3V
4HF156250Z4AACXGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVDS SMD	4HF	156.25 MHz	LVDS	3.3V
4HF614400Z4AACTGI	Renesas晶振	MEMS OSC XO 614.4000MHZ LVDS	4HF	614.4 MHz	LVDS	3.3V
4HF614400Z4AACTGI8	Renesas晶振	MEMS OSC XO 614.4000MHZ LVDS	4HF	614.4 MHz	LVDS	3.3V
