Si536有源晶振,536AB125M000DG,6G路由器晶振,Silicon差分振蕩器，尺寸7.00x5.00mm，頻率125MHZ，輸出邏輯為L(zhǎng)VPECL，電壓3.3V，頻率穩定性20ppm，腳位6-SMD，XO時鐘晶體振蕩器（標準） ，OSC晶振，貼片差分晶振，有源晶體振蕩器，LVPECL輸出晶振，LVPECL差分晶振，差分晶體振蕩器，小體積差分晶振，六腳貼片差分晶振，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，低電壓差分晶振，高質量差分晶振，路由器專用差分晶振，交換機差分晶振，網絡設備差分晶振，電信專用差分晶振，具有低功耗低抖動的特點，產品特別適用于10/40/100G數據中心，10G以太網交換機/路由器，光纖通道/SAS/存儲，企業服務器，網絡，電信等領域。

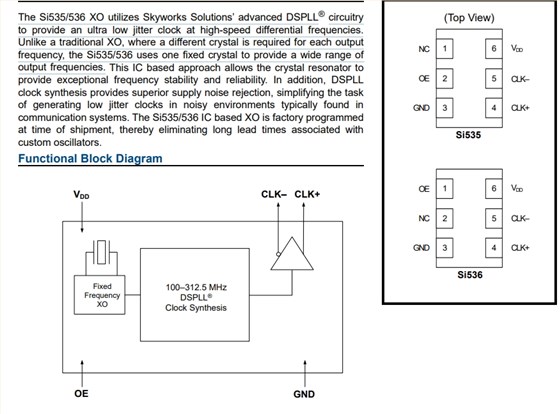

Si535/536 XO采用了Skyworks Solutions先進的DSPLL電路以在高速差分頻率下提供超低抖動時鐘。 不像傳統的XO，每個輸出需要不同的晶體頻率，Si535/536差分晶體振蕩器使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供出色的電源噪聲抑制，簡化了任務在高噪聲環境中產生低抖動時鐘，常見于通信系統。基于Si535/536 IC的XO是工廠編程，因此消除了與定制振蕩器。Si536有源晶振,536AB125M000DG,6G路由器晶振,Silicon差分振蕩器.
Si536有源晶振,536AB125M000DG,6G路由器晶振,Silicon差分振蕩器參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL LVDS |
— — |
111 90 |
121 98 |
mA | ||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 100 | — | 312.5 | MHz | ||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA= –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| LVPECL Output Option1 | VO | Mid-level | VDD– 1.42 | — | VDD– 1.25 | V | ||||||||||||||||
| VOD | Swing (diff) | 1.1 | — | 1.9 | VPP | |||||||||||||||||
| VSE | Swing (Single-ended) | 0.55 | — | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | Mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||
| VOD | Swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||
| Rise/Fall time (20/80%) | tR,tF | — | — | 350 | ps | |||||||||||||||||
| Symmetry (duty cycle) | SYM | Differential | 45 | — | 55 | % | ||||||||||||||||

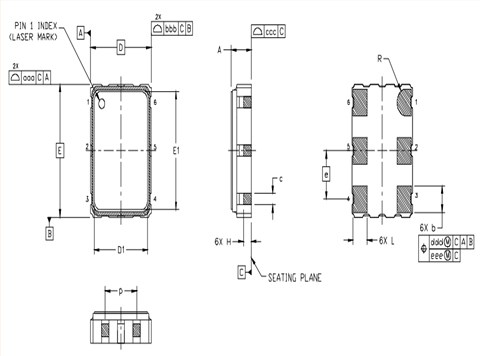

Si536有源晶振,536AB125M000DG,6G路由器晶振,Silicon差分振蕩器 尺寸圖

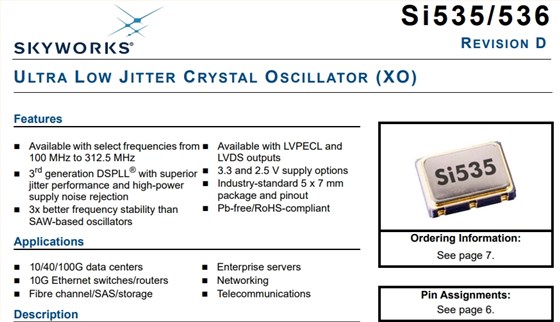

OscillatorCrystal產品特性：
可從以下頻率中選擇
100MHz至312.5MHz
集成superior的第三代DSPLL
抖動性能和高功率
電源噪聲抑制
頻率穩定性比高3倍
基于SAW的振蕩器
LVPECL和 LVDS輸出
3.3和2.5 V電源選項
行業標準5x7毫米
封裝和引腳排列
無鉛/符合RoHS標準
