SiliconCrystal,550AE100M000DGR,Si550壓控振蕩器,7050mm,100MHZ，尺寸7.0×5.0mm，頻率為100MHZ，歐美有源振蕩器，有源壓控晶振，VCXO壓控晶體振蕩器，7050mm壓控晶振，貼片壓控晶振，100MHZ壓控晶振，六腳壓控晶振，低抖動壓控晶振，低損耗壓控晶振，低電壓壓控晶振，低相位壓控晶振，低相噪壓控晶振，光學模塊壓控晶振，數據恢復應用壓控晶振，通信設備壓控晶振，具有低抖動低電壓的特點。產品很適合用于SONET/SDH，xxDSL，110 GbE LAN/WAN，低抖動時鐘生成，光學模塊，時鐘和數據恢復等應用。
Si550 VCXO利用Skyworks Solutions的先進DSPLL®電路提供高頻率的低抖動時鐘。Si550支持任何頻率從10到945MHz，并選擇頻率到1417MHz。不像傳統的VCXO晶振，其中每個輸出需要不同的晶體頻率，Si550使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。SiliconCrystal,550AE100M000DGR,Si550壓控振蕩器,7050mm,100MHZ.
SiliconCrystal,550AE100M000DGR,Si550壓控振蕩器,7050mm,100MHZ 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
|
120 108 99 90 |
130 117 108 98 |
mA | |||||||||||||||
| tristate mode | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | V | ||||||||||||||||||
| VIL | 0.5 | V | |||||||||||||||||||
| Operating Temperature Range | TA | –40 | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| Control Voltage Tuning Slope1,2,3 | KV | 10 to 90% of VDD |
|
33 45 90 135 180 356 |
|
ppm/V | |||||||||||||||
| Control Voltage Linearity4 | LVC | BSL | –5 | ±1 | +5 | % | |||||||||||||||
| Incremental | –10 | ±5 | +10 | % | |||||||||||||||||
| Modulation Bandwidth | BW | 9.3 | 10.0 | 10.7 | kHz | ||||||||||||||||
| VCInput Impedance | ZVC | 500 | kΩ | ||||||||||||||||||
| Nominal Control Voltage | VCNOM | @ fO | VDD/2 | V | |||||||||||||||||
| Control Voltage Tuning Range | VC | 0 | VDD | V | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| Nominal Frequency1,2,3 | fO | LVDS/CML/LVPECL |
|
100 |
|
MHz | |||||||||||||||
| CMOS | 10 | 160 | MHz | ||||||||||||||||||
| Temperature Stability1,4 | TA= –40 to +85 ºC |
–20 –50 –100 |
|
+20 +50 +100 |
ppm | ||||||||||||||||
| Absolute Pull Range1,4 | APR | ±12 | ±375 | ppm | |||||||||||||||||
| Aging | Frequency drift over first year. | ±3 | ppm | ||||||||||||||||||
| Frequency drift over 15 year life. | ±10 | ||||||||||||||||||||
| Power up Time5 | tOSC | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| LVPECL Output Option1 | VO | mid-level | VDD– 1.42 | VDD– 1.25 | V | ||||||||||||||||
| VOD | swing (diff) | 1.1 | 1.9 | VPP | |||||||||||||||||
| VSE | swing (single-ended) | 0.55 | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | |||||||||||||||
| VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | ||||||||||||||||
| CML Output Option2 | VO | 2.5/3.3 V option mid-level | — | VDD– 1.30 | — | V | |||||||||||||||
| 1.8 V option mid-level | — | VDD– 0.36 | — | V | |||||||||||||||||
| VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | ||||||||||||||||
| 1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | VPP | |||||||||||||||||
| CMOS Output Option3 | VOH | IOH= 32 mA | 0.8 x VDD | — | VDD | V | |||||||||||||||
| VOL | IOL= 32 mA | — | — | 0.4 | V | ||||||||||||||||
| Rise/Fall time (20/80%) | tR,tF | LVPECL/LVDS/CML | — | — | 350 | ps | |||||||||||||||
| CMOS with CL= 15 pF | — | 1 | — | ns | |||||||||||||||||
| Symmetry (duty cycle) | SYM |
LVPECL:VDD– 1.3 V (diff) LVDS:1.25 V (diff) CMOS:VDD/2 |
45 | — | 55 | % | |||||||||||||||
SiliconCrystal,550AE100M000DGR,Si550壓控振蕩器,7050mm,100MHZ尺寸圖
SiliconCrystal,550AE100M000DGR,Si550壓控振蕩器,7050mm,100MHZ

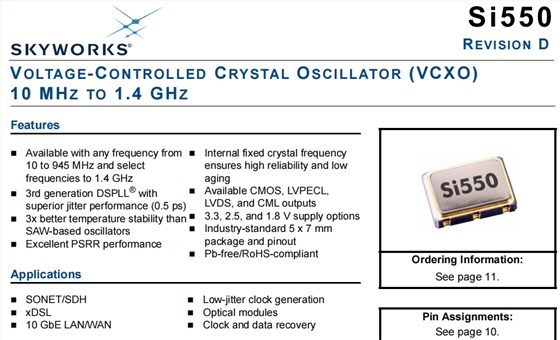

有源晶振產品特點：
可用于的任何頻率
10至945MHz，然后選擇頻率至1.4GHz
第三代DSPLL®卓越的抖動性能（0.5ps）
溫度穩定性是SAW振蕩器
出色的PSRR性能
內部固定晶體頻率
確保高可靠性和低成本
變老
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7mm包裝和引腳
無鉛/符合RoHS
| Manufacturer Part Number原廠代碼 | 歐美晶振品牌 | Series型號 | Frequency 頻率 | Voltage - Supply電壓 | Frequency Stability頻率穩定度 |
| 531BB125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±20ppm |
| 531FB200M000DG | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±20ppm |
| 531FC250M000DG | Silicon振蕩器 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531FB125M000DG | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±20ppm |
| 531BC000110DG | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531BC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC250M000DG | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531BC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FB106M250DG | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±20ppm |
| 531AC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531BC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531AC155M520DG | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531BC155M520DG | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531FC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC622M080DG | Silicon振蕩器 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531AC312M500DG | Silicon振蕩器 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531AC106M250DG | Silicon振蕩器 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC106M250DG | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531BC187M500DG | Silicon振蕩器 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC155M520DG | Silicon振蕩器 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531AC187M500DG | Silicon振蕩器 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC187M500DG | Silicon振蕩器 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531EC000110DG | Silicon振蕩器 | Si531 | 148.35165MHz | 2.5V | ±7ppm |
| 531EC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531FC155M520DG | Silicon振蕩器 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531EC156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531AC311M040DG | Silicon振蕩器 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531BC311M040DG | Silicon振蕩器 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531EC311M040DG | Silicon振蕩器 | Si531 | 311.04MHz | 2.5V | ±7ppm |
| 531EC622M080DG | Silicon振蕩器 | Si531 | 622.08MHz | 2.5V | ±7ppm |
| 531FC622M080DG | Silicon振蕩器 | Si531 | 622.08MHz | 2.5V | ±7ppm |
| 531FC311M040DG | Silicon振蕩器 | Si531 | 311.04MHz | 2.5V | ±7ppm |
| 531BC622M080DG | Silicon振蕩器 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531FC312M500DG | Silicon振蕩器 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531EC312M500DG | Silicon振蕩器 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531AC250M000DG | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531EC250M000DG | Silicon振蕩器 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531BC312M500DG | Silicon振蕩器 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531AA156M250DG | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±50ppm |
| 531BC106M250DG | Silicon振蕩器 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC125M000DG | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC106M250DG | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC187M500DG | Silicon振蕩器 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531FC000110DG | Silicon振蕩器 | Si531 | 148.35165MHz | 2.5V | ±7ppm |
| 531EC200M000DG | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC000110DG | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531AC148M500DG | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 550CD74M2500DGR | Silicon振蕩器 | Si550 | 74.25MHz | 3.3V | ±50ppm |
| 531AC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531BC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531EC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC125M000DGR | Silicon振蕩器 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531AC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531BC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC106M250DGR | Silicon振蕩器 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC25M0000DGR | Silicon振蕩器 | Si531 | 25MHz | 2.5V | ±7ppm |
| 531AC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531AC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531BC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531BC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531EC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531EC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC155M520DGR | Silicon振蕩器 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531FC156M250DGR | Silicon振蕩器 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531AC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531BC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531FC187M500DGR | Silicon振蕩器 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531AC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531AC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531AC200M000DGR | Silicon Crystal | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 531BC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531BC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531EC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 2.5V | ±7ppm |
| 531EC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531EC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531FC000110DGR | Silicon振蕩器 | Si531 | 148.35165MHz | 2.5V | ±7ppm |
| 531FC148M500DGR | Silicon振蕩器 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531FC200M000DGR | Silicon振蕩器 | Si531 | 200MHz | 2.5V | ±7ppm |
| 550AE100M000DGR | Silicon振蕩器 | Si550 | 100MHz | 3.3V | ±20ppm |
| 550AE100M000DG | Silicon振蕩器 | Si550 | 100MHz | 3.3V | ±20ppm |
| 531AC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531BC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531EC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531FC312M500DGR | Silicon振蕩器 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531AC250M000DGR | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531AC311M040DGR | Silicon振蕩器 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531AC622M080DGR | Silicon振蕩器 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531BC250M000DGR | Silicon振蕩器 | Si531 | 250MHz | 3.3V | ±7ppm |
