9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體，臺灣TXC晶振，晶技晶振，型號：9HT9系列，編碼為：9HT9-32.768KDZF-T，負載電容：12.5pF，精度：±20ppm，頻率為：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：4.1x1.5mm封裝，音叉表晶，兩腳貼片晶振，石英晶體，SMD晶振，手表晶體，無源晶振，4115mm晶振，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：無線應用晶振、移動通信晶振，無線局域網，鐘表電子晶振，電腦主板晶振，智能家居晶振，數字顯示晶振，智能手機設備，電話機等應用。

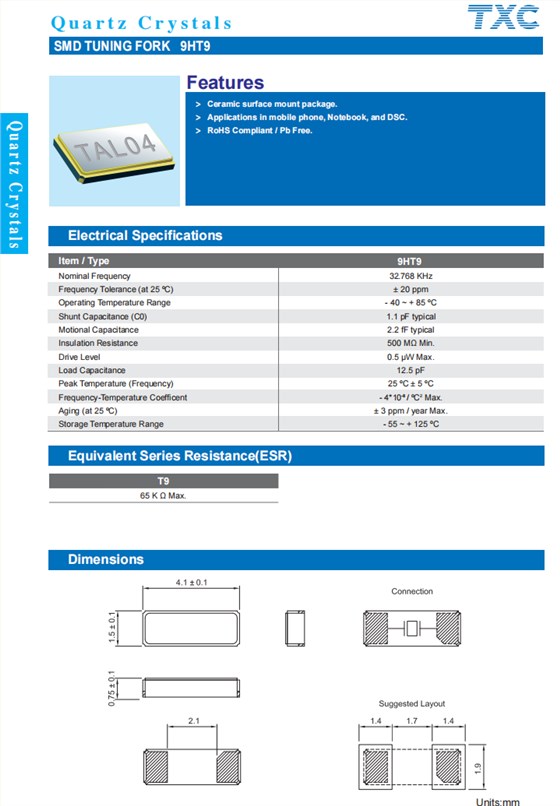

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體,參數表

Item / Type	9HT9
Nominal Frequency	32.768 KHz
Frequency Tolerance (at 25 ℃)	± 20 ppm
Operating Temperature Range	- 40 ~ + 85 ℃
Shunt Capacitance (C0)	1.1 pF typical
Motional Capacitance	2.2 fF typical
Insulation Resistance	500 MΩ Min.
Drive Level	0.5 μW Max.
Load Capacitance	12.5 pF
Peak Temperature (Frequency)	25 ℃ ± 5 ℃
Frequency-Temperature Coefficent	- 4*10-8 / ℃2Max.
Aging (at 25 ℃)	± 3 ppm / year Max.
Storage Temperature Range	- 55 ~ + 125 ℃

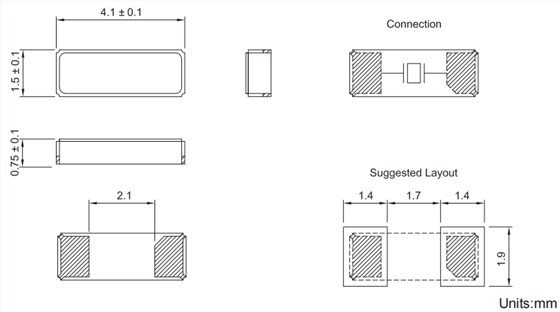

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體,尺寸圖

原廠編碼	晶振廠家	型號	頻率	工作溫度
9HT7-32.768KDZF-T	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
9HT10-32.768KBZF-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KDZF-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KEZF-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT11-32.768KDZF-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KDZC-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KEZC-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT10-32.768KAZF-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
AH-32.768KDZF-T	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
9HT7-32.768KBZF-T	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
AH-32.768KDZB-T	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
9HT10-32.768KBZB-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT7-32.768KAZY-T	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
9HT10-32.768KBZC-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KBZY-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KAZB-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KAZC-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KAZY-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KDZB-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KDZY-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9HT10-32.768KDZC-T	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
AH-32.768KBZF-T	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
9HT11-32.768KBZY-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KBZF-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KBZC-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KBZB-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KAZB-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KAZC-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KAZY-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
AH-32.768KDZY-T	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
AH-32.768KDZC-T	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
9HT11-32.768KDZB-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KDZY-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT12-32.768KBZF-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KBZY-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KBZC-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KAZF-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KAZY-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KAZC-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KDZF-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KDZY-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT12-32.768KDZC-T	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT7-32.768KBZY-T	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
9HT7-32.768KDZY-T	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
9HT7-32.768KAZF-T	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
9H03200413	TXC晶振	9HT7	32.768kHz	-40°C ~ 85°C
9H03270036	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200019	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200031	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200042	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03220005	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03220008	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03220009	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03270011	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03270040	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03270052	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03270059	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03277003	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03277005	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200036	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200021	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200034	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200022	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03200033	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03270024	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
9H03270042	TXC晶振	9HT10	32.768kHz	-40°C ~ 85°C
AH-32.768KAZF-T	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
9HT11-32.768KAZF-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9HT11-32.768KEZF-T	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
AH03200003	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
AH03270003	TXC晶振	AH	32.768kHz	-40°C ~ 85°C
AH03270004	TXC晶振	AH	32.768kHz	-40°C ~ 125°C
9H03200012	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9H03270022	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9H03270030	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9H03200010	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9H03270033	TXC晶振	9HT11	32.768kHz	-40°C ~ 85°C
9H03200030	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9H03270047	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9H03270049	TXC晶振	9HT12	32.768kHz	-40°C ~ 85°C
9HT9-32.768KDZF-T	TXC晶振	9HT9	32.768kHz	-40°C ~ 85°C
9HT9-32.768KBZF-T	TXC晶振	9HT9	32.768kHz	-40°C ~ 85°C
9HT9-32.768KAZF-T	TXC晶振	9HT9	32.768kHz	-40°C ~ 85°C
