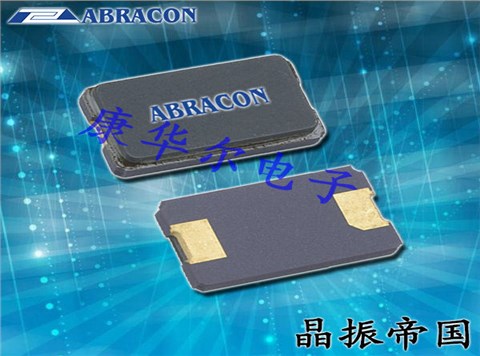

ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7,尺寸為6035mm,頻率為25MHZ，美國艾博康晶振，進口無源晶體，貼片晶振，陶瓷諧振器，音叉晶體，水晶振動子，6035mm無源諧振器，低損耗晶振，高質量晶振，電腦專用晶振，調制解調器晶振，通訊設備晶振，輕薄型設備晶振，工業應用晶振。
SMD晶振產品主要應用范圍：電腦，調制解調器，通訊設備，輕薄型設備，工業廣泛的溫度應用等領域。ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7.

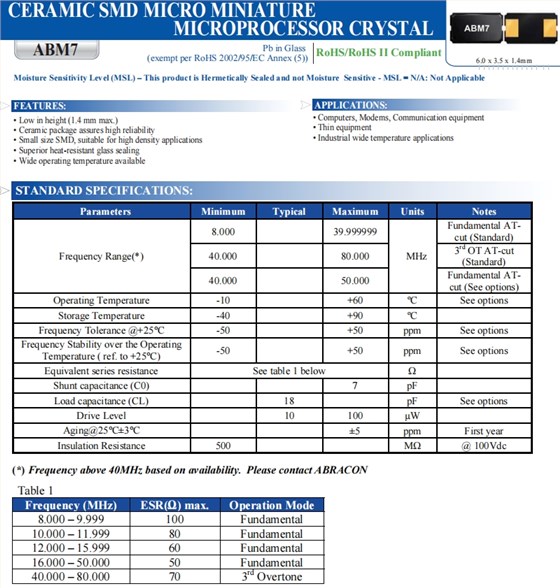

ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7 參數表
| Parameters | Minimum | Typical | Maximum | Units | Notes |
| 8 | 39.999999 | FundamentalAT-cut(Standard) | |||
| 40 | 80 | 3rdOTAT-cut(Standard) | |||
| FrequencyRange(*) | 40 | 50 | MHz | FundamentalAT-cut(Seeoptions) | |
| OperatingTemperature | -10 | 60 | ºC | See options | |
| Storage Temperature | -40 | 90 | ºC | ||
| FrequencyTolerance@+25°C | -50 | 50 | ppm | See options | |
| FrequencyStabilityovertheOperating | -50 | 50 | ppm | See options | |
| Temperature(ref.to+25°C) | |||||
| Equivalentseries resistance | See table 1 below | Ω | |||
| Shuntcapacitance(C0) | 7 | pF | |||
| Loadcapacitance(CL) | 18 | pF | Seeoptions | ||
| DriveLevel | 10 | 100 | µW | ||
| Aging@25°C±3°C | ±5 | ppm | First year | ||
| InsulationResistance | 500 | MΩ | @100Vdc | ||

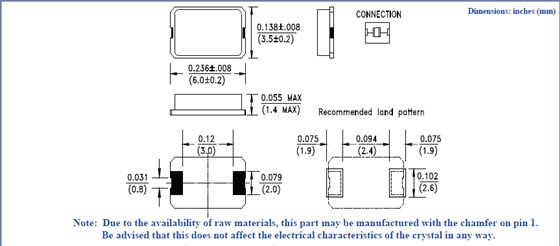

ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7尺寸圖
特點
高度低(最大1.4毫米)
•陶瓷封裝確保高可靠性
•小尺寸貼片，適合高密度應用
•優越的耐熱玻璃密封
•工作溫度范圍廣
更多相關美國艾博康晶振型號
| 歐美晶振原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| ABM7-8.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 8MHz |
| ABM7-25.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 25MHz |
| ABM7-14.7456MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 14.7456MHz |
| ABM7-12.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 12MHz |
| ABM7-20.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 20MHz |
| ABM7-16.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 16MHz |
| ABM7-24.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 24MHz |
| ABM7-16.000MHZ-4-T | Abracon晶振 | ABM7 | MHz Crystal | 16MHz |
| ABM7-14.7456MHZ-B4-T | Abracon晶振 | ABM7 | MHz Crystal | 14.7456MHz |
| ABM7-48.000MHZ-S-B-4-Y-T | Abracon晶振 | ABM7 | MHz Crystal | 48MHz |
| ABM7-10.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 10MHz |
| ABM7-19.6608MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 19.6608MHz |
| ABM7-48.000MHZ-D2Y-F-T | Abracon晶振 | ABM7 | MHz Crystal | 48MHz |
| ABM7-9.8304MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 9.8304MHz |
| ABM7-14.31818MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 14.31818MHz |
| ABM7-11.2896MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 11.2896MHz |
| ABM7-27.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 27MHz |
| ABM7-13.560MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 13.56MHz |
| ABM7-40.000MHZ-D2Y-F-T | Abracon晶振 | ABM7 | MHz Crystal | 40MHz |
| ABM7-11.0592MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 11.0592MHz |
| ABM7-22.1184MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 22.1184MHz |
| ABM7-30.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 30MHz |
| ABM7-18.432MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 18.432MHz |
| ABM7-13.560MHZ-10-R50-D4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 13.56MHz |
| ABM7-20.000MHZ-B4-T | Abracon晶振 | ABM7 | MHz Crystal | 20MHz |
| ABM7-32.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 32MHz |
| ABM7-33.000MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 33MHz |
| ABM7-24.576MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 24.576MHz |
| ABM7-12.288MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 12.288MHz |
| ABM7-13.52127MHZ-10-R50-D4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 13.52127MHz |
| ABM7-9.81563MHZ-10-R50-D4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 9.81563MHz |
| ABM7-14.31818MHZ-S-B-4-Y-T | Abracon晶振 | ABM7 | MHz Crystal | 14.31818MHz |
| ABM7-12.000MHZ-B4-T | Abracon晶振 | ABM7 | MHz Crystal | 12MHz |
| ABM7-25.000MHZ-B4-T | 美國艾博康晶振 | ABM7 | MHz Crystal | 25MHz |
| ABM7-29.4912MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 29.4912MHz |
| ABM7-9.84375MHZ-10-R50-D4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 9.84375MHz |
| ABM7-12.500MHZ-D2Y-T | Abracon晶振 | ABM7 | MHz Crystal | 12.5MHz |
| ABM7-50.000MHZ-D2Y-F-T | Abracon晶振 | ABM7 | MHz Crystal | 50MHz |
| ABM7-13.560MHZ-10-R50-K4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 13.56MHz |
| ABM7-9.84375MHZ-10-R50-K4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 9.84375MHz |
| ABM7-13.52127MHZ-10-R50-J4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 13.52127MHz |
| ABM7-9.81563MHZ-10-R50-J4Q-T | Abracon晶振 | ABM7 | MHz Crystal | 9.81563MHz |
