CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振，尺寸7.0×5.0mm，頻率155.52MHZ，電壓3.3V，支持輸出LVPECL，美國Raltron晶振，拉隆有源晶振，歐美進口晶振，石英差分振蕩器，石英晶體振蕩器，7050mm有源晶振，六腳差分晶振，LV-PECL差分晶振，差分晶體振蕩器，OSC差分晶振，低電壓差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，低耗能差分晶振，無線路由器專用差分晶振，服務器差分晶振，移動通信差分晶振，智能家居差分晶振，物聯網差分晶振，具有低相位相噪的特點。
差分晶振產品很適合用于無線路由器，服務器，移動通信，智能家居，物聯網等領域。CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振.

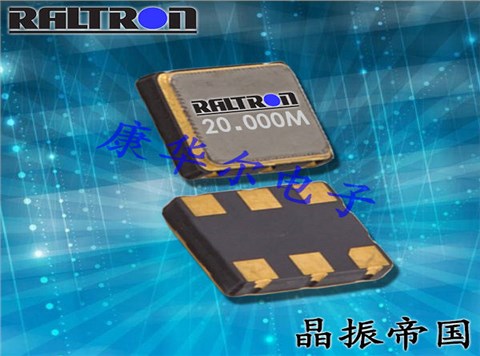

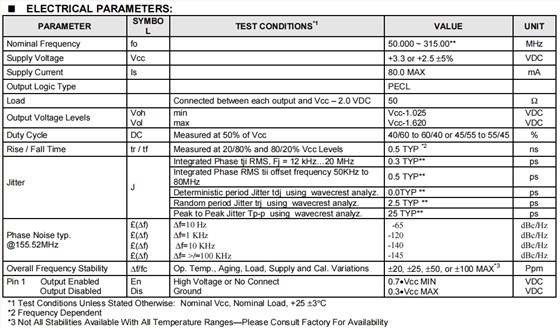

CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振 參數表
| PARAMETER |
SYMBO L |
TEST CONDITIONS*1 | VALUE | UNIT | |||||||
| Nominal Frequency | fo | 155.520** | MHz | ||||||||
| Supply Voltage | Vcc | +3.3 or +2.5±5% | VDC | ||||||||
| Supply Current | Is | 80.0 MAX | mA | ||||||||
| Output Logic Type | PECL | ||||||||||
| Load | Connected between each output and Vcc – 2.0 VDC | 50 | Ω | ||||||||
| Output Voltage Levels |
Voh Vol |
min max |
Vcc-1.025 Vcc-1.620 |
VDC VDC |
|||||||
| Duty Cycle | DC | Measured at 50% of Vcc | 40/60 to 60/40 or 45/55 to 55/45 | % | |||||||
| Rise / Fall Time | tr / tf | Measured at 20/80% and 80/20% Vcc Levels | 0.5 TYP*2 | ns | |||||||
| Jitter | J | Integrated Phase tji RMS, Fj = 12 kHz…20 MHz | 0.3 TYP** | ps | |||||||
|
Integrated Phase RMS tii offset frequency 50KHz to 80MHz |
0.5 TYP** | ps | |||||||||
| Deterministic period Jitter tdjusingwavecrest analyz. | 0.0TYP ** | ps | |||||||||
| Random period Jitter trjusingwavecrest analyz. | 2.5 TYP ** | ps | |||||||||
| Peak to Peak Jitter Tp-pusingwavecrest analyz. | 25 TYP** | ps | |||||||||
|
Phase Noise typ. @155.52MHz |
£(Δf) £(Δf) £(Δf) £(Δf) |
Δf=10 Hz Δf=1 KHz Δf=10 KHz Δf=>/=100 KHz |
-65 -120 -140 -145 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
|||||||
| Overall Frequency Stability | Δf/fc | Op. Temp., Aging, Load, Supply and Cal. Variations | ±20,±25,±50, or±100 MAX*3 | Ppm | |||||||
|
Pin 1Output Enabled Output Disabled |
En Dis |
High Voltage or No Connect Ground |
0.7.Vcc MIN 0.3.Vcc MAX |
VDC VDC |
|||||||

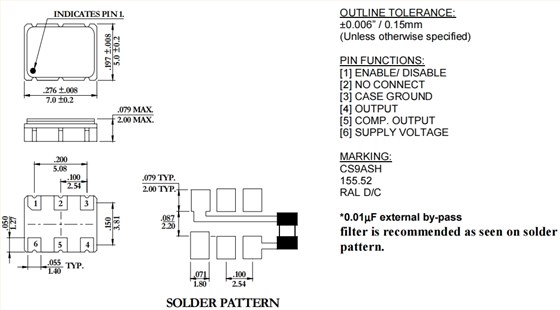

CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振 尺寸圖
CS9TVH-155.52,CS9時鐘振蕩器,拉隆無線路由器晶振

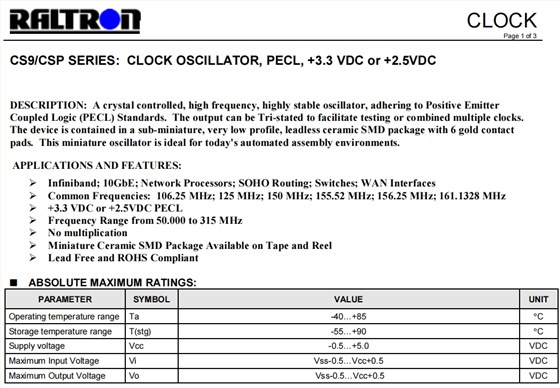

差分貼片晶振產品特點：
Infiniband；10GbE；網絡處理器；SOHO路由；開關；WAN接口
“常用頻率：106.25 MHz；125 MHz；150 MHz；155.52 MHz；156.25 MHz；161.1328 MHz
“+3.3 VDC或+2.5 VDC PECL
“頻率范圍從50.000到315 MHz
“沒有乘法
“微型陶瓷SMD封裝可用于磁帶和卷軸
“無鉛且符合ROHS
