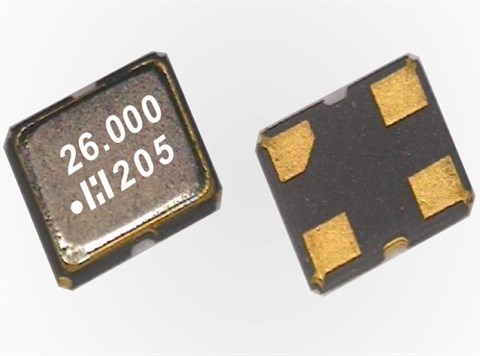

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振，臺灣Hosonic晶振，鴻星晶振，型號：D2SX系列貼片晶振，編碼為：D2SX40E000001E，頻率為：40MHz，電源電壓：3.3V，頻率穩定性：±25ppm，OSC振蕩器，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：2.5x2.0x0.9mm，四腳貼片晶振，有源晶振，2520石英晶振，石英晶體振蕩器，SMD晶振，具有超小型晶振，輕薄型晶振，高可靠性晶振，高品質晶振，耐熱及耐環境等特點。應用程序：家庭安全設備，通訊設備，無線網絡晶振，藍牙模塊晶振，導航晶振，醫療設備，數碼電子等應用。

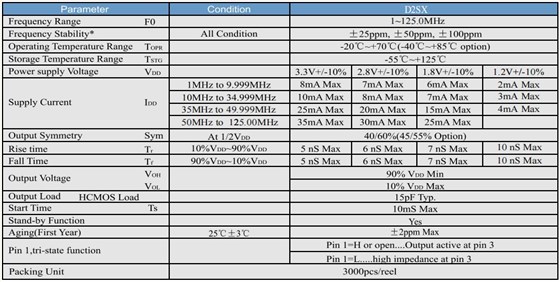

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振,參數表

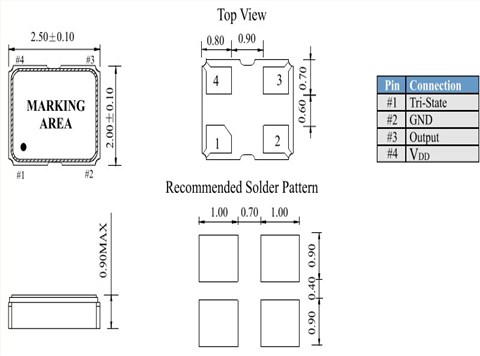

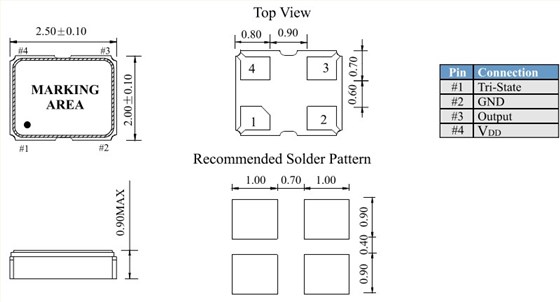

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振,尺寸圖
| 產品編碼 | 小體積貼片晶振 | 系列 | 頻率 | 電源電壓 | 頻率穩定性 |
| D3SX00327000ME | Hosonic鴻星 | D3SX | 32.768 kHz | 1.8V | ±25ppm |
| D2SX003270004E | Hosonic鴻星 | D2SX | 32.768 kHz | 1.8V | ±25ppm |
| D7SX4E000000UE | Hosonic鴻星 | D7SX | 4MHz | 3.3V | ±50ppm |
| D2SX25E00000BE | Hosonic鴻星 | D2SX | 25MHz | 3.3V | ±25ppm |
| D3SX38E0X0003E | Hosonic鴻星 | D3SX | 38.4MHz | 3.3V | ±25ppm |
| D3SX12E0X000BE | Hosonic鴻星 | D3SX | 12.288MHz | 1.8V | 15pF |
| D3SX12E00000HE | Hosonic鴻星 | D3SX | 12MHz | 3.3V | ±25ppm |
| D3SX24E000001E | Hosonic鴻星 | D3SX | 24MHz | 3.3V | ±25ppm |
| D3SX100E00007E | Hosonic鴻星 | D3SX | 100MHZ | 3.3V | ±30ppm |
| D3SX50E000002E | Hosonic鴻星 | D3SX | 50MHZ | 3.3V | ±30ppm |
| D3SX20E000001E | Hosonic鴻星 | D3SX | 20MHz | 3.3V | ±25ppm |
| D2SX100E00003E | Hosonic鴻星 | D2SX | 100MHz | 1.8V | ±25ppm |
| D2SX50E000009E | Hosonic鴻星 | D2SX | 50MHz | 3.3V | ±25ppm |
| D3SX40E00000EE | Hosonic鴻星 | D3SX | 40MHz | 3.3V | ±25ppm |
| D2SX40E000001E | Hosonic鴻星 | D2SX | 40MHz | 3.3V | ±25ppm |
| D3SX25E000006E | Hosonic鴻星 | D3SX | 25MHz | 3.3V | ±25ppm |
| D2SX20E000000E | Hosonic鴻星 | D2SX | 20MHZ | 3.3V | ±30ppm |
| D36B62.5000NNS | Hosonic鴻星 | HXO-36 | 62.5MHz | 3.3V | ±50ppm |
| D36B3.68640NNS | Hosonic鴻星 | HXO-36 | 3.6864MHz | 3.3V | ±50ppm |
| D36B4.00000NNS | Hosonic鴻星 | HXO-36 | 4MHz | 3.3V | ±50ppm |
| D36B6.00000NNS | Hosonic鴻星 | HXO-36 | 6MHz | 3.3V | ±50ppm |
| D36B8.00000NNS | Hosonic鴻星 | HXO-36 | 8MHz | 3.3V | ±50ppm |
| D36B10.0000NNS | Hosonic鴻星 | HXO-36 | 10MHz | 3.3V | ±50ppm |
| D36B12.0000NNS | Hosonic鴻星 | HXO-36 | 12MHz | 3.3V | ±50ppm |
| D36B14.3181NNS | Hosonic鴻星 | HXO-36 | 14.3181MHz | 3.3V | ±50ppm |
| D36B14.7456NNS | Hosonic鴻星 | HXO-36 | 14.7456MHz | 3.3V | ±50ppm |
| D36B16.0000NNS | Hosonic鴻星 | HXO-36 | 16MHz | 3.3V | ±50ppm |
| D36B18.4320NNS | Hosonic鴻星 | HXO-36 | 18.432MHz | 3.3V | ±50ppm |
| D36B20.0000NNS | Hosonic鴻星 | HXO-36 | 20MHz | 3.3V | ±50ppm |
| D36B24.0000NNS | Hosonic鴻星 | HXO-36 | 24MHz | 3.3V | ±50ppm |
| D36B24.5760NNS | Hosonic鴻星 | HXO-36 | 24.576MHz | 3.3V | ±50ppm |
| D36A25.0000WTS | 有源晶振 | HXO-36 | 25MHz | 3.3V | ±50ppm |
| D36B27.0000NNS | Hosonic鴻星 | HXO-36 | 27MHz | 3.3V | ±50ppm |
| D36B33.0000NNS | Hosonic鴻星 | HXO-36 | 30MHz | 3.3V | ±50ppm |
| D36B33.3330NNS | Hosonic鴻星 | HXO-36 | 33.333MHz | 3.3V | ±50ppm |
| D36B48.0000NNS | Hosonic鴻星 | HXO-36 | 48MHz | 3.3V | ±50ppm |
| D36B50.0000NNS | Hosonic鴻星 | HXO-36 | 50MHz | 3.3V | ±50ppm |
| D36B66.0000NNS | Hosonic鴻星 | HXO-36 | 66MHz | 3.3V | ±50ppm |
| D36B100.000NNS | Hosonic鴻星 | D36B | 100MHz | 3.3V | ±50ppm |
| D36B125.0000NTS | Hosonic鴻星 | D36B | 125MHz | 2.5V | ±50ppm |
| D56A25.0000WTS | Hosonic鴻星 | HXO-56 | 25 MHz | 3.3V | ±50ppm |
| D56A30.0000MTS | Hosonic鴻星 | HXO-56 | 30Mhz | 3.3V | ±50ppm |
| D56B12.0000NNS | Hosonic鴻星 | HXO-56 | 12 MHz | 3.3V | ±50ppm |
| D56B14.7456NNS | Hosonic鴻星 | HXO-56 | 14.745MHz | 3.3V | ±50ppm |
| D56B16.0000NNS | Hosonic鴻星 | HXO-56 | 16 MHz | 3.3V | ±50ppm |
| D56B24.0000NNS | Hosonic鴻星 | HXO-56 | 24 MHz | 3.3V | ±50ppm |
| D56B25.0000NNS | Hosonic鴻星 | HXO-56 | 25 MHz | 3.3V | ±50ppm |
| D56B33.0000WTS | Hosonic鴻星 | HXO-56 | 33MHz | 3.3V | ±50ppm |
| D56B50.0000NNS | Hosonic鴻星 | HXO-56 | 50 MHz | 3.3V | ±50ppm |
| DSCB4.91520NNS | Hosonic鴻星 | HXO-SC | 4.9152MHZ | 3.3V | ±50ppm |
| DSCB14.3181NNS | Hosonic鴻星 | HXO-SC | 14.3181MHZ | 3.3V | ±50ppm |
| DSCB20.0000NNS | Hosonic鴻星 | HXO-SC | 20 MHz | 3.3V | ±50ppm |
| DSCB24.0000NNS | Hosonic鴻星 | HXO-SC | 24 MHz | 3.3V | ±50ppm |
| DSCB25.0000NNS | Hosonic鴻星 | HXO-SC | 25 MHz | 3.3V | ±50ppm |
| DSCB27.0000NNS | Hosonic鴻星 | HXO-SC | 27 MHz | 3.3V | ±50ppm |
