AEL艾爾8038晶體,ELS25收音機晶振,ELS25-32.768kHz-6-2-T，尺寸8.0x3.8mm，頻率32.768KHZ，歐美進口晶振，英國AEL晶振，32.768KHZ無源晶振，無源貼片晶振，陶瓷晶振，無源晶振，SMD晶振，32.768KHZ音叉晶體，8038mm貼片晶振，陶瓷諧振器，環保晶振，高性能晶振，高可靠晶振，低損耗晶振，低功耗晶振，收音機專用晶振，數字顯示晶振，計時器晶振，無線模塊晶振，電話機晶振，小型設備晶振，具有高性能低損耗的特點。
32.768K晶振產品特別適合用于收音機，數字顯示，計時器，無線模塊，電話機，小型設備等應用。AEL艾爾8038晶體,ELS25收音機晶振,ELS25-32.768kHz-6-2-T.

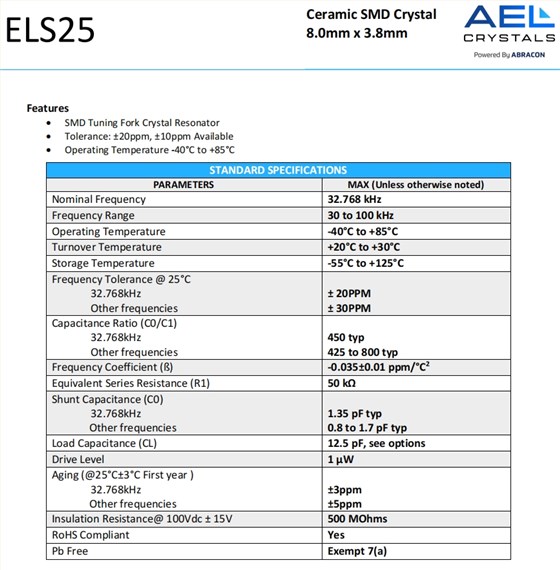

AEL艾爾8038晶體,ELS25收音機晶振,ELS25-32.768kHz-6-2-T 參數表
| STANDARD SPECIFICATIONS | |||||||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||||||||
| Nominal Frequency | 32.768 kHz | ||||||||||||||||||||
| Frequency Range | 30 to 100 kHz | ||||||||||||||||||||
| Operating Temperature | -40°C to +85°C | ||||||||||||||||||||
| Turnover Temperature | +20°C to +30°C | ||||||||||||||||||||
| Storage Temperature | -55°C to +125°C | ||||||||||||||||||||
|
Frequency Tolerance @ 25°C 32.768kHz Other frequencies |
± 20PPM ± 30PPM |
||||||||||||||||||||
|
Capacitance Ratio (C0/C1) 32.768kHz Other frequencies |
450 typ 425 to 800 typ |
||||||||||||||||||||
| Frequency Coefficient (?) | -0.035±0.01 ppm/°C2 | ||||||||||||||||||||
| Equivalent Series Resistance (R1) | 50 k? | ||||||||||||||||||||
|
Shunt Capacitance (C0) 32.768kHz Other frequencies |
1.35 pF typ 0.8 to 1.7 pF typ |
||||||||||||||||||||
| Load Capacitance (CL) | 12.5 pF, see options | ||||||||||||||||||||
| Drive Level | 1 μW | ||||||||||||||||||||
|
Aging (@25°C±3°C First year ) 32.768kHz Other frequencies |
±3ppm ±5ppm |
||||||||||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | ||||||||||||||||||||
| RoHS Compliant | Yes | ||||||||||||||||||||
| Pb Free | Exempt 7(a) | ||||||||||||||||||||

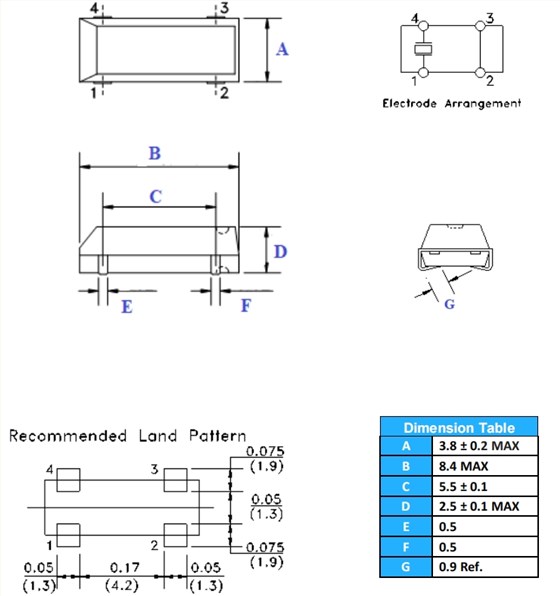

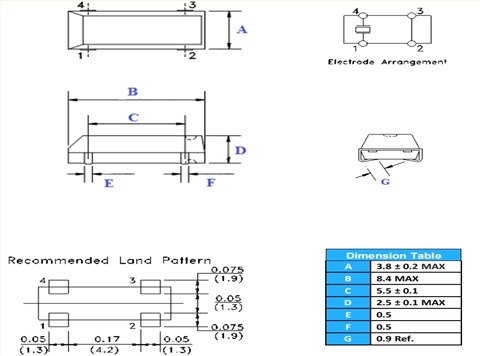

AEL艾爾8038晶體,ELS25收音機晶振,ELS25-32.768kHz-6-2-T 尺寸圖

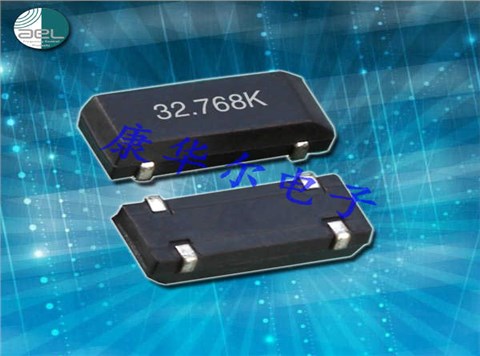

AEL艾爾8038晶體,ELS25收音機晶振,ELS25-32.768kHz-6-2-T
產品特點：
SMD音叉表晶
公差：±20ppm，±10ppm可用
工作溫度-40°C至+85°C
| 歐美晶振編碼 | Brand | Length | Width | Height | Operating Temperature | Frequency |
| ELM8-18.432MHz-16-R80-DQ-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 18.432 MHz |
| ELM8-24.000MHz-10-R60-D1W-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 24 MHz |
| ELM8-24.000MHz-18-R60-B1W-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 24 MHz |
| ELM8-24.000MHz-9-R40-N1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -30°C ~ 85°C | 24 MHz |
| ELM8-26.000MHz-18-R60-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 26 MHz |
| ELM8-32.000MHz-16-R40-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 75°C | 32 MHz |
| ELM8-32.000MHz-9-R40-D1G-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 32 MHz |
| ELS07-32.768kHz-6-T | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| ELS07-32.768kHz-T | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-7-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-7-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-9-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-6-2-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS06-32.768kHz-9-T | AEL Crystals | 2mm | 1.2mm | 0.6mm | -40°C ~ 85°C | 32.768 kHz |
| ELS05-32.768kHz-9-T | AEL Crystals | 1.6mm | 1mm | 0.5mm | -40°C ~ 85°C | 32.768 kHz |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL Crystals | 1.6mm | 1.2mm | 0.4mm | -40°C ~ 85°C | 24 MHz |
| X10M000000L121 | AEL Crystals | 11.3mm | 4mm | 16mm | -20°C ~ 70°C | 10 MHz |
| X10M000000S065 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -40°C ~ 105°C | 10 MHz |
| X12M000000S081 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 12 MHz |
| X12M000000S096 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 12 MHz |
| X12M000000S118 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 12 MHz |
| X12M582900S001 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -10°C ~ 60°C | 12.5829 MHz |
| X13M560000S024 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 13.56 MHz |
| X14M000000S003 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 14 MHz |
| X14M800000S001 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 14.8 MHz |
| X16M000000S182 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 16 MHz |
| X16M000000S207 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -40°C ~ 85°C | 16 MHz |
| X18M432000S049 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 18.432 MHz |
| X21M948717S005 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 125°C | 21.948717 MHz |
| X24M000000S029 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -30°C ~ 85°C | 24 MHz |
| X24M000000S049 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S050 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S079 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S094 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 24 MHz |
| X24M000000S303 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -30°C ~ 85°C | 24 MHz |
| X26M000000S301 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 26 MHz |
| X30M000000S005 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -20°C ~ 70°C | 30 MHz |
| X32K768L025 | AEL Crystals | 2.1mm | 6.2mm | 13.2mm | -10°C ~ 60°C | 32.768 kHz |
| X32K768L104 | AEL Crystals | 2.9mm | 8mm | 17mm | -10°C ~ 60°C | 32.768 kHz |
| X32K768S003 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S012 | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S013 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S020 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S021 | AEL Crystals | 4.1mm | 1.5mm | 0.7mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S036 | AEL Crystals | 10.41mm | 4.06mm | 3.56mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S038 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S041 | AEL Crystals | 4mm | 1.5mm | 0.7mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S045 | AEL Crystals | 2mm | 6mm | 9mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S051 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S067 | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S073 | AEL Crystals | 6mm | 2.5mm | 8.3mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S112 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768K晶振 |
| X32K768S115 | AEL Crystals | 8mm | 4mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S134 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S233 | AEL Crystals | 10.4mm | 4mm | 3.5mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S239 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S300 | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| X32M000000S039 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 32 MHz |
| X32M000000S045 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 75°C | 32 MHz |
| X32M000000S046 | AEL Crystals | 2mm | 1.6mm | 0.5mm | -40°C ~ 85°C | 32 MHz |
| X3M686400S004 | AEL Crystals | 11.8mm | 5.5mm | 2.1mm | -10°C ~ 60°C | 3.6864 MHz |
| X4M000000S002 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -40°C ~ 85°C | 4 MHz |
| X4M000000S018 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 4 MHz |
| X4M000000S084 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -25°C ~ 75°C | 4 MHz |
| X8M000000L023 | AEL Crystals | 10.5mm | 4.7mm | 4mm | -25°C ~ 75°C | 8 MHz |
