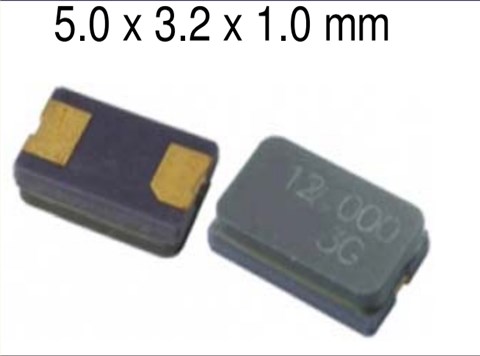

F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振，尺寸5.00x3.20mm，頻率為54MHZ，荷蘭進口晶振，5032mm無源晶體，兩腳貼片晶振，陶瓷晶振，無源晶振，SMD晶振，無源貼片晶振，無鉛環保晶振，水晶振動子，輕薄型晶體，智能手機晶振，無線應用晶振，網絡設備晶振，儀器儀表專用晶振，藍牙音響晶振，平板電腦晶振，移動通信晶振，小型設備晶振，可視化智能家居晶振，娛樂設備晶振，低損耗晶振，高質量晶振，高性能晶振，具有良好的穩定性能。
SMD晶振產品特別適合用于移動通信，智能手機，無線應用，網絡設備，儀器儀表，藍牙音響，以及可視化智能家居，娛樂設備等領域。F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振.

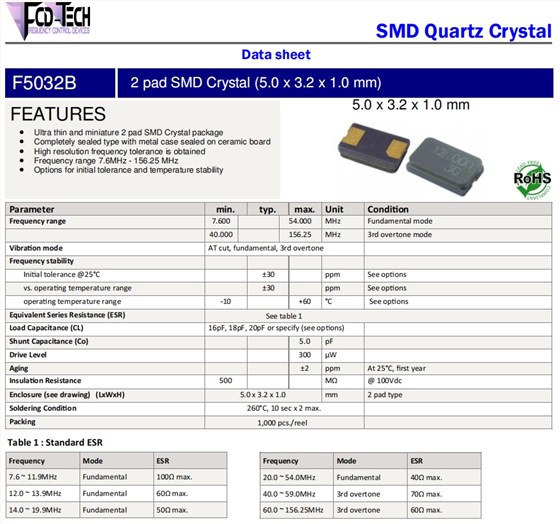

F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振參數表
| Parameter | min. | typ. | max. | Unit | Condi?on | |||||||||||||||
| Frequency range |
|
54.000 | MHz | Fundamental mode | ||||||||||||||||
| 40.000 | 156.25 | MHz | 3rd overtone mode | |||||||||||||||||
| Vibra?on mode | AT cut, fundamental, 3rd overtone | |||||||||||||||||||
| Frequency stability | ||||||||||||||||||||
| Ini?al tolerance @25°C | ±30 | ppm | See op?ons | |||||||||||||||||
| vs. opera?ng temperature range | ±30 | ppm | See op?ons | |||||||||||||||||
| opera?ng temperature range | ‐10 | +60 | °C | See op?ons | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See table 1 | |||||||||||||||||||
| Load Capacitance (CL) | 16pF, 18pF, 20pF or specify (see op?ons) | |||||||||||||||||||
| Shunt Capacitance (Co) | 5.0 | pF | ||||||||||||||||||
| Drive Level | 300 | µW | ||||||||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | |||||||||||||||||
| Insula?on Resistance | 500 | M? | @ 100Vdc | |||||||||||||||||
| Enclosure (see drawing)(LxWxH) | 5.0 x 3.2 x 1.0 | mm | 2 pad type | |||||||||||||||||
| Soldering Condi?on | 260°C, 10 sec x 2 max. | |||||||||||||||||||
| Packing | 1,000 pcs./reel | |||||||||||||||||||

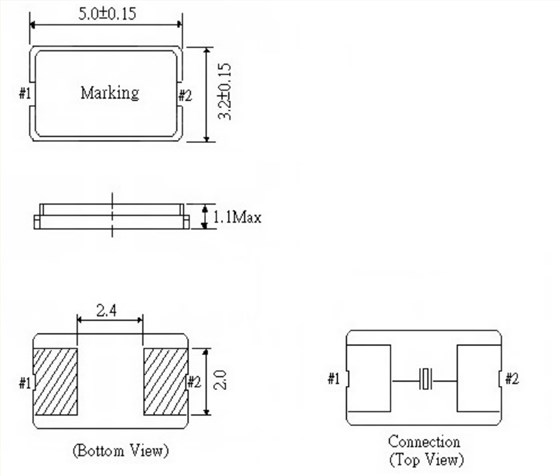

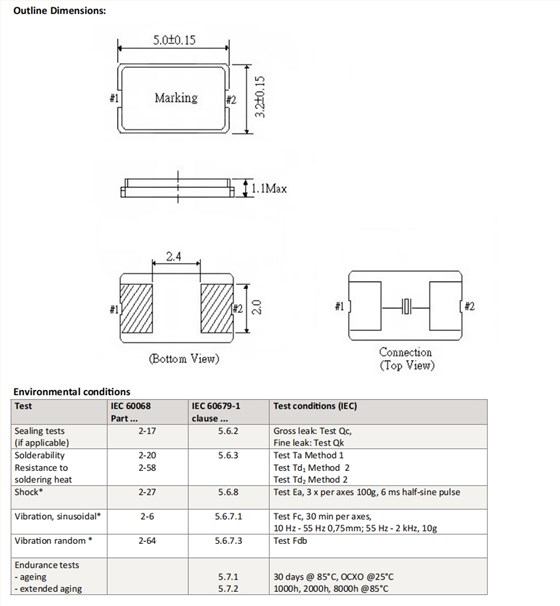

F5032B-30-50-D-S-F-54.000MHz FCD-Tech晶振 6G放大器晶振 尺寸圖
貼片晶振產品特性：
超薄微型2焊盤SMD晶體封裝
完全密封型，金屬外殼密封在陶瓷板上
獲得高分辨率頻率容差
頻率范圍7.6MHz-156.25MHz
初始公差和溫度穩定性選項
更多相關FCD-Tech晶振型號,請咨詢我們！
