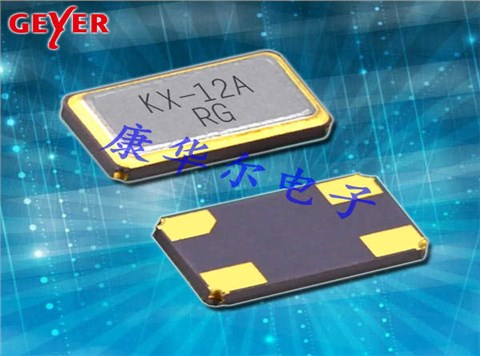

6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶體諧振器，丹麥進口晶振，Geyer格耶電子晶振，型號：KX-12AE系列，頻率為：8.0MHz~150.0MHz，小體積晶振尺寸：6.0x3.5x1.0mm封裝，四腳貼片晶振，6035晶振，無源晶振，石英晶體，SMD晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃~+85℃ (KX-12AT)，-40℃~+105℃ (KX-12AE)，-40℃~+125℃ (KX-12AF)。具有超小型，輕薄型，高精度，高可靠性，高性能，高品質，耐熱及耐環境等特點。石英晶振，被廣泛應用于：移動通訊設備，無線網絡，藍牙晶振，物聯網，平板電腦，安防設備，醫療設備，汽車電子，游戲機設備，數碼電子，智能家居，數碼電子等應用。

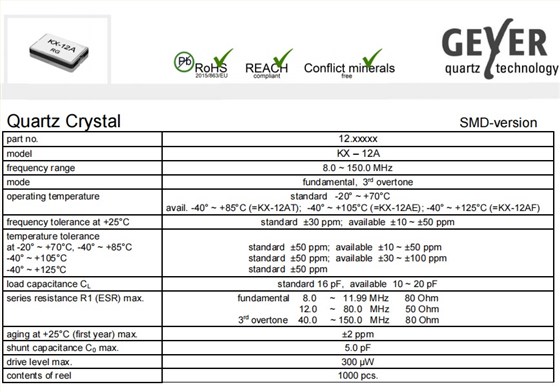

6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶體諧振器,參數表
-40° ~ +105°C (=KX- 12AE)
-40° ~ +125°C (=KX- 12AF)
part no.
12.xxxxx
model
KX - 12A
frequency range
8.0 ~ 150.0 MHz
mode
fundamental,3rdovertone
operating temperature
standard-20° ~ +70°C
avail. -40° ~ +85°C (=KX- 12AT)
frequency tolerance at +25°C
standard±30 ppm;available±10 ~ ±50 ppm
temperature tolerance
at -20° ~ +70°C, -40° ~ +85°C
-40° ~ +105°C
-40° ~ +125°C
standard±50
standard±50
standard±50
ppm;available±10 ~ ±50 ppm
ppm;available±30 ~ ±100 ppm
ppm
load capacitance CL
standard 16 pF,available10 ~ 20 pF
series resistance R1 (ESR) max.
fundamental
3rdovertone
8.0 ~ 11.99 MHz
12.0 ~80.0MHz
40.0~ 150.0MHz
80 Ohm
50 Ohm
80 Ohm
aging at +25°C (first year) max.
±2 ppm
shunt capacitance C0max.
5.0 pF
drive level max.
300 µW
contents of reel
1000 pcs.

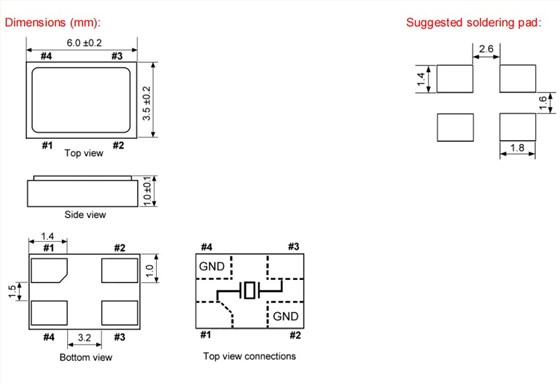

6035mm,KX-12AE,Geyer格耶晶振,SMD石英晶體諧振器,尺寸圖
| 編碼 | 品牌 | 石英晶體諧振器 | 型號 | 頻率 | 頻率溫度性 |
| 12.88722 | Geyer格耶 | Crystal 16.0Mhz SMD KX-7T 12pF, | KX-7T | 16 MHz | ±25ppm |
| 12.8902 | Geyer格耶 | Crystal 32.0Mhz SMD KX-9A 16pF, | KX-9A | 32 MHz | ±10ppm |
| 12.60233 | Geyer格耶 | CRYSTAL 25.0MHZ 12PF SMD | KX-7T | 25 MHz | ±20ppm |
| 12.8919 | Geyer格耶 | Crystal 8.0Mhz SMD KX-9AT 16pF, | KX-9AT | 8 MHz | ±30ppm |
| 12.60208 | Geyer格耶 | CRYSTAL 26.0MHZ 8PF SMD | KX-7T | 26 MHz | ±10ppm |
| 12.88664 | Geyer格耶 | Crystal 14.3181800Mhz 12pF SMD | KX-7 | 14.31818 MHz | ±50ppm |
| 12.89495 | Geyer格耶 | Crystal 8.0Mhz SMD KX-9BH 8pF, 4 | KX-9BH | 8 MHz | ±50ppm |
| 12.89103 | Geyer格耶 | Crystal 10.0Mhz SMD KX-9AE 16pF, | KX-9AE | 10 MHz | ±50ppm |
| 12.887 | Geyer格耶 | Crystal 30.0Mhz 12pF SMD | KX-7 | 30 MHz | ±50ppm |
| 12.89131 | Geyer格耶 | Crystal 48.0Mhz SMD KX-9AT 16pF, | KX-9AT | 48 MHz | ±50ppm |
| 12.89126 | Geyer格耶 | Crystal 13.560Mhz SMD KX-9AE 16p | KX-9A | 13.56 MHz | ±120ppm |
| 12.6009 | Geyer格耶 | CRYSTAL 24.0MHZ 12PF SMD | KX-7T | 24 MHz | ±20ppm |
| 12.88701 | Geyer格耶 | Crystal 40.0Mhz 12pF SMD | KX-7T | 40 MHz | ±100ppm |
| 12.88493 | Geyer格耶 | Crystal 33.33Mhz SMD KX-7T 12pF, | KX-7T | 33.33333 MHz | ±100ppm |
| 12.89078 | Geyer格耶 | Crystal 27.0Mhz SMD KX-9AT 16pF, | KX-9AT | 27 MHz | ±150ppm |
| 12.88508 | Geyer格耶 | Crystal 24.0Mhz 12pF SMD | KX-7T | 24 MHz | ±50ppm |
| 12.88711 | Geyer格耶 | Crystal 25.0Mhz SMD KX-7T 12pF, | KX-7T | 25 MHz | ±30ppm |
| 12.89027 | Geyer格耶 | Crystal 25.0Mhz SMD KX-9A 16pF, | KX-9A | 25 MHz | ±30ppm |
| 12.88721 | Geyer格耶 | Crystal 16.0Mhz 12pF SMD | KX-7T | 16 MHz | ±30ppm |
| 12.88667 | Geyer格耶 | Crystal 25.0Mhz SMD KX-7 12pF, 4 | KX-7 | 25 MHz | ±50ppm |
| 12.89017 | Geyer晶振 | Crystal 13.560Mhz SMD KX-9A 16pF | KX-9A | 13.56 MHz | ±50ppm |
| 12.89082 | Geyer格耶 | Crystal 26.0Mhz SMD KX-9AT 16pF, | KX-9AT | 26 MHz | ±50ppm |
| 12.60075 | Geyer格耶 | Cystal 30.0Mhz 8pF SMD | KX-7 | 30 MHz | ±50ppm |
| 12.89155 | Geyer格耶 | Crystal 32.0Mhz SMD KX-9AT 16pF, | KX-9AT | 32 MHz | ±30ppm |
| 12.88522 | Geyer格耶 | Crystal 11.059200Mhz 12pF SMD | KX-7T | 11.0592 MHz | ±50ppm |
| 12.88752 | Geyer格耶 | Crystal 10.0Mhz 12pF SMD | KX-7 | 10 MHz | ±50ppm |
| 12.88565 | Geyer格耶 | Crystal 8.0Mhz 12pF SMD | KX-7E | 8 MHz | ±50ppm |
| 12.89209 | Geyer格耶 | Crystal 16.0Mhz SMD KX-9AE 20pF, | KX-9AE | 16 MHz | ±50ppm |
| 12.60024 | Geyer格耶 | Cystal 27.0Mhz 12pF SMD | KX-7E | 27 MHz | ±100ppm |
| 12.8873 | Geyer格耶 | Crystal 26.0Mhz 12pF SMD | KX-7T | 26 MHz | ±50ppm |
| 12.88643 | Geyer格耶 | Crystal 14.3181800Mhz 12pF SMD | KX-7T | 14.31818 MHz | ±50ppm |
| 12.88523 | Geyer格耶 | Crystal 40.0Mhz 12pF SMD | KX-7F | 40 MHz | ±50ppm |
| 12.89288 | Geyer格耶 | Crystal 24.5760Mhz SMD KX-9AT 20 | KX-9AT | 24.576 MHz | ±30ppm |
| 12.89029 | Geyer格耶 | Crystal 27.0Mhz SMD KX-9A 16pF, | KX-9A | 27 MHz | ±50ppm |
| 12.88799 | Geyer格耶 | Crystal 12.0Mhz 10pF SMD | KX-7 | 12 MHz | ±30ppm |
| 12.88756 | Geyer格耶 | Crystal 10.0Mhz 12pF SMD | KX-7E | 26 MHz | ±50ppm |
| 12.8877 | Geyer格耶 | Crystal 30.0Mhz 12pF SMD | KX-7T | 30 MHz | ±10ppm |
| 12.87106 | Geyer格耶 | CRYSTAL 32.768KHZ 7PF SMD | KX-327XST | 32.768 kHz | ±20ppm |
| 12.87114 | Geyer格耶 | Cystal 32.7680Khz 12.5pF SMD | KX-327ST | 32.768 kHz | -0.034ppm, ±0.006ppm |
| 12.60023 | Geyer格耶 | Cystal 48.0Mhz 12pF SMD | KX-7E | 48 MHz | ±50ppm |
