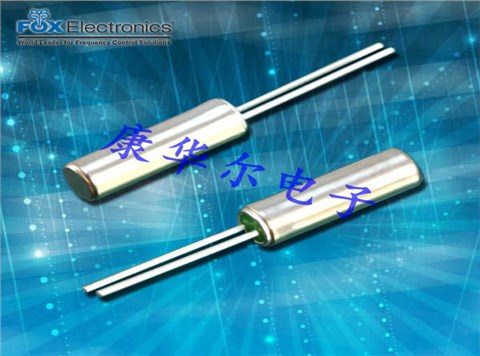

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體，美國進口晶振，福克斯晶振，FOX晶振，型號：FKT26（Former NC26LF），編碼為：NC26LF-327，頻率：32.768KHz，小體積晶振尺寸：2.0x6.0mm，兩腳插件晶振，石英晶振，無源晶振，圓柱晶振，音叉表晶，石英晶體諧振器，無鉛晶振。應用于：無線藍牙晶振，電腦主板晶振，數碼電子晶振，計時晶振，數碼相機晶振，智能家居晶振，儀器設備晶振等應用。

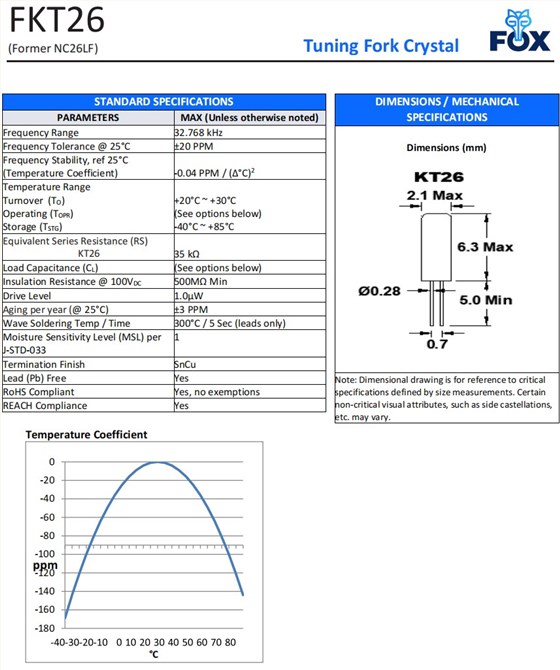

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體,參數表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
32.768 kHz
Frequency Tolerance @ 25°C
±20 PPM
Frequency Stability, ref 25°C
(Temperature Coefficient)
-0.04 PPM / (△°C)2
Temperature Range
Turnover(TO)
Operating (TOPR)
Storage (TSTG)
+20°C ~ +30°C

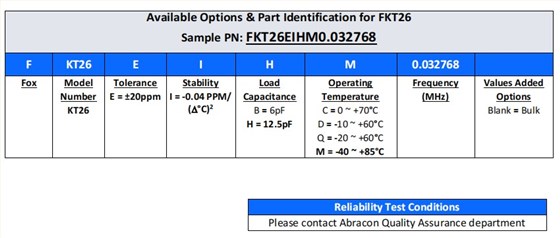

(See options below)
-40°C ~ +85°C
Equivalent Series Resistance (RS)
KT26
35 kΩ
Load Capacitance (CL)
(See options below)
Insulation Resistance @ 100VDC
500MΩMin
Drive Level
1.0µW
Aging per year (@ 25°C)
±3 PPM
Wave Soldering Temp / Time
300°C / 5 Sec (leads only)
Moisture Sensitivity Level (MSL) per
J-STD-033
1
Termination Finish
SnCu
Lead (Pb) Free
Yes
RoHS Compliant
Yes, no exemptions
REACH Compliance
Yes

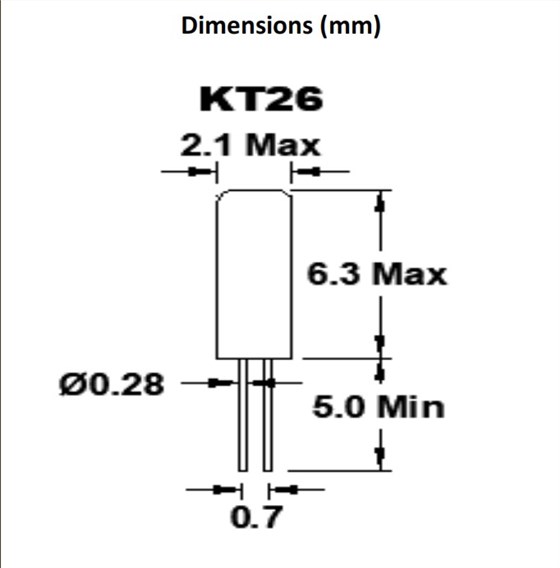

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體,尺寸圖
