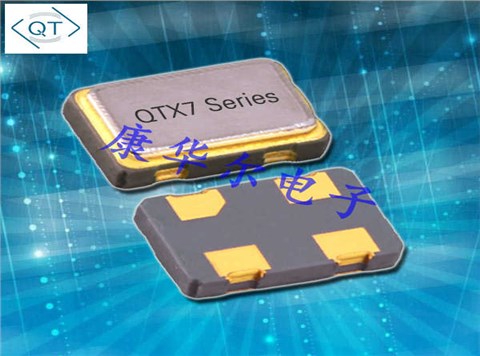

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器，德國進口晶振，Quarztechnik晶振，夸克晶振，型號：QTX7系列，編碼為：QTX733A16.0000B15M，頻率為：16 MHz，電壓3.3V，工作溫度范圍：-40℃至+85℃，頻率穩定性：±25ppm，負載電容：15pF，小體積晶振尺寸：7.0x5.0x1.4mm封裝，四腳貼片晶振，石英晶體振蕩器，有源晶振，7050晶振，HCMOS時鐘振蕩器，無鉛環保晶振。QX7振蕩器由一個TTL/HCMOS兼容的混合電路和一個微型石英晶體組成，它封裝在一個低輪廓的、工業標準的7x5毫米陶瓷封裝中。5070晶振應用于：通訊設備，無線網絡，藍牙模塊，物聯網，GPS定位，車載導航儀，醫療設備，安防設備，平板電腦，數碼電子等應用。
QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器，產品特征：
•小型7.0x5.0x1.4mm封裝石英晶體振蕩器
•頻率范圍1MHz至155.520MHz
•標準的三態（啟用/禁用）功能
•電源電壓范圍：1.8V、2.5V、3.3V或5.0V
•提供高輸出負載版本（50pF）

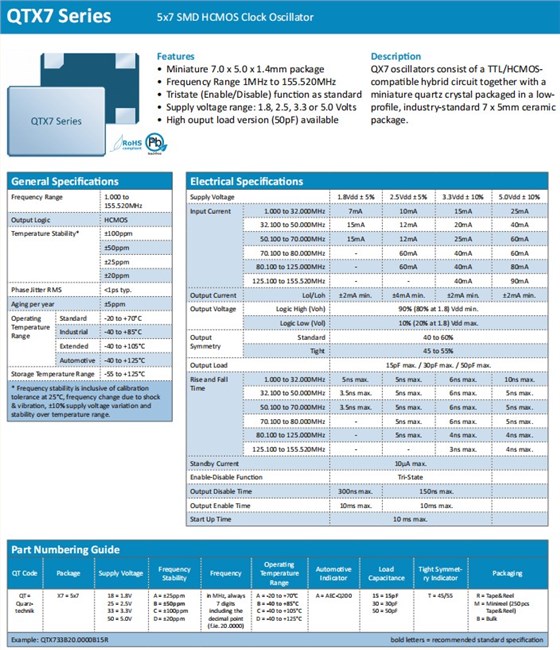

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器,參數表
Supply Voltage
1.8Vdd ± 5%
2.5Vdd ± 5%
3.3Vdd ± 10%
5.0Vdd ± 10%
Input Current
1.000 to 32.000MHz
7mA
10mA
15mA
25mA
32.100 to 50.000MHz
15mA
12mA
20mA
40mA
50.100 to 70.000MHz
15mA
12mA
25mA
60mA
70.100 to 80.000MHz
-
60mA
40mA
60mA
80.100 to 125.000MHz
-
60mA
40mA
80mA
125.100 to 155.520MHz
-
-
40mA
90mA
Output Current
Lol/Loh
±2mA min.
±4mA min.
±2mA min.
±2mA min.
Output Voltage
Logic High (Voh)
90% (80% at 1.8) Vdd min.
Logic Low (Vol)
10% (20% at 1.8) Vdd max.
Output
Standard
40 to 60%
Symmetry
Tight
45 to 55%
Output Load
15pF max. / 30pF max. / 50pF max.
Rise and Fall
1.000 to 32.000MHz
5ns max.
5ns max.
6ns max.
10ns max.
Time
32.100 to 50.000MHz
3.5ns max.
5ns max.
6ns max.
5ns max.
50.100 to 70.000MHz
3.5ns max.
5ns max.
6ns max.
5ns max.
70.100 to 80.000MHz
-
5ns max.
6ns max.
5ns max.
80.100 to 125.000MHz
-
5ns max.
4ns max.
4ns max.
125.100 to 155.520MHz
-
-
3ns max.
4ns max.
Standby Current
10μA max.
Enable-Disable Function
Tri-State
Output Disable Time
300ns max.
150ns max.
Output Enable Time
10ms max.
10ms max.
Start Up Time
10 ms max.

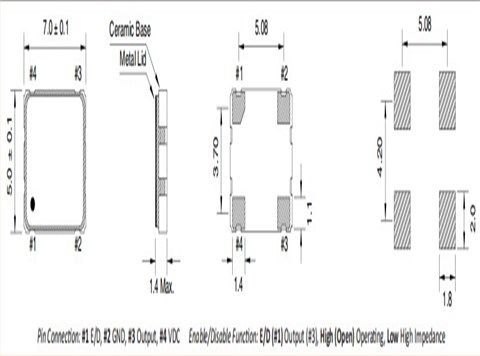

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器,尺寸圖
| 產品編碼 | 頻率 | 輸出邏輯 | 電壓 | 工作溫度范圍 | 頻率穩定性 |
| QTX733A3.68640B15M | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A4.00000B15M | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A7.37280B15M | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A8.00000B15M | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A10.0000B15M | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A11.0592B15M | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A12.0000B15M | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A14.31818B15M | 14.31818 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A14.7456B15M | 14.7456 MHz | 石英晶振 | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A16.0000B15M | 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A16.3840B15M | 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A20.0000B15M | 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A24.5760B15M | 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A25.0000B15M | 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A27.0000B15M | 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A30.0000B15M | 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A32.0000B15M | 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A3.68640B15M | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A4.00000B15M | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A7.37280B15M | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A8.00000B15M | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A10.0000B15M | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A11.0592B15M | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A12.0000B15M | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
