S7M33.0000F18E23-EXT,7050mm,S7M晶體,NKG無線局域網晶振,33MHZ,NKG無源晶體,四腳貼片晶振,SMD晶體諧振器,水晶振動子,7050mm無源晶振,貼片石英晶振,33MHZ無源晶體,尺寸7.0×5.0mm,頻率33MHZ,低老化晶振,高可靠晶振,耐高溫晶振,微處理器晶振,便攜式設備晶振,調制解調器晶振,無線局域網晶振,通訊應用晶振,無線設備晶振.
S7M33.0000F18E23-EXT,7050mm,S7M晶體,NKG無線局域網晶振,33MHZ特點:

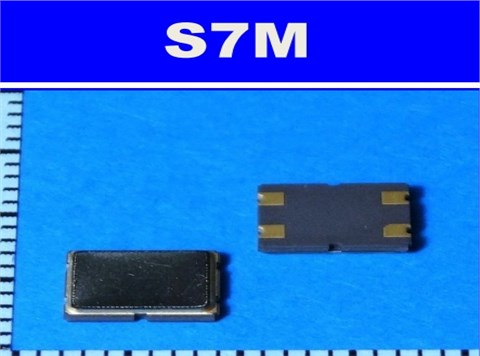

SMD晶振小包裝尺寸7.0x5.0x1.1毫米，帶4個襯墊。
卓越的耐熱性和抗震性。
高度可靠的接縫密封包裝，低老化。

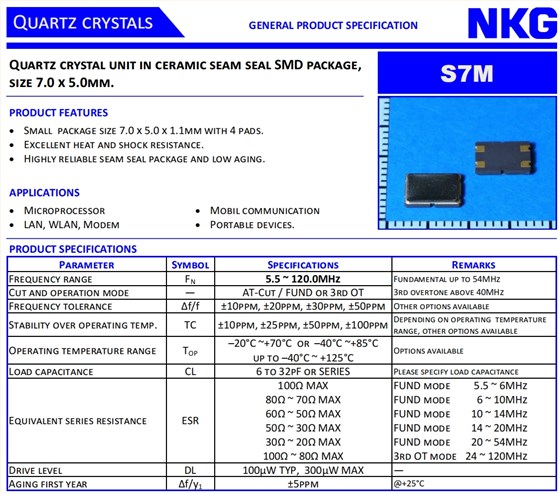

S7M33.0000F18E23-EXT,7050mm,S7M晶體,NKG無線局域網晶振,33MHZ 參數表
| Parameter | Symbol | Specifications | Remarks | ||||||||||
| Frequency range | FN | 33.0MHz |
Fundamental up to 54MHz 3rd overtone above 40MHz |
||||||||||
| Cut and operation mode | — | AT-Cut / FUND or 3rd OT | |||||||||||
| Frequency tolerance | Δf/f | ±10ppm, ±20ppm, ±30ppm, ±50ppm | Other options available | ||||||||||
| Stability over operating temp. | TC | ±10ppm, ±25ppm, ±50ppm, ±100ppm |
Depending on operatingtemperature range, other options available |
||||||||||
| Operating temperature range | TOP |
– 20°C ~+70°Cor –40°C ~+85°C up to –40°C ~ +125°C |
Options available | ||||||||||
| Load capacitance | CL | 6 to 32pF or SERIES | Please specify load capacitance | ||||||||||
| Equivalent series resistance | ESR |
100Ω MAX 80Ω ~ 70Ω MAX 60Ω ~ 50Ω MAX 50Ω ~ 30Ω MAX 30Ω ~ 20Ω MAX 100? ~ 80Ω MAX |
FUND mode FUND mode FUND mode FUND mode FUND mode 3rd OT mode |
5.5 ~ 6MHz 6 ~ 10MHz 10 ~ 14MHz 14 ~ 20MHz 20 ~ 54MHz 24 ~ 120MHz |
|||||||||
| Drive level | DL | 100µW TYP,300µW MAX | — | ||||||||||
| Aging first year | Δf/y1 | ±5ppm | @+25°C | ||||||||||

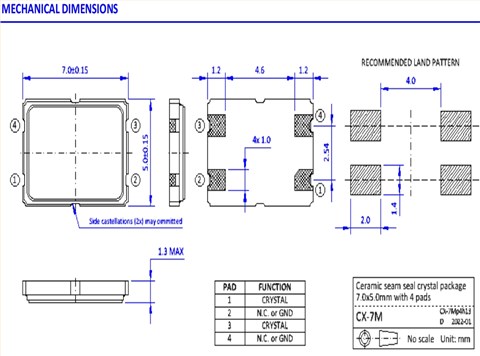

S7M33.0000F18E23-EXT,7050mm,S7M晶體,NKG無線局域網晶振,33MHZ尺寸圖
