FCD-Tech差分晶振,LVDS,SX3LK-33F20-125MHZ,3225mm,125MHZ低抖動晶振,荷蘭進口晶振,有源FCD-Tech晶振,LVDS差分輸出晶振,3225小體積有源晶振,125MHZ時鐘晶體振蕩器,差分晶體振蕩器,有源貼片晶振,尺寸3.2x2.5mm,頻率125MHZ,電壓3.3V,輸出LVDS,低抖動晶振,低相位晶振,低相噪晶振,機頂盒專用晶振,智能家居晶振,多媒體設備晶振,通訊模塊晶振.
FCD-Tech差分晶振,LVDS,SX3LK-33F20-125MHZ,3225mm,125MHZ低抖動晶振特點:

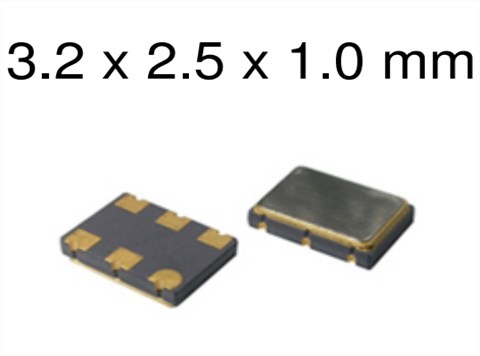

微型封裝
無PLL和乘法器電路的低抖動設計
卓越的相位噪聲差分晶振LVDS
應用：SONET、xDSL、SDH、機頂盒.

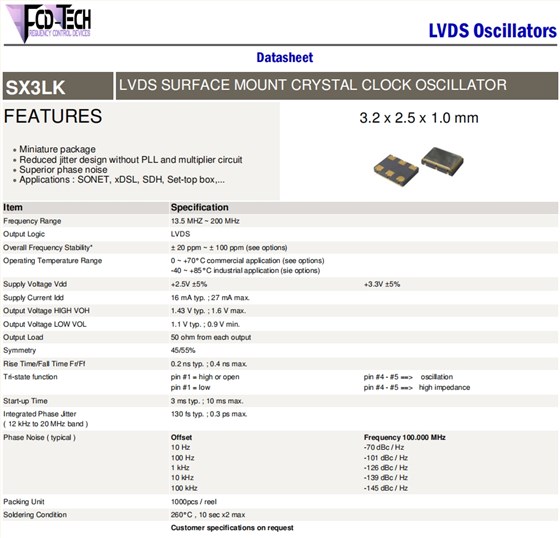

FCD-Tech差分晶振,LVDS,SX3LK-33F20-125MHZ,3225mm,125MHZ低抖動晶振 參數表
|
Item Frequency Range |
Specification 125.000 MHz |
||||||||
| Output Logic | LVDS | ||||||||
| Overall Frequency Stability*± 20 ppm ~ ± 100 ppm (see options) | |||||||||
| Operating Temperature Range |
0 ~ +70°C commercial application (see options) -40 ~ +85°C industrial application (sie options) |
||||||||
| Supply Voltage Vdd | +2.5V ±5% | +3.3V ±5% | |||||||
| Supply Current Idd | 16 mA typ. ; 27 mA max. | ||||||||
| Output Voltage HIGH VOH | 1.43 V typ. ; 1.6 V max. | ||||||||
| Output Voltage LOW VOL | 1.1 V typ. ; 0.9 V min. | ||||||||
| Output Load | 50 ohm from each output | ||||||||
| Symmetry | 45/55% | ||||||||
| Rise Time/Fall Time Fr/Ff | 0.2 ns typ. ; 0.4 ns max. | ||||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #4 - #5 ==>oscillation pin #4 - #5 ==>high impedance |
|||||||
| Start-up Time | 3 ms typ. ; 10 ms max. | ||||||||
|
Integrated Phase Jitter ( 12 kHz to 20 MHz band ) |
130 fs typ. ; 0.3 ps max. | ||||||||
| Phase Noise ( typical ) |
Offset 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz |
Frequency 100.000 MHz -70 dBc / Hz -101 dBc / Hz -126 dBc / Hz -139 dBc / Hz -145 dBc / Hz |
|||||||
| Packing Unit | 1000pcs / reel | ||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||

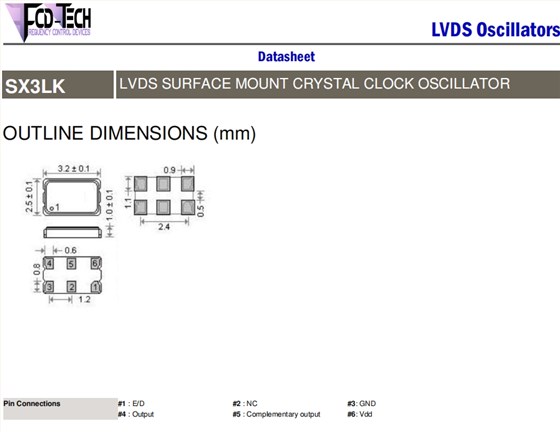

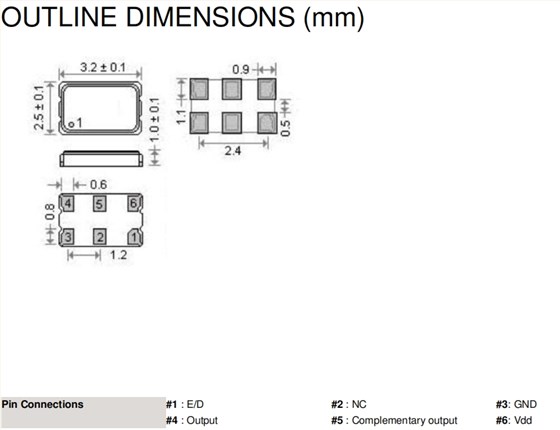

FCD-Tech差分晶振,LVDS,SX3LK-33F20-125MHZ,3225mm,125MHZ低抖動晶振尺寸圖
