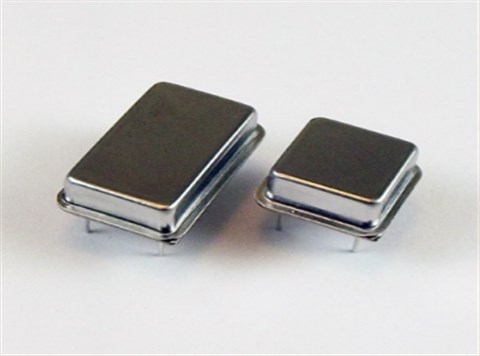

特蘭斯科晶振,SXL-LF50CQ33S-16.000M,石英振蕩器,6G無線模塊晶振，尺寸為20.7x13.1x7.5mm,頻率為16MHZ，時鐘振蕩器，OSC晶振，有源晶振，進口有源晶體振蕩器，低抖動晶振，低電壓晶振，高精度晶振，高性能晶振，智能家居晶振，6G藍牙模塊晶振，6G基站晶振，6G無線模塊晶振，6G無線通信晶振，儀器設備晶振，便攜式設備晶振。
有源晶振產品主要應用范圍：智能家居，6G藍牙模塊，6G基站，6G無線模塊，6GWIFI，儀器設備等領域。特蘭斯科晶振,SXL-LF50CQ33S-16.000M,石英振蕩器,6G無線模塊晶振.

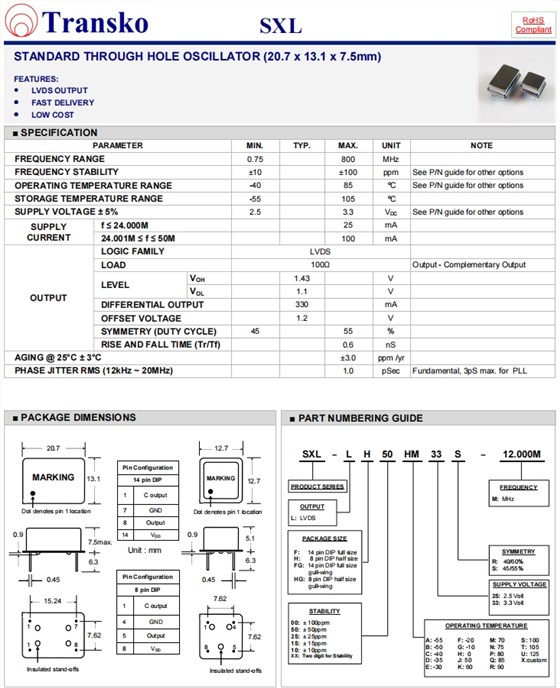

特蘭斯科晶振,SXL-LF50CQ33S-16.000M,石英振蕩器,6G無線模塊晶振 參數表
| ■SPECIFICATION | ||||||||||
| PARAMETER | MIN. | TYP. | MAX. | UNIT | NOTE | |||||
| FREQUENCYRANGE |
|
16 | MHz | |||||||
| FREQUENCYSTABILITY | ±10 | ±100 | ppm | See P/N guide for other options | ||||||
| OPERATINGTEMPERATURERANGE | -40 | 85 | ºC | See P/N guide for other options | ||||||
| STORAGETEMPERATURERANGE | -55 | 105 | ºC | |||||||
| SUPPLYVOLTAGE±5% | 2.5 | 3.3 | VDC | See P/N guide for other options | ||||||
|
SUPPLY CURRENT |
f≤24.000M | 25 | mA | |||||||
| 24.001M≤f≤50M | 100 | mA | ||||||||
| OUTPUT | LOGICFAMILY | LVDS | ||||||||
| LOAD | 100? | Output-Complementary Output | ||||||||
| LEVEL | VOH | 1.43 | V | |||||||
| VOL | 1.1 | V | ||||||||
| DIFFERENTIALOUTPUT | 330 | mA | ||||||||
| OFFSETVOLTAGE | 1.2 | V | ||||||||
| SYMMETRY(DUTYCYCLE) | 45 | 55 | % | |||||||
| RISEANDFALLTIME(Tr/Tf) | 0.6 | nS | ||||||||
| AGING@25°C±3°C | ±3.0 | ppm /yr | ||||||||
| PHASEJITTERRMS(12kHz~20MHz) | 1.0 | pSec | Fundamental, 3pS max. for PLL | |||||||

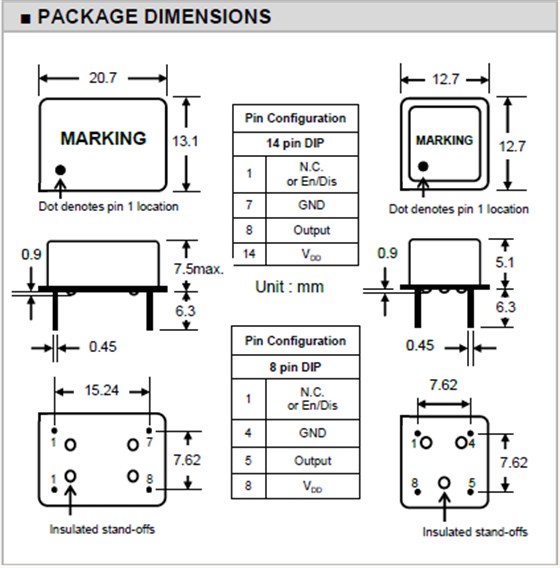

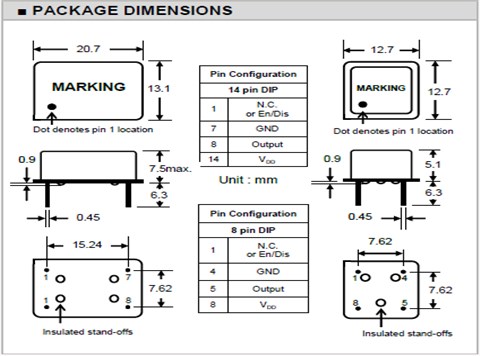

特蘭斯科晶振,SXL-LF50CQ33S-16.000M,石英振蕩器,6G無線模塊晶振 尺寸圖
產品特性：
LVDS輸出
快速交貨
成本低
大尺寸高精度
更多相關特蘭斯科晶振型號，請咨詢我們！
