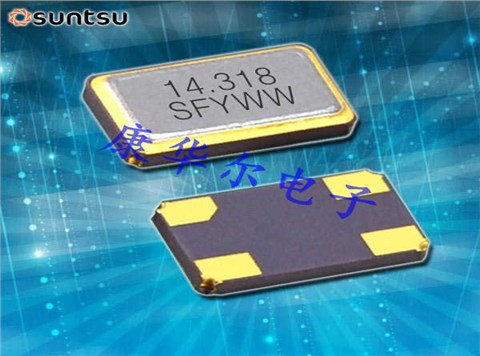

SXT53410BE17-25.000M,5032mm晶體,SUNTSU測試設備晶振，美國Suntsu晶振，松圖晶振，型號：SXT534系列，編碼為：SXT53410BE17-25.000M，頻率為：25.000MHz，負載電容：10pF，頻率穩(wěn)定性：±30ppm，頻率容差：±15ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：5.0x3.2mm，石英晶體諧振器，四腳貼片晶振，無源晶振，石英晶振，SMD石英晶體，SMD晶振。進口晶振，具有超小型晶振，輕薄型晶振，高性能晶振，高品質(zhì)等特點。應用于：通信和測試設備，PCMCIA，無線應用程序，高密度應用。
SXT53410BE17-25.000M,5032mm晶體,SUNTSU測試設備晶振,參數(shù)表
| Electrical Parameters | Units | Minimum | Typical | Maximum | Remarks |
| Frequency Range | MHz | 25 |
|
AT-Cut Fundamental. | |
| Frequency Range | MHz | 40 | 125 | 3rd Overtone | |
| Frequency Tolerance at +25ºC | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Op Temp | ppm | -10 | +10 | See part numbering guide for options. | |
| Frequency Stability vs. Aging | ppm | -3 | +3 | First year @ +25ºC. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -40 | +125 | ||
| Load Capacitance | pF | 7 | 30 | See part numbering guide for options. | |
| Shunt Capacitance | pF | 7 | |||
| Drive Level | µW | 10 | 100 | ||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| 8.000MHz~11.999MHz |
Ω |
100 | AT-Cut Fundamental | ||
| 12.000MHz~19.999MHz |
Ω |
80 | AT-Cut Fundamental | ||
| ESR- 20.000MHz~29.999MHz |
Ω |
70 | AT-Cut Fundamental | ||
| 30.000MHz ~54.000MHz |
Ω |
50 | AT-Cut Fundamental | ||
| 40.000MHz~125.000MHz |
Ω |
80 | 3rd Overtone |

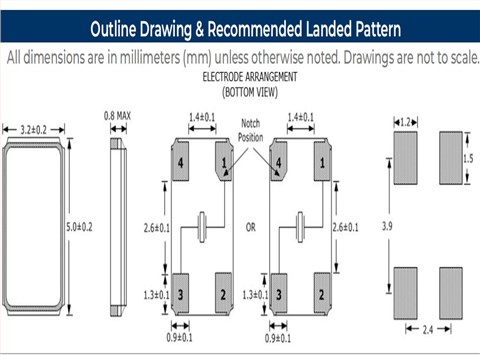

SXT53410BE17-25.000M,5032mm晶體,SUNTSU測試設備晶振,尺寸圖
| 晶振解決方案 | 型號 | 頻率 | 負載 | 工作溫度 | 頻率穩(wěn)定度 |
| SXT53410AA07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±50ppm |
| SXT53410BD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±30ppm |
| SXT53410BE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±30ppm |
| SXT53410BE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±30ppm |
| SXT53410BE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±30ppm |
| SXT53410BE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±30ppm |
| SXT53410CC07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±25ppm |
| SXT53410CC16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±25ppm |
| SXT53410CC17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±25ppm |
| SXT53410CC27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±25ppm |
| SXT53410CD07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±25ppm |
| SXT53410CD16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±25ppm |
| SXT53410CD17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±25ppm |
| SXT53410CD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±25ppm |
| SXT53410CE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±25ppm |
| SXT53410CE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±25ppm |
| SXT53410CE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±25ppm |
| SXT53410CE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±25ppm |
| SXT53410DD07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±20ppm |
| SXT53410DD16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±20ppm |
| SXT53410DD17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±20ppm |
| SXT53410DD27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±20ppm |
| SXT53410DE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±20ppm |
| SXT53410DE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±20ppm |
| SXT53410DE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±20ppm |
| SXT53410DE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±20ppm |
| SXT53410EE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±15ppm |
| SXT53410EE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±15ppm |
| SXT53410EE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±15ppm |
| SXT53410EE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±15ppm |
| SXT53410FE07-25.000M | SXT534 | 25.000M | 10pF | 0°C - +70°C | ±10ppm |
| SXT53410FE16-25.000M | SXT534 | 25.000M | 10pF | -10°C - +60°C | ±10ppm |
| SXT53410FE17-25.000M | SXT534 | 25.000M | 10pF | -10°C - +70°C | ±10ppm |
| SXT53410FE27-25.000M | SXT534 | 25.000M | 10pF | -20°C - +70°C | ±10ppm |
