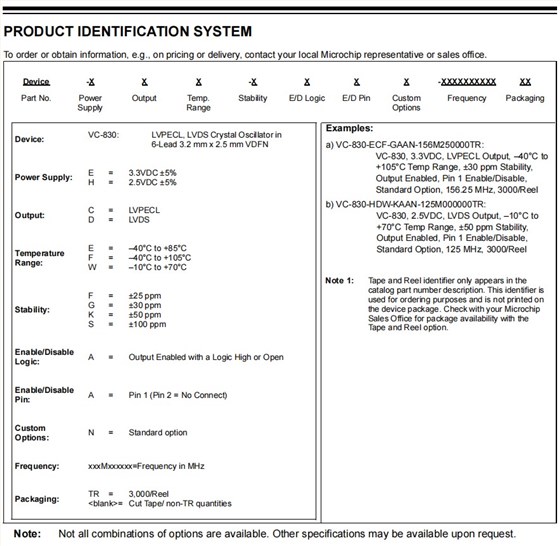

VC-830-EDF-GAAN-156M250000TR,3225mm,156.25MHz,Microchip品牌，美國進口晶振，Microchip晶振，型號：VC-830，編碼為：VC-830-EDF-GAAN-156M250000TR，頻率為：156.250 MHz，電壓3.3V，LVDS輸出差分晶振，小體積晶振尺寸： 3.2x2.5 mm， 工作溫度范圍：-40℃至105℃，精度：±25ppm，頻率穩定性：±30ppm，六腳貼片晶振，有源晶振，石英晶體振蕩器，石英晶振，差分晶體振蕩器。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低耗能，低相位噪聲，低損耗，低電平等特點。應用于：醫療設備、超聲波，以太網、GbE、同步，光纖通道，PON時鐘源的A/D、D/As、FPGAs，測試和測量，存儲區域網絡應用。

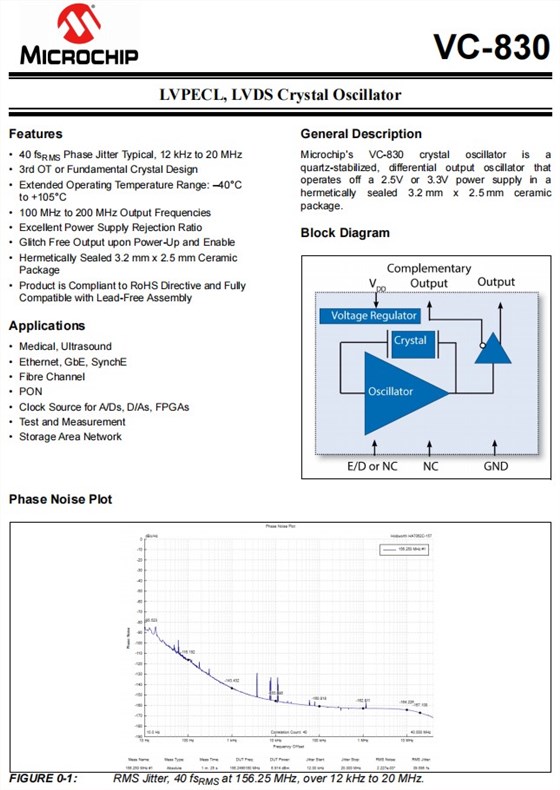

VC-830-EDF-GAAN-156M250000TR,3225mm,156.25MHz,Microchip品牌，產品特點：
•典型的40 fsRMS相位抖動，12kHz至20MHz
•第三次OT或基礎水晶設計
•擴展的工作溫度范圍：-40°C至+105°C
•100MHz至200MHz輸出頻率石英晶體振蕩器
•卓越的電源抑制率
•通電和啟用時無故障輸出
•密封3.2mmx2.5mm陶瓷封裝
•產品符合RoHS指令，與無鉛組件完全兼容

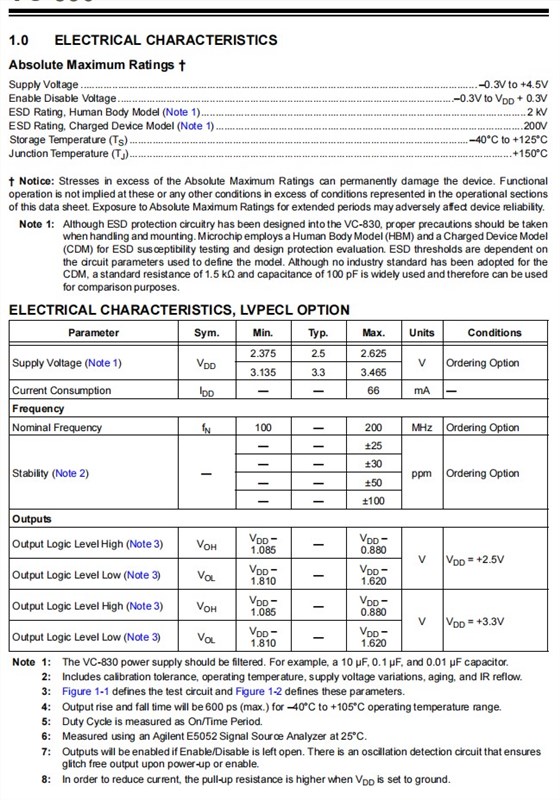

VC-830-EDF-GAAN-156M250000TR,3225mm,156.25MHz,Microchip品牌,參數表
| Parameter | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||
| Supply Voltage (Note 1) | VDD | 2.375 | 2.5 | 2.625 | V | Ordering Option | ||||||
| 3.135 | 3.3 | 3.465 | ||||||||||
| Current Consumption | IDD | 29 | mA | 2.5V | ||||||||
| 30 | 3.3V | |||||||||||
| Frequency | ||||||||||||
| Nominal Frequency | fN |
|
156.250MHz |
|
MHz | Ordering Option | ||||||
| Stability (Note 2) | ±25 | ppm | Ordering Option | |||||||||
| ±30 | ||||||||||||
| ±50 | ||||||||||||
| ±100 | ||||||||||||
| Outputs | ||||||||||||
| Output Logic Level High (Note 3) | VOH | 1.43 | 1.6 | V | ||||||||
| Output Logic Level Low (Note 3) | VOL | 0.9 | 1.10 | |||||||||
| Output Amplitude | ±247 | ±350 | ±454 | mV | ||||||||
| Differential Output Error | 50 | mV | ||||||||||
| Offset Voltage | 1.125 | 1.25 | 1.375 | V | ||||||||
| Offset Voltage Error | 50 | mV | ||||||||||
|
Output Leakage Current, Outputs Disabled |
— | — | — | 30 | µA | — | ||||||
| Output Rise and Fall Time (Note 3) | tr/tf | 300 | ps | Note 4 | ||||||||
| Load | 100Ω Differential | |||||||||||
| Duty Cycle (Note 5) | DC | 45 | 55 | % | ||||||||
|
Phase Noise, 3.3V,156.25 MHz (Note 6) |
φN | –79 | dBc/Hz | 10 Hz | ||||||||
| –110 | 100 Hz | |||||||||||
| –130 | 1 kHz | |||||||||||
| –154 | 10 kHz | |||||||||||
| –160 | 100 kHz | |||||||||||
| –162 | 1 MHz | |||||||||||
| –163 | 10 MHz | |||||||||||
| –164 | 20 MHz | |||||||||||
|
Phase Jitter, 156.25 MHz, 12 kHz to 20 MHz (Note 6) |
φJ | — | 43 | 64 | fs | — | ||||||

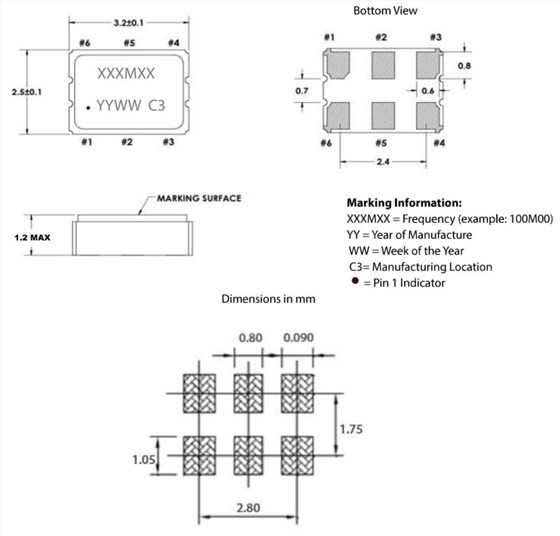

VC-830-EDF-GAAN-156M250000TR,3225mm,156.25MHz,Microchip品牌,尺寸圖
