美國斯塔克高性能有源晶體振蕩器介紹，In 1970, Statek Corporation was the first company to use semiconductor technologies such as photolithography, chemical milling and micromachining to manufacture quartz resonators in wafer form. Today, Statek remains at the forefront of innovation in the design, development and manufacturing of highly reliable, ultra-miniature quartzbased frequency control products.

 For over 50 years, we have supported military programs with state-of-the-art crystal resonators and oscillators. We offer a complete portfolio of frequency control products manufactured and tested to military standards: oscillators to MIL-PRF-55310 Product Level B and resonators to MIL-PRF-3098. Our dedicated servicing of the demanding requirements of the military market makes us a preferred supplier to most major defense contractors. All our products are designed, manufactured and tested in the United States.

1970年，Statek公司是第一家使用光刻等半導體技術的公司，化學銑削和微機械加工，以制造晶圓形式的石英諧振器。如今，Statek仍在在設計、開發和制造高可靠性、超小型石英基頻率控制產品方面處于創新前沿。
50多年來，我們一直用最先進的晶體諧振器和時鐘晶體振蕩器支持軍事項目。我們提供一整套按照軍事標準制造和測試的頻率控制產品：振蕩器符合MIL-PRF-55310產品等級B，諧振器符合MIL-PRF-3098。我們對軍事市場的苛刻要求使我們成為大多數主要國防承包商的首選供應商。我們所有的產品都是在美國設計、制造和測試的。
Statek’s core competence is its ability to design and manufacture ultra-miniature resonators in quartz wafers using its patented photolithographic and chemical milling processes.

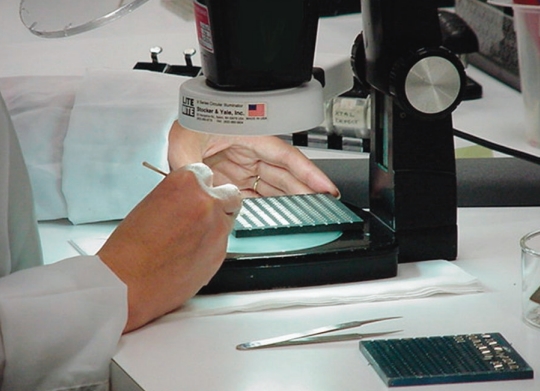

With complete vertical integration, Statek has total in-house control over the manufacturing of its products. From cutting quartz bars into wafers, to wafer lapping and polishing, to photolithographic processing and chemical milling in our Wafer Fab lines, to assembly and seal, Statek has the complete in-house capability to manufacture and test high-precision, extremely rugged and reliable ceramic-packaged quartz crystal resonators, oscillators and sensors.

Variable-size batch processing allows us to maintain efficient production with a high mix of both standard and custom devices.

Statek的核心能力是能夠使用其獲得專利的光刻和化學研磨工藝。

通過完全的垂直整合，Statek對其產品的制造擁有完全的內部控制權。從…起將石英棒切割成晶圓，晶圓研磨和拋光，光刻處理和化學處理在我們的晶圓廠生產線中進行銑削、組裝和密封，Statek擁有完整的內部制造能力并測試高精度、極其堅固可靠的陶瓷封裝石英晶體諧振器、有源晶體振蕩器和傳感器。
可變尺寸批量處理使我們能夠通過標準和自定義設備。美國斯塔克高性能有源晶體振蕩器介紹.

PRODUCT		PACKAGE (mm)	FREQUENCY RANGE (Click for Data Sheet)
CXOU		2.0 x 1.2	32 kHz to 100 kHz
CXOL		3.2 x 1.5	32 kHz to 100 kHz
CXOXULP Ultra Low Power		3.2 x 2.5	32.768 kHz
CX20		2.5 x 1.2	16 MHz to 100 MHz
CX18		1.6 x 1.0	30 MHz to 100 MHz
CX16		2.0 x 1.2	24 MHz to 100 MHz 32 kHz to 180 kHz
CX11		3.2 x 1.5	32 kHz to 240 kHz 14.7456 MHz to 250 MHz

PRODUCT		PACKAGE (mm)	FREQUENCY RANGE (Click for Data Sheet)
CXOLHG Shock to 100,000g		3.2 x 1.5	16 kHz to 32.768 kHz
CXOMKHG Shock to 100,000g		6.5 x 5.0	200 kHz to 200 MHz
CXOQHG Shock to 75,000g		2.5 x 2.0	16 kHz to 100 MHz
LHGAT Shock to 30,000g		7.0 x 5.0	32.768 kHz to 100 MHz
HGXO Shock to 100,000g		7.5 x 5.0	32.768 kHz to 50 MHz
STXOHG Shock to 100,000g Tight Frequency Stability		3.2 x 2.5	10 MHz to 70 MHz
CXOXLPN Shock to 100,000g		3.2 x 2.5	10 MHz to 125 MHz
MTXO, MTXOHG Tight Frequency Stability (±5ppm) High Shock		3.2 x 2.5	10 MHz to 50 MHz
CX1HG Shock to 100,000g		8.0 x 3.6	6 MHz to 250 MHz
CX4HG Shock to 100,000g		5.0 x 1.8	14 MHz to 50 MHz
CX11HG Shock to 75,000g		3.2 x 1.5	16 MHz to 50 MHz
CX16HG Shock to 50,000g		2.0 x 1.2	24 MHz to 50 MHz Contact Factory
CX18HG Shock to 75,000g		1.6 x 1.0	30 MHz to 50 MHz Contact Factory
CX20HG Shock to 75,000g		2.5 x 1.2	16 MHz to 100 MHz

We cultivate long-term relationships with our domestic suppliers to ensure stable sources of high-quality materials. We manufacture our resonators with high-grade cultured alpha-quartz. Swept quartz is also available for applications requiring radiation hardness. To simplify and minimize the device circuitry, we use oscillatorspecific integrated circuits. Lastly, we design our own ceramic packages, which are then manufactured by our sister company, AdTech Ceramics.

我們與確保穩定來源的國內供應商高質量材料。我們生產高級培養阿爾法石英諧振器。Swept石英也可用于應用需要輻射硬度。簡化和盡量減少設備電路，我們使用特定于有源晶振的集成電路。最后，我們設計我們自己的陶瓷包裝，然后由我們的姐妹公司AdTech Ceramics制造。

Statek provides the continuity of support required for long-term military programs. In addition to maintaining complete records and traceability, we are committed to supporting the life cycle of our customers’ products.

Statek晶振提供所需的連續性支持長期軍事計劃。除了保持完整的記錄和可追溯性，我們致力于支持我們客戶的產品。
The entire Statek organization is committed to ensuring that its products and services meet or exceed its customers’ expectations. Through continuous improvement, Statek has developed a quality system that incorporates AS9100 and ISO 9001.

Statek設計和制造了一系列非常適合醫療電子行業的高可靠性產品。

主要特點:超小型陶瓷封裝，非磁性的，氦不可滲透的，低老化，低功耗，快速啟動

應用范圍：心律管理，神經刺激器，Rf遙測技術，輸液泵。C耳蝸植入物。矯形植入物，視網膜和青光眼植入物病人監護設備.
