86-0755-27838351
康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
康華爾電子擁有先進的設備,一流的生產技術,致力于為用戶提供小型,薄型,高精密石英晶振,貼片晶體,石英晶體振蕩器.多年來康華爾電子通過自身努力,獲得多個進口貼片晶振品牌代理權限,比如,KDS晶振,NDK晶振,京瓷晶振,TXC晶振,鴻星晶振,CTS晶振,IDT晶振等.康華爾進口晶振代理商,所提供產品均符合國際ROHS環保指令,并且獲得ISO9001國際認證,產品價格優勢,交期快,咨詢熱線0755-27838351.
高精度的SMD振蕩器深受智能家居應用的追棒ECS-8FMX-080-T，在比較石英和 MEMS 的頻率與溫度穩定性時。您會看到基于石英貼片晶振的振蕩器遵循 AT 晶體的連續三次曲線，并在 -40°C ~ +85°C 范圍內達到 ±25 ppm，這對于大多數應用來說已經足夠了。
查看 MEMS 圖，它似乎具有更好的頻率與溫度特性，但如果仔細觀察，您會發現該圖顯示了在調整 PLL 分頻比以補償溫度變化時引起的頻率跳躍。這會導致顯著的頻率跳躍，以補償 MEMS 諧振器的顯著頻率漂移（30 ppm/°C 或 3750 ppm -40°C ~ +85°C）

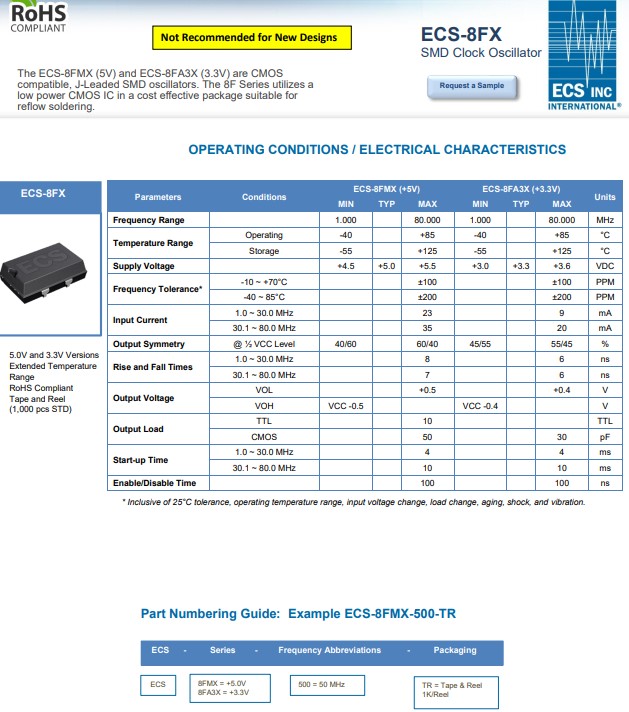

| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Operating Temperature 工作溫度 |
| ECS-8FM-024-TR | ECS晶振 | ECS-8F | 2.4576MHz | -40°C ~ 85°C |
| ECS-8FM-143-TR | ECS晶振 | ECS-8F | 14.31818MHz | -40°C ~ 85°C |
| ECS-8FM-143-TR | ECS晶振 | ECS-8F | 14.31818MHz | -40°C ~ 85°C |
| ECS-8FM-143-TR | ECS晶振 | ECS-8F | 14.31818MHz | -40°C ~ 85°C |
| ECS-8FMX-080-TR | ECS晶振 | ECS-8FX | 8MHz | -40°C ~ 85°C |
| ECS-8FMX-080-TR |
ECScrystal晶振 |
ECS-8FX | 8MHz | -40°C ~ 85°C |
| ECS-8FMX-080-TR | ECS晶振 | ECS-8FX | 8MHz | -40°C ~ 85°C |
| ECS-8FA3X-245.7-TR | ECS晶振 | ECS-8FX | 24.576MHz | -40°C ~ 85°C |
| ECS-8FA3X-245.7-TR | ECS晶振 | ECS-8FX | 24.576MHz | -40°C ~ 85°C |
| ECS-8FA3X-245.7-TR | ECS晶振 | ECS-8FX | 24.576MHz | -40°C ~ 85°C |
| ECS-8FM-040-TR | ECS晶振 | ECS-8F | 4MHz | -40°C ~ 85°C |
| ECS-8FM-040-TR | ECS晶振 | ECS-8F | 4MHz | -40°C ~ 85°C |
| ECS-8FM-040-TR | ECS晶振 | ECS-8F | 4MHz | -40°C ~ 85°C |
| ECS-8FMX-040-TR | ECS晶振 | ECS-8FX | 4MHz | -40°C ~ 85°C |
| ECS-8FMX-040-TR | ECS晶振 | ECS-8FX | 4MHz | -40°C ~ 85°C |
| ECS-8FMX-040-TR | ECS晶振 | ECS-8FX | 4MHz | -40°C ~ 85°C |
石英在溫度范圍內比 MEMS 更穩定，并提供高“Q”性能。基于石英的振蕩器不需要采用溫度補償來在所需溫度范圍內保持低至 ±10 ppm 的穩定性。如果需要更好的穩定性，您可以向石英晶體振蕩器添加溫度補償，并在整個溫度范圍內獲得低至 0.5 ppm 的穩定性。
When comparing the Frequency vs. Temperature stability of quartz and MEMS. You see that the quartz-based oscillator follows the continuous cubic curve of an AT crystal and achieves ±25 ppm from -40°C ~ +85°C, which is good enough for most applications.
Looking at the MEMS plot it appears to have better frequency vs. temperature characteristics, but if you look closely you can see that the plot shows frequency jumps caused when the PLL division ratio is adjusted to compensate for changes in temperature. This causes significant Frequency jumps in order to compensate for the considerable frequency drift of the MEMS resonator (30 ppm/°C or 3750 ppm -40°C ~ +85°C)
Quartz is much more stable over temperature than MEMS and offers high “Q” performance. The quartz-based oscillator does not need to employ temperature compensation to maintain stabilities as low as ±10 ppm over the required temperature range. If better stabilities are required, you can add temperature compensation to a quartz oscillator and get stabilities as low as 0.5 ppm over temperature.
