艾博康XO振蕩器ASFL1-25.000MHZ-EC-T專用于錄像機CCD時鐘,Abracon has confronted this challenge by introducing the Continuous Voltage SMD Oscillator family, which includes MHz SPXO, kHz SPXO and TCXO types. This paper will focus on the recently launched ASADV, ASDDV and ASEDV MHz simple packaged crystal oscillator (SPXO) devices that are designed for simplicity and optimized for low-power consumption while eliminating the need for a set bias voltage (VDD).
Abracon通過推出連續電壓SMD振蕩器系列來應對這一挑戰，其中包括MHz SPXO晶振, kHz SPXO和TCXO類型。本文將重點介紹最近推出的ASADV、ASDDV和ASEDV MHz簡單封裝晶體振蕩器(SPXO)器件，這些器件設計簡單，針對低功耗進行了優化，同時消除了設置偏置電壓(VDD)的需要。
| Manufacturer Part Number | Manufacturer品牌 | Series | Type 類型 | Frequency 頻率 | Voltage - Supply電壓 | Operating Temperature工作溫度 |
| ASAK-32.768KHZ-LRS-T | Abracon晶振 | ASAK | XO (Standard) | 32.768kHz | 3.3V | -40°C ~ 85°C |
| ASAK1-32.768KHZ-LRS-T | Abracon晶振 | ASAK | XO (Standard) | 32.768kHz | 2.5V | -40°C ~ 85°C |
| ASAK2-32.768KHZ-LRS-T | Abracon晶振 | ASAK | XO (Standard) | 32.768kHz | 1.8V | -40°C ~ 85°C |
| ASV-27.000MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 27MHz | 3.3V | -20°C ~ 70°C |
| ASV-60.000MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 60MHz | 3.3V | -20°C ~ 70°C |
| ASV-18.432MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 18.432MHz | 3.3V | -20°C ~ 70°C |
| ASV-29.4912MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 29.4912MHz | 3.3V | -20°C ~ 70°C |
| ASV-8.000MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 8MHz | 3.3V | -20°C ~ 70°C |
| ASV-24.000MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 24MHz | 3.3V | -20°C ~ 70°C |
| ASV-16.384MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 16.384MHz | 3.3V | -20°C ~ 70°C |
| ASV-33.333MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 33.333MHz | 3.3V | -20°C ~ 70°C |
| ASV-30.000MHZ-E-T | Abracon晶振 | ASV | XO (Standard) | 30MHz | 3.3V | -20°C ~ 70°C |
| ASE-40.000MHZ-L-C-T | Abracon晶振 | ASE | XO (Standard) | 40MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-25.000MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 25MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-25.000MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 25MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-32.768MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 32.768MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-50.000MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 50MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-33.333MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 33.333MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-8.000MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 8MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-7.3728MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 7.3728MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-16.384MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 16.384MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-27.000MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 27MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-27.000MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 27MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-3.6864MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 3.6864MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-11.0592MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 11.0592MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-4.000MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 4MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-24.576MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 24.576MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-40.000MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 40MHz | 3.3V | -20°C ~ 70°C |
| ASFL1-48.000MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 48MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-32.000MHZ-L-T | Abracon有源晶振 | ASFL1 | XO (Standard) | 32MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-33.333MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 33.333MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-14.7456MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 14.7456MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-40.000MHZ-L-T | Abracon晶振 | ASFL1 | XO (Standard) | 40MHz | 3.3V | -40°C ~ 85°C |
| ASV-10.000MHZ-LCS-T | Abracon晶振 | ASV | XO (Standard) | 10MHz | 3.3V | -40°C ~ 85°C |
| ASFL1-64.000MHZ-EC-T | Abracon晶振 | ASFL1 | XO (Standard) | 64MHz | 3.3V | -20°C ~ 70°C |
| ASVTX-11-121-19.200MHZ-T | Abracon晶振 | ASVTX-11 | VCTCXO | 19.2MHz | 3.3V | -40°C ~ 85°C |
| ASE-60.000MHZ-ET | Abracon晶振 | ASE | XO (Standard) | 60MHz | 3.3V | -20°C ~ 70°C |
| ASE2-12.500MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 12.5MHz | 2.5V | -20°C ~ 70°C |
| ASE-22.000MHZ-ET | Abracon晶振 | ASE | XO (Standard) | 22MHz | 3.3V | -20°C ~ 70°C |
| ASE2-27.000MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 27MHz | 2.5V | -20°C ~ 70°C |
| ASE2-32.000MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 32MHz | 2.5V | -20°C ~ 70°C |
| ASE2-48.000MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 48MHz | 2.5V | -20°C ~ 70°C |
| ASE-48.000MHZ-ET | Abracon晶振 | ASE | XO (Standard) | 48MHz | 3.3V | -20°C ~ 70°C |
| ASE-13.500MHZ-ET | Abracon晶振 | ASE | XO (Standard) | 13.5MHz | 3.3V | -20°C ~ 70°C |
| ASE-25.000MHZ-ET | Abracon晶振 | ASE | XO (Standard) | 25MHz | 3.3V | -20°C ~ 70°C |
| ASE-40.000MHZ-ET | Abracon晶振 | ASE | XO (Standard) | 40MHz | 3.3V | -20°C ~ 70°C |
| ASE2-50.000MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 50MHz | 2.5V | -20°C ~ 70°C |
| ASE2-30.000MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 30MHz | 2.5V | -20°C ~ 70°C |
| ASE2-25.000MHZ-ET | Abracon晶振 | ASE2 | XO (Standard) | 25MHz | 2.5V | -20°C ~ 70°C |
| ASA-16.000MHZ-L-T | Abracon晶振 | ASA | XO (Standard) | 16MHz | 3.3V | -40°C ~ 85°C |

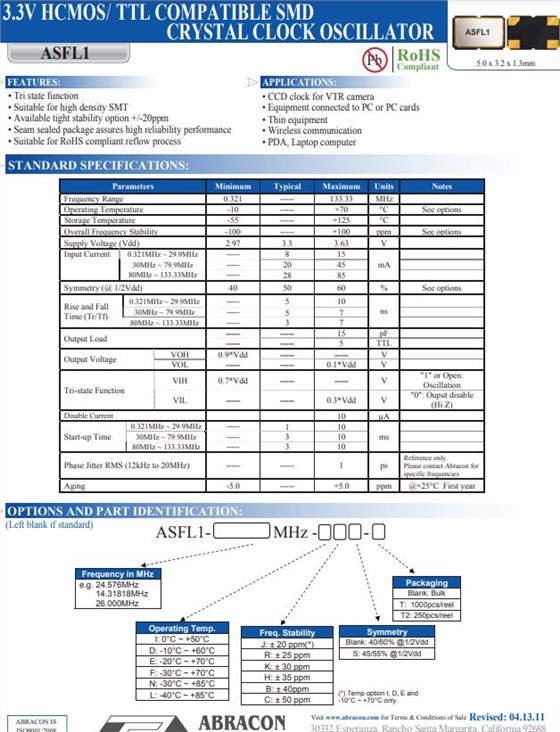

艾博康晶振公司利用自身的實力開發性能優越的產品編碼ASFL1-25.000MHZ-EC-T,是一款金屬面貼片型的XO時鐘振蕩器,OSC晶振,尺寸為5032mm,頻率為25MHz,輸出為HCMOS，TTL XO（標準），電壓 3.3V ，腳位 4-SMD.特點:Pb RoHS 5.0 x 3.2 x 1.3mm兼容，三態功能，適用于高密度SMT，可選擇緊密穩定性+/-20ppm，接縫密封包裝，確保高可靠性性能，適用于符合RoHS標準的回流工藝.
應用程序:用于錄像機的CCD時鐘，設備連接到PC或PC卡，輕薄的設備，無線通信，PDA、筆記本電腦.
