Skyworks衛星導航晶振\Si591低耗能差分晶振\591AB360M000DG，尺寸7.0x5.0mm，頻率360MHZ，輸出邏輯LVPECL，電壓3.3V，頻率穩定性25ppm，Skyworks有源晶振，思佳訊差分振蕩器，歐美進口晶振，LV-PECL差分晶振，7050mm差分晶振，貼片差分晶振，有源差分晶振，差分石英振蕩器，六腳差分振蕩器，LVPECL輸出晶振，差分晶體振蕩器，高頻差分晶振，低電壓差分晶振，低耗能差分晶振，高精度差分晶振，低損耗差分振蕩器，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，衛星導航差分晶振，移動電話差分晶振，發射器差分晶振，6G基站專用差分晶振，測試測量差分晶振，電信應用差分晶振，智能機器人專用差分晶振，具有良好的耐壓性能。差分晶振產品特別適合用于衛星導航，移動電話，發射器，6G基站，測試測量，電信應用，智能機器人等領域.Skyworks衛星導航晶振\Si591低耗能差分晶振\591AB360M000DG.

Skyworks衛星導航晶振\Si591低耗能差分晶振\591AB360M000DG 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage1	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75
		1.8 V option	1.71	1.8	1.89
Supply Current	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	110 100 90 80	125 110 100 90	mA
		Tristate mode	—	60	75
Output Enable (OE)2		VIH	0.75 x VDD	—	—	V
		VIL	—	—	0.5
Operating Temperature Range	TA		–40	—	85	ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Nominal Frequency1,2

LVPECL/LVDS/CML

360

MHz

CMOS

—

160

Initial Accuracy

Measured at +25 °C at time of
shipping

—

±1.5

—

ppm

Total Stability

Note 3, second option code “D”

±20

ppm

Note 3, second option code “C”

±30

ppm

Note 4, second option code “B”

—

±50

ppm

Note 4, second option code “A”

—

±100

ppm

Temperature Stability

second option code “D”

—

±7

ppm

second option code “C”

±20

ppm

second option code “B”

±25

ppm

second option code “A”

—

±50

ppm

Powerup Time5

tOSC

—

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

LVPECL Output Option1

mid-level

VDD– 1.42

VDD– 1.25

VOD

swing(diff)

1.1

1.9

VPP

VSE

swing (single-ended)

0.55

0.95

VPP

LVDS Output Option2

mid-level

1.125

1.20

1.275

VOD

swing (diff)

0.5

0.7

0.9

VPP

CML Output Option2

2.5/3.3 V option mid-level

—

VDD– 1.30

—

1.8 V option mid-level

—

VDD– 0.36

—

VOD

2.5/3.3 V option swing (diff)

1.10

1.50

1.90

VPP

1.8 V option swing (diff)

0.35

0.425

0.50

CMOS Output Option3

VOH

0.8 x VDD

—

VDD

VOL

—

0.4

Rise/Fall time (20/80%)

tR,tF

LVPECL/LVDS/CML

—

350

CMOS with CL= 15 pF

—

Symmetry (duty cycle)

SYM

LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2

—

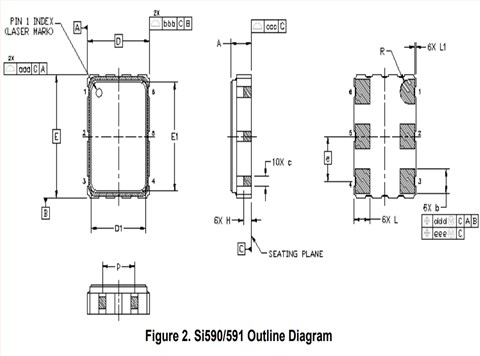

Skyworks衛星導航晶振\Si591低耗能差分晶振\591AB360M000DG 尺寸圖

Skyworks衛星導航晶振\Si591低耗能差分晶振\591AB360M000DG

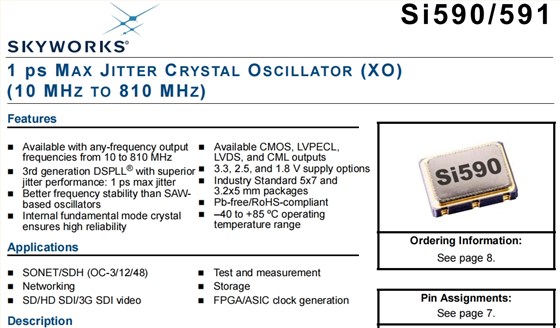

產品特點：

可用于任何頻率輸出頻率從10到810兆赫

具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps

比基于SAW的振蕩器具有更好的頻率穩定性

內部基模晶體確保高可靠性

可用的CMOS、LVPECL有源晶振、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7和3.2x5 mm包裝

無鉛/符合RoHS

–40至+85ºC運行溫度范圍

Mfr Part #	晶振廠家	Description	Series	Frequency	Output
591AD155M520DGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si591	155.52 MHz	LVPECL
591AD156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si591	156.25 MHz	LVPECL
591AD156M254DGR	Skyworks有源晶振	XTAL OSC XO 156.2540MHZ LVPECL	Si591	156.254 MHz	LVPECL
591AD165M000DGR	Skyworks有源晶振	XTAL OSC XO 165.0000MHZ LVPECL	Si591	165 MHz	LVPECL
591AD165M254DGR	Skyworks有源晶振	XTAL OSC XO 165.2540MHZ LVPECL	Si591	165.254 MHz	LVPECL
591BD000285DGR	Skyworks有源晶振	XTAL OSC XO 170.678278MHZ LVDS	Si591	170.678278 MHz	LVDS
591BD000292DGR	Skyworks有源晶振	XTAL OSC XO 292.0000KHZ LVDS SMD	Si591	292 kHz	LVDS
591BD148M500DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si591	148.5 MHz	LVDS
591BD155M520DGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si591	155.52 MHz	LVDS
591BD156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si591	156.25 MHz	LVDS
591BD160M000DGR	Skyworks有源晶振	XTAL OSC XO 160.0000MHZ LVDS SMD	Si591	160 MHz	LVDS
591BD200M000DGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si591	200 MHz	LVDS
591BD210M000DGR	Skyworks有源晶振	XTAL OSC XO 210.0000MHZ LVDS SMD	Si591	210 MHz	LVDS
591FD147M456DGR	Skyworks有源晶振	XTAL OSC XO 147.4560MHZ LVDS SMD	Si591	147.456 MHz	LVDS
591FD148M500DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si591	148.5 MHz	LVDS
591FD200M000DGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si591	200 MHz	LVDS
591ND166M667DGR	Skyworks有源晶振	XTAL OSC XO 166.6670MHZ LVDS SMD	Si591	166.667 MHz	LVDS
591FD156M250DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	156.25 MHz	LVDS
591FD004691DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	127.221875 MHz	LVDS
591SD156M250DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	156.25 MHz	LVDS
591FB000127DGR	Skyworks有源晶振	XTAL OSC XO 127.0000KHZ LVDS SMD	Si591	127 kHz	LVDS
591AB250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVPECL	Si591	250 MHz	LVPECL
591AB307M200DG	Skyworks有源晶振	XTAL OSC XO 307.2000MHZ LVPECL	Si591	307.2 MHz	LVPECL
591AB312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVPECL	Si591	312.5 MHz	LVPECL
591AB340M000DG	Skyworks有源晶振	XTAL OSC XO 340.0000MHZ LVPECL	Si591	340 MHz	LVPECL
591AB345M000DG	Skyworks有源晶振	XTAL OSC XO 345.0000MHZ LVPECL	Si591	345 MHz	LVPECL
591AB360M000DG	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVPECL	Si591	360 MHz	LVPECL
591BB250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si591	250 MHz	LVDS
591BB275M000DG	Skyworks有源晶振	XTAL OSC XO 275.0000MHZ LVDS SMD	Si591	275 MHz	LVDS
591BB295M000DG	Skyworks有源晶振	XTAL OSC XO 295.0000MHZ LVDS SMD	Si591	295 MHz	LVDS
591BB312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS
591BB360M000DG	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVDS SMD	Si591	360 MHz	LVDS
591FB266M666DG	Skyworks有源晶振	XTAL OSC XO 266.6660MHZ LVDS SMD	Si591	266.666 MHz	LVDS
591FB270M000DG	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS
591FB312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS
591FB320M000DG	Skyworks有源晶振	XTAL OSC XO 320.0000MHZ LVDS SMD	Si591	320 MHz	LVDS
591FB400M000DG	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	Si591	400 MHz	LVDS
591MB400M000DG	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVPECL	Si591	400 MHz	LVPECL
591NB270M000DG	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS
591AB250M000DGR	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVPECL	Si591	250 MHz	LVPECL
591AB307M200DGR	Skyworks有源晶振	XTAL OSC XO 307.2000MHZ LVPECL	Si591	307.2 MHz	LVPECL
591AB312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVPECL	Si591	312.5 MHz	LVPECL
591AB340M000DGR	Skyworks有源晶振	XTAL OSC XO 340.0000MHZ LVPECL	Si591	340 MHz	LVPECL
591AB345M000DGR	Skyworks有源晶振	XTAL OSC XO 345.0000MHZ LVPECL	Si591	345 MHz	LVPECL
591AB360M000DGR	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVPECL	Si591	360 MHz	LVPECL
591BB250M000DGR	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si591	250 MHz	LVDS
591BB275M000DGR	Skyworks有源晶振	XTAL OSC XO 275.0000MHZ LVDS SMD	Si591	275 MHz	LVDS
591BB295M000DGR	Skyworks有源晶振	XTAL OSC XO 295.0000MHZ LVDS SMD	Si591	295 MHz	LVDS
591BB300M000DGR	Skyworks有源晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	Si591	300 MHz	LVDS
591BB312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS
591BB360M000DGR	Skyworks有源晶振	XTAL OSC XO 360.0000MHZ LVDS SMD	Si591	360 MHz	LVDS
591FB266M666DGR	Skyworks有源晶振	XTAL OSC XO 266.6660MHZ LVDS SMD	Si591	266.666 MHz	LVDS
591FB270M000DGR	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS
591FB312M500DGR	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si591	312.5 MHz	LVDS
591FB320M000DGR	Skyworks有源晶振	XTAL OSC XO 320.0000MHZ LVDS SMD	Si591	320 MHz	LVDS
591FB400M000DGR	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	Si591	400 MHz	LVDS
591MB400M000DGR	Skyworks有源晶振	XTAL OSC XO 400.0000MHZ LVPECL	Si591	400 MHz	LVPECL
591NB270M000DGR	Skyworks有源晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	Si591	270 MHz	LVDS
591NB500M000DGR	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVDS SMD	Si591	500 MHz	LVDS
591BB270M000DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si591	270 MHz	LVDS
591BB257M812DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	257.812 MHz	LVDS
591NB000274DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	322.265625 MHz	LVDS
591BB004647DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	257.8125 MHz	LVDS
591BB000274DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	322.265625 MHz	LVDS
591FF266M667DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si591	266.667 MHz	LVDS
591AD000391DG	Skyworks有源晶振	XTAL OSC XO 391.0000KHZ LVPECL	Si591	391 kHz	LVPECL
591AD004636DG	Skyworks有源晶振	XTAL OSC XO 4.6360MHZ LVPECL SMD	Si591	4.636 MHz	LVPECL
591AD148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVPECL	Si591	148.5 MHz	LVPECL
591AD150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVPECL	Si591	150 MHz	LVPECL
591AD152M520DG	Skyworks有源晶振	XTAL OSC XO 152.5200MHZ LVPECL	Si591	152.52 MHz	LVPECL
591AD155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si591	155.52 MHz	LVPECL
591AD156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si591	156.25 MHz	LVPECL
591AD156M254DG	Skyworks有源晶振	XTAL OSC XO 156.2540MHZ LVPECL	Si591	156.254 MHz	LVPECL
591AD165M000DG	Skyworks有源晶振	XTAL OSC XO 165.0000MHZ LVPECL	Si591	165 MHz	LVPECL
