ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振，英國進口晶振，AEL艾爾晶振，型號：ELS07系列，編碼為：ELS07-32.768kHz-T，頻率：32.768KHz時鐘晶振，負載電容：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.75mm，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，SMD石英晶體。具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點。應用于：移動通訊晶振，鐘表晶振，無線藍牙晶振，儀器設備晶振，數字顯示等應用。
ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振，產品特點：
•公差：±20ppm，±10ppm可用
•工作溫度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

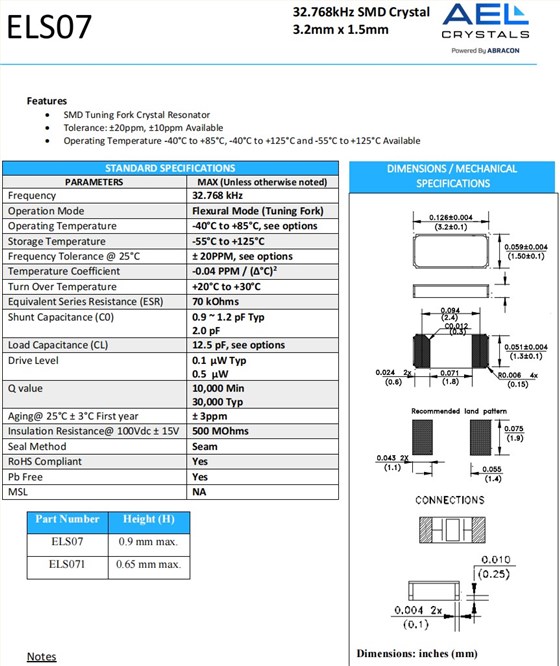

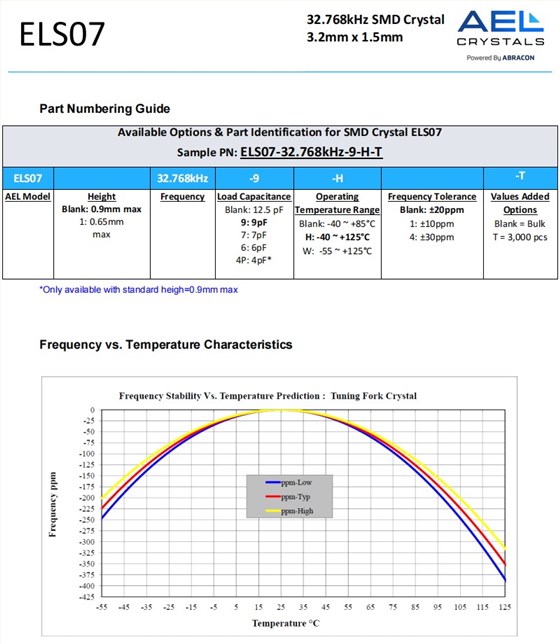

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振,參數表
PARAMETERS
MAX (Unless otherwise noted)
Frequency
32.768 kHz
Operation Mode
Flexural Mode (Tuning Fork)
Operating Temperature
-40°C to +85°C, see options
Storage Temperature
-55°C to +125°C
Frequency Tolerance @ 25°C
± 20PPM, see options
Temperature Coefficient
-0.04 PPM / (△°C)2
Turn Over Temperature
+20°C to +30°C
Equivalent Series Resistance (ESR)
70 kOhms
Shunt Capacitance (C0)
0.9 ~ 1.2 pF Typ
2.0 pF
Load Capacitance (CL)
12.5 pF, see options
Drive Level
0.1 μW Typ
0.5 μW
Q value
10,000 Min
30,000 Typ
Aging@ 25°C ± 3°C First year
± 3ppm
Insulation Resistance@ 100Vdc ± 15V
500 MOhms
Seal Method
Seam
RoHS Compliant
Yes
Pb Free
Yes
MSL
NA

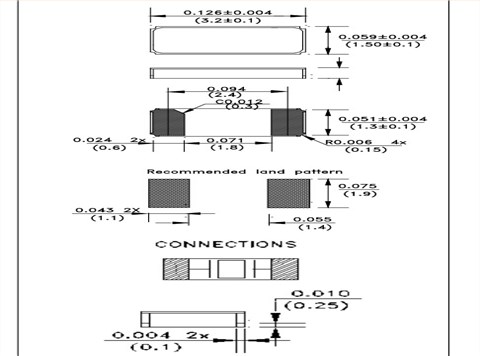

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 負載電容 | 長度 | 寬度 | 高度 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | ELLS | 10 MHz | 20 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | ELLS | 12 MHz | 18 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | ELLS | 13.56 MHz | 10 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | ELLS | 30 MHz | 10 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | ELLS | 4 MHz | 30 pF | 12.3mm | 4.6mm | 4.3mm |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | ELLS | 8 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | ELM10 | 16 MHz | 8 pF | 2.5mm | 2mm | 0.5mm |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | 24 MHz | 16 pF | 2.5mm | 2mm | 0.5mm |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | ELM11 | 32 MHz | 10 pF | 2mm | 1.6mm | 0.5mm |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | 24 MHz | 6 pF | 1.6mm | 1.2mm | 0.4mm |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | ELM3 | 12 MHz | 30 pF | 5mm | 3.2mm | 1mm |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | ELM3 | 14 MHz | 30 pF | 5mm | 3.2mm | 1mm |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | 24 MHz | 18 pF | 5mm | 3.2mm | 1mm |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | ELM3 | 8.057 MHz | 18 pF | 5mm | 3.2mm | 1mm |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | ELM8 | 12 MHz | 10 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | ELM8 | 12.5829 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | ELM8 | 14.8 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | ELM8 | 18.432 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-10-R60-D1W-T | 石英晶振 | ELM8 | 24 MHz | 10 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | ELM8 | 24 MHz | 18 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | ELM8 | 24 MHz | 9 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | ELM8 | 26 MHz | 18 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | ELM8 | 32 MHz | 16 pF | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | ELM8 | 32 MHz | 9 pF | 3mm | 2.5mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | ELS05 | 32.768 kHz | 9 pF | 1.6mm | 1mm | 0.5mm |
| ELS06-32.768kHz-9-T | AEL晶振 | ELS06 | 32.768 kHz | 9 pF | 2mm | 1.2mm | 0.6mm |
| ELS07-32.768kHz-6-T | AEL晶振 | ELS07 | 32.768 kHz | 6 pF | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | ELS07 | 32.768 kHz | 12.5 pF | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | ELS13 | 32.768 kHz | 7 pF | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | ELS13 | 32.768 kHz | 9 pF | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | ELS13 | 32.768 kHz | 12.5 pF | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | ELS25 | 32.768 kHz | 6 pF | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | ELS25 | 32.768 kHz | 12.5 pF | 8mm | 3.8mm | 2.4mm |
