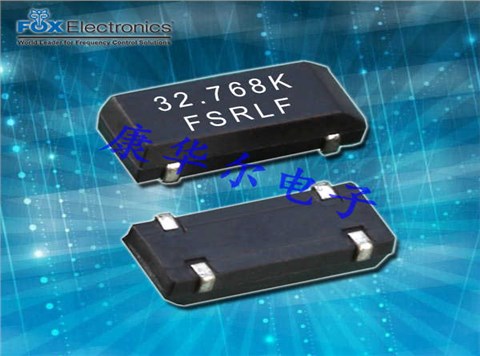

FSRLF327-6,FSRLF,32.768kHz,8038mm,FOX晶振,智能家居晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FSRLF，編碼為：FSRLF327-6，頻率：32.768KHz，負載：6pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.7x3.8mm，陶瓷晶振，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛晶振，具有超小型晶振，輕薄型晶振，高品質晶振，高可靠性晶振，耐熱及耐環境特點。應用于：移動通訊晶振，智能家居晶振，時鐘晶振，儀器儀表設備晶振，車載晶振，無線藍牙晶振，數碼電子等應用。

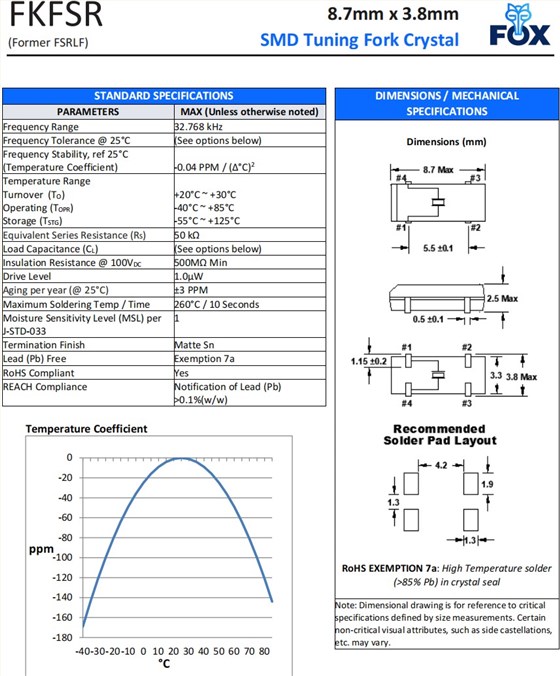

FSRLF327-6,FSRLF,32.768kHz,8038mm,FOX晶振,智能家居晶振,參數表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||
| Frequency Range | 32.768 kHz | ||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||
|
Frequency Stability, ref 25°C (Temperature Coefficient) |
-0.04 PPM / (△°C)2 | ||||||||||
|
Temperature Range Turnover(TO) Operating (TOPR) Storage (TSTG) |
+20°C ~ +30°C -40°C ~ +85°C -55°C ~ +125°C |
||||||||||
| Equivalent Series Resistance (RS) | 50 kΩ | ||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||
| Insulation Resistance @ 100VDC | 500MΩMin | ||||||||||
| Drive Level | 1.0µW | ||||||||||
| Aging per year (@ 25°C) | ±3 PPM | ||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds | ||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
1 | ||||||||||
| Termination Finish | Matte Sn | ||||||||||
| Lead (Pb) Free | Exemption 7a | ||||||||||
| RoHS Compliant | Yes | ||||||||||
| REACH Compliance |
Notification of Lead (Pb) >0.1%(w/w) |

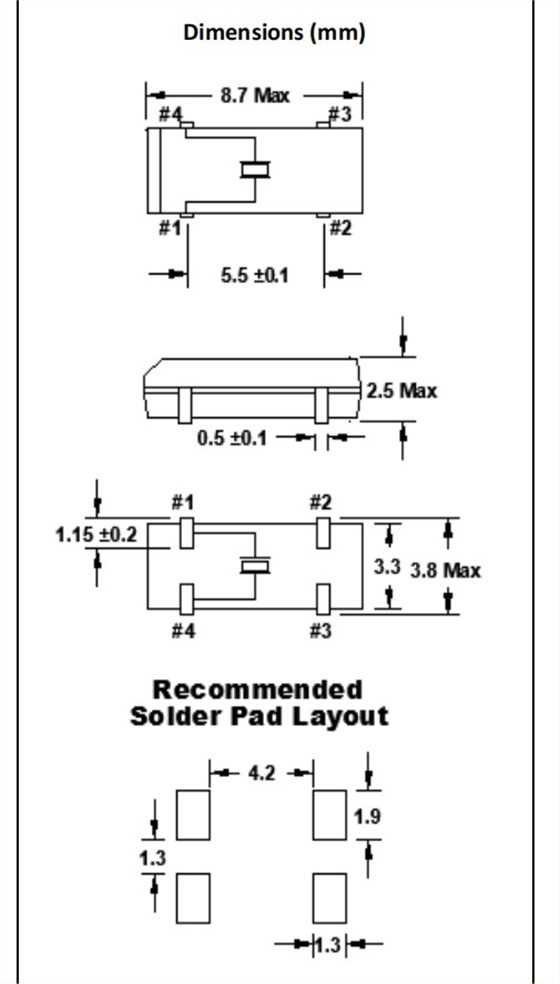

FSRLF327-6,FSRLF,32.768kHz,8038mm,FOX晶振,智能家居晶振,尺寸圖
| 原廠編碼 | 歐美晶振 | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FOXSDLF/120-20 | Fox晶振 | HC49SDLF | 12MHz | HC49/US | ±50ppm |
| FX135A-327 | Fox晶振 | FX135A | 32.768kHz | 2-SMD, No Lead | - |
| FSRLF327 | Fox晶振 | FSRLF | 32.768kHz | 4-SOJ, 5.50mm pitch | - |
| FSXLF327 | Fox晶振 | FSXLF | 32.768kHz | 4-SMD, Flat Lead, 3 Leads | - |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FSMLF327 | Fox晶振 | FSMLF | 32.768kHz | 4-SOJ, 2.29mm pitch | - |
| FOXSDLF/160-20 | Fox晶振 | HC49SDLF | 16MHz | HC49/US | ±50ppm |
| FOXSDLF/200-20 | Fox晶振 | HC49SDLF | 20MHz | HC49/US | ±50ppm |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FOXSLF/200-20 | Fox晶振 | HC49SLF | 20MHz | HC49/US | ±50ppm |
| FOXSLF/120-20 | Fox晶振 | HC49SLF | 12MHz | HC49/US | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FOXLF200-20 | Fox晶振 | HC49ULF | 20MHz | HC49/U | ±50ppm |
| NC38LF-327 | Fox晶振 | NC38LF | 32.768kHz | Cylindrical Can, Radial | - |
| NC26LF-327 | Fox晶振 | NC26LF | 32.768kHz | Cylindrical Can, Radial | - |
| FOXSDLF/120R-20/TR | Fox晶振 | HC49SDLF | 12MHz | HC49/US | ±50ppm |
| FSRLF327-6 | Fox晶振 | FSRLF | 32.768kHz | 4-SOJ, 5.50mm pitch | - |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX122-327 | Fox晶振 | FX122 | 32.768kHz | 2-SMD, No Lead | - |
| FOXSLF/160-20 | Fox晶振 | HC49SLF | 16MHz | HC49/US | ±50ppm |
| FOXSLF/160 | Fox晶振 | HC49SLF | 16MHz | HC49/US | ±50ppm |
| FOXSLF/128-20 | Fox晶振 | HC49SLF | 12.288MHz | HC49/US | ±50ppm |
| FOXSLF/245F-20 | Fox晶振 | HC49SLF | 24.576MHz | HC49/US | ±50ppm |
| FOXSLF/120 | 貼片晶振 | HC49SLF | 12MHz | HC49/US | ±50ppm |
| FOXLF120-20 | Fox晶振 | HC49ULF | 12MHz | HC49/U | ±50ppm |
| FOXLF160 | Fox晶振 | HC49ULF | 16MHz | HC49/U | ±50ppm |
| FOXLF160-20 | Fox晶振 | HC49ULF | 16MHz | HC49/U | ±50ppm |
| FOXSDLF/245F-20 | Fox晶振 | HC49SDLF | 24.576MHz | HC49/US | ±50ppm |
| FOXSDLF/160R-20/TR | Fox晶振 | HC49SDLF | 16MHz | HC49/US | ±50ppm |
| FOXSDLF/200R-20/TR | Fox晶振 | HC49SDLF | 20MHz | HC49/US | ±50ppm |
| FOXSDLF/245FR-20/TR | Fox晶振 | HC49SDLF | 24.576MHz | HC49/US | ±50ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FOXLF120 | Fox晶振 | HC49ULF | 12MHz | HC49/U | ±50ppm |
| FOXSDLF/128-20 | Fox晶振 | HC49SDLF | 12.288MHz | HC49/US | ±50ppm |
| FOXSLF/200 | Fox晶振 | HC49SLF | 20MHz | HC49/US | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF120-20 | Fox晶振 | FPXLF | 12MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF160 | Fox晶振 | FPXLF | 16MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF160-20 | Fox晶振 | FPXLF | 16MHz | 4-SMD, No Lead | ±50ppm |
| FPXLF200-20 | Fox晶振 | FPXLF | 20MHz | 4-SMD, No Lead | ±50ppm |
