X1G0051410005,SG3225HBN差分晶振,EPSON振蕩器,6G通信晶振，尺寸為3.2x2.5mm，頻率125MHZ，輸出邏輯HCSL，貼片差分晶振，HCSL輸出晶振，HCSL差分晶振，低耗能差分晶振，低抖動差分晶振，低相位差分振蕩器，低相噪差分晶振，有源差分振蕩器，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡專用差分晶振，SG3225HBN是一款低抖動、HCSL輸出的晶體振蕩器。此產品作為PCI Express®非常出色參考時鐘會議PCIe®1.0到PCIe®5.0抖動要求，差分貼片晶振產品非常適合用于服務器，NIC, HBA，PCI Express®（PCI Express®），串行通信，各種高速串行通信等領域。X1G0051410005,SG3225HBN差分晶振,EPSON振蕩器,6G通信晶振.

X1G0051410005,SG3225HBN差分晶振,EPSON振蕩器,6G通信晶振參數表

Item	Symbol	Specifications	Conditions / Remarks
Output frequency range	f0	125MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	D:2.5V ±0.125V, C:3.3V ±0.165V
Storage temperature	T_stg	-55℃ to +125℃	Store as bare product.
Operating temperature	T_use	G: -40℃ to +85℃, H: -40℃ to +105℃
Frequency tolerance	f_tol	J: ± 50 × 10-6 (Not available H: -40℃ to +105℃)	Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
Frequency tolerance	f_tol	L: ± 100 × 10-6	Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
Current consumption	ICC	25 mA Typ. , 35mA Max.	OE=VCC,with output load
Disable current	I_dis	15mA Max.	OE=GND
Symmetry	SYM	45% to 55%	At outputs crossing point
Output voltage	VOH	0.75 V Typ., 0.66V to 0.85V	DC characteristics, single output
Output voltage	VOL	0 V Typ., -0.15V to 0.15V	DC characteristics, single output
Crossing voltage	VCR	0.25V to 0.55V
Output load condition	L_HCSL	50Ω
Output load condition	RS	33Ω
Input voltage	VIH	70% VCCMin.	OE terminal
Input voltage	VIL	30% VCCMax.	OE terminal
Differential output rise slew rate/ fall slew rate	Rr / Rf	1 V/ns to 4V/ns	Between -0.15 V and 0.15 V of differential output
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0 s

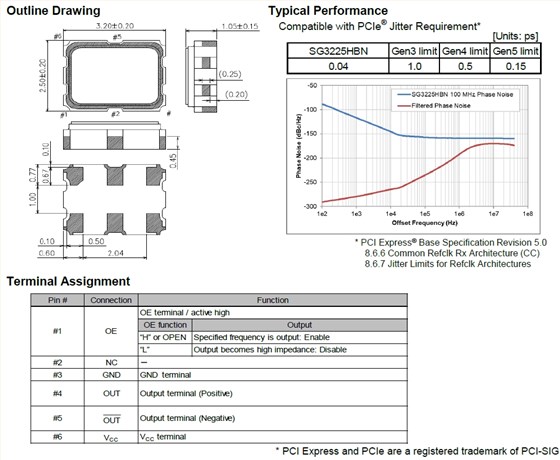

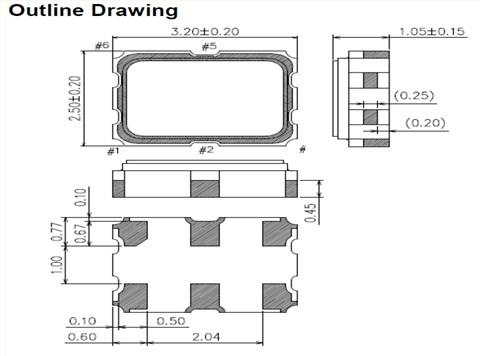

X1G0051410005,SG3225HBN差分晶振,EPSON振蕩器,6G通信晶振尺寸圖

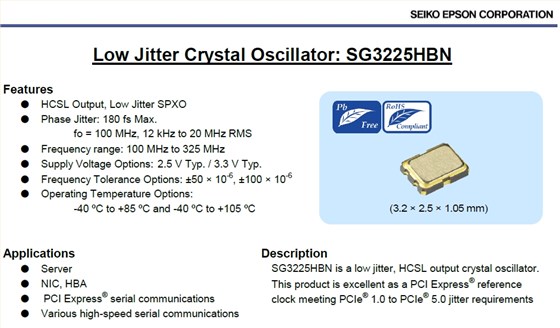

產品特性：

HCSL輸出，低抖動SPXO晶振

相位抖動：最大180 fs。

fo=100 MHz，12kHz至20MHz RMS

頻率范圍：100MHz至325MHz

電源電壓選項：2.5 V典型值/3.3 V類型。

頻率容差選項：±50×10-6，±100×10-6

工作溫度選項：

-40ºC至+85ºC和-40ºC至+105ºC

更多相關日本愛普生晶振型號

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042510001	EPSON振蕩器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510002	EPSON振蕩器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510003	EPSON振蕩器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510004	EPSON振蕩器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510006	EPSON振蕩器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510007	EPSON振蕩器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510008	EPSON振蕩器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510009	EPSON振蕩器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510010	EPSON振蕩器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510011	EPSON振蕩器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510012	EPSON振蕩器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510013	EPSON振蕩器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510014	EPSON振蕩器	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510015	EPSON振蕩器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510016	EPSON振蕩器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510017	EPSON振蕩器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510018	EPSON振蕩器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510021	EPSON振蕩器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510022	EPSON振蕩器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510024	EPSON振蕩器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510025	EPSON振蕩器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510026	EPSON振蕩器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510027	EPSON振蕩器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510028	EPSON振蕩器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510029	EPSON振蕩器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510030	EPSON振蕩器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510031	EPSON振蕩器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510032	EPSON振蕩器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510033	EPSON振蕩器	SG3225EAN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510034	EPSON振蕩器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510035	EPSON振蕩器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510036	EPSON振蕩器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510037	EPSON振蕩器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510039	EPSON振蕩器	SG3225EAN	700.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510040	EPSON振蕩器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510041	EPSON振蕩器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510043	EPSON振蕩器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510044	EPSON振蕩器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510045	EPSON振蕩器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510046	EPSON振蕩器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510047	EPSON振蕩器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510048	EPSON振蕩器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510049	EPSON振蕩器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510050	EPSON振蕩器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510051	EPSON振蕩器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510053	EPSON振蕩器	SG3225EAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510054	EPSON振蕩器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510055	EPSON晶振	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510056	EPSON振蕩器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510059	EPSON振蕩器	SG3225EAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510060	EPSON振蕩器	SG3225EAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510062	EPSON振蕩器	SG3225EAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510063	EPSON振蕩器	SG3225EAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510064	EPSON振蕩器	SG3225EAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510065	EPSON振蕩器	SG3225EAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510066	EPSON振蕩器	SG3225EAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510067	EPSON振蕩器	SG3225EAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510068	EPSON振蕩器	SG3225EAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510069	EPSON振蕩器	SG3225EAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510070	EPSON振蕩器	SG3225EAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510072	EPSON振蕩器	SG3225EAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510073	EPSON振蕩器	SG3225EAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510074	EPSON振蕩器	SG3225EAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042510079	EPSON振蕩器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510080	EPSON振蕩器	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510083	EPSON振蕩器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510084	EPSON振蕩器	SG3225EAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510087	EPSON振蕩器	SG3225EAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
