X1M0003010021,6G模塊差分晶振,XG-2102CA低功耗晶振,EPSON振蕩器，尺寸為7.00x5.00x1.20mm，頻率106.25MHZ，輸出邏輯LV-PECL，LV-PECL差分晶振，LV-PECL差分振蕩器，貼片差分晶振，OSC差分晶振，愛普生差分晶振，六腳貼片差分晶振，低電壓差分振蕩器，低抖動差分晶振，低功耗差分振蕩器，6G藍牙模塊差分晶振，網絡設備差分晶振，儀器儀表差分晶振，測試專用差分晶振，光通信差分晶振，差分晶振輸出信號LV-PECL，比較適合用于網絡設備，無線應用產品等領域。

差分晶體振蕩器是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，HCSL具有低電平,低抖動，低功耗等特性。X1M0003010021,6G模塊差分晶振,XG-2102CA低功耗晶振,EPSON振蕩器.

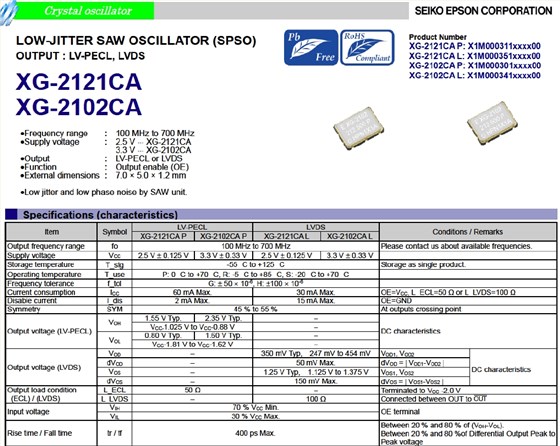

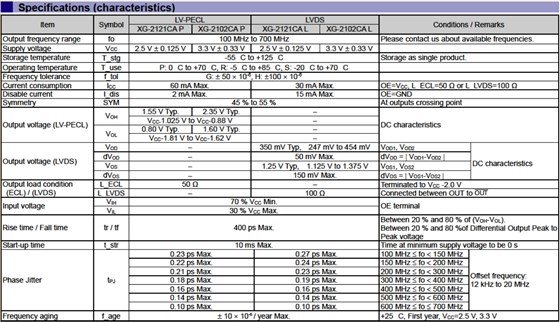

X1M0003010021,6G模塊差分晶振,XG-2102CA低功耗晶振,EPSON振蕩器參數表

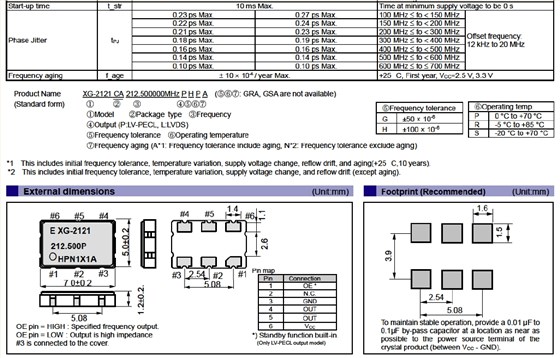

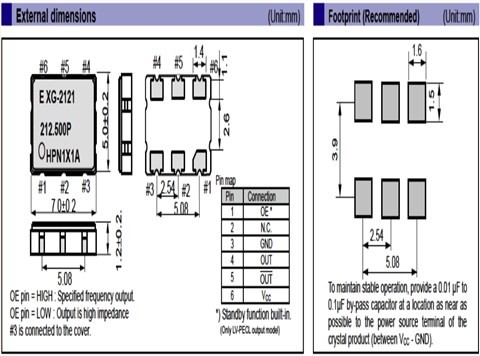

X1M0003010021,6G模塊差分晶振,XG-2102CA低功耗晶振,EPSON振蕩器尺寸圖

SPXO晶振產品特性：

頻率范圍：100-700MHZ

電壓：3.3V

輸出：LV-PECL or LVDS

尺寸7.00x5.00x1.20mm

更多相關日本愛普生晶振型號

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0045110001	愛普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110002	愛普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110003	愛普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110004	愛普生晶振	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110005	愛普生晶振	SG7050EBN	122.880000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110007	愛普生晶振	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110008	愛普生晶振	SG7050EBN	155.520000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110011	愛普生晶振	SG7050EBN	114.285000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110012	愛普生晶振	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110601	愛普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110602	愛普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110603	愛普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0050110000	愛普生晶振	SG-8503CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110003	愛普生晶振	SG-8503CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110004	愛普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110005	愛普生晶振	SG-8503CA	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050111001	愛普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210000	愛普生晶振	SG-8504CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210003	愛普生晶振	SG-8504CA	75.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210004	愛普生晶振	SG-8504CA	62.500000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210005	愛普生晶振	SG-8504CA	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210006	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210007	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050211001	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310000	愛普生晶振	SG-8506CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310003	愛普生晶振	SG-8506CA	622.080000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050311001	愛普生晶振	SG-8506CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1M0001410001	愛普生晶振	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410002	愛普生晶振	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410003	愛普生晶振	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410004	愛普生晶振	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410007	愛普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410008	愛普生晶振	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	愛普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	愛普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	愛普生晶振	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	愛普生晶振	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0002010001	愛普生晶振	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	愛普生晶振	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	愛普生晶振	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	愛普生晶振	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	愛普生晶振	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010008	愛普生晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010009	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010010	愛普生晶振	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002110001	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0002110002	愛普生晶振	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110003	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110004	愛普生晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0003010002	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010003	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010006	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010008	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010009	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010010	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010011	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010012	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010013	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010014	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010015	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010016	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010017	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010019	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010020	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010021	愛普生晶振	XG-2102CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010022	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010023	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010025	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010026	愛普生晶振	XG-2102CA	245.760000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010027	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010029	愛普生晶振	XG-2102CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
