XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器，尺寸3.2x2.5mm，頻率200MHZ，電壓2.5V，輸出邏輯LVDS，LVDS輸出晶振，六腳差分晶振，差分晶體振蕩器，3225mm差分晶振，SMD差分晶振，OSC差分晶振，有源差分晶體振蕩器，低耗能差分晶振，低抖動差分晶振，低相噪差分晶振，低電壓壓控晶振，低相位差分晶振，低功耗差分晶振，低耗能差分晶振，高質量差分壓晶振，具有低相位低相噪的特點。
XP設備是基于超低相位噪聲石英的PLL支持大范圍頻率和輸出的有源晶體振蕩器接口類型。這些設備設計為在三不同的電源，有三種封裝尺寸具有幾種引腳輸出配置，以及三種可操作溫度范圍。XP設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器.
XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器參數表

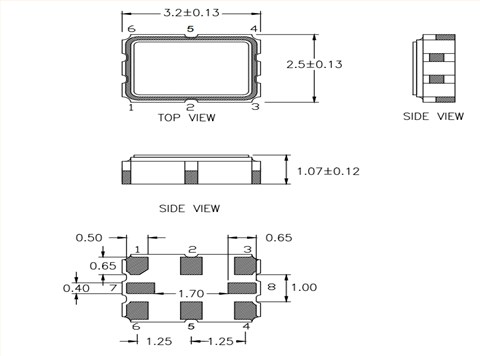

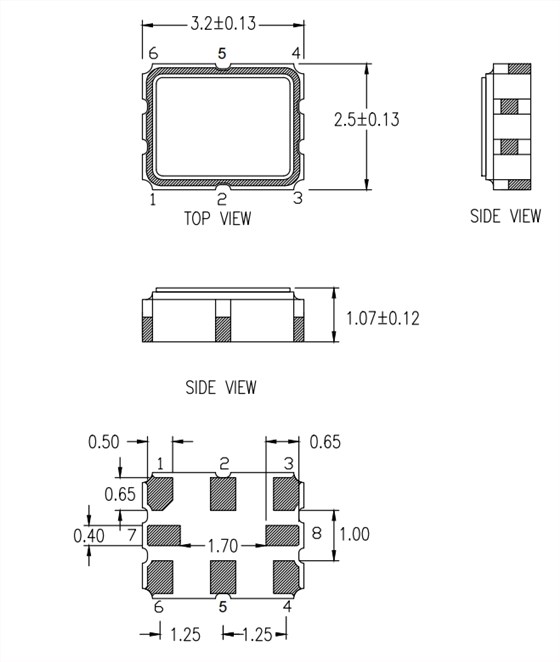

XPL326200.000000I,XP低耗能晶振,6GWIFI晶振,瑞薩LVDS振蕩器 尺寸圖
產品特性：
輸出類型：差分晶振LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：
7.0×5.0×1.7毫米
5.0×3.2×1.17毫米
3.2×2.5×1.07毫米
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm
更多相關Renesas晶振型號
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply | Frequency Stability |
| XPP336100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 100 MHz | LVPECL | 3.3V | ±25ppm |
| XPL536800.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 800 MHz | LVDS | 3.3V | ±25ppm |
| XPP736161.132812I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 161.132812 MHz | LVPECL | 3.3V | ±25ppm |
| XPL526200.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 200 MHz | LVDS貼片差分晶振 | 2.5V | ±25ppm |
| XPP736125.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 125 MHz | LVPECL | 3.3V | ±25ppm |
| XPC736174.703000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 174.703 MHz | CML | 3.3V | ±25ppm |
| XPL316133.333333I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 133.333333 MHz | LVDS | 1.8V | ±25ppm |
| XPC316800.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 800 MHz | CML | 1.8V | ±25ppm |
| XPC336212.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 212.5 MHz | CML | 3.3V | ±25ppm |
| XPL336016.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 16 MHz | LVDS | 3.3V | ±25ppm |
| XPP316156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.25 MHz | LVPECL | 1.8V | ±25ppm |
| XPL536C10.937500I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 1.2109375 GHz | LVDS | 3.3V | ±25ppm |
| XPP736212.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 212.5 MHz | LVPECL | 3.3V | ±25ppm |
| XPL736156.250000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| XPL536148.500000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| XPP736156.253906I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 156.253906 MHz | LVPECL | 3.3V | ±25ppm |
| XPC536020.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 20 MHz | CML | 3.3V | ±25ppm |
| XPC736174.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 174 MHz | CML | 3.3V | ±25ppm |
| XPP736175.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 175 MHz | LVPECL | 3.3V | ±25ppm |
| XPL736148.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| XPL336148.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| XPL336156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| XPL336125.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 125 MHz | LVDS | 3.3V | ±25ppm |
| XPL316050.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 50 MHz | LVDS | 1.8V | ±25ppm |
| XPP736100.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 100 MHz | LVPECL | 3.3V | ±25ppm |
| XPC736625.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 625 MHz | CML | 3.3V | ±25ppm |
| XPP736106.250000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 106.25 MHz | LVPECL | 3.3V | ±25ppm |
| XPL316032.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 32 MHz | LVDS | 1.8V | ±25ppm |
| XPL516156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 156.25 MHz | LVDS | 1.8V | ±25ppm |
| XPP735156.250005I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 156.250005 MHz | LVPECL | 3.3V | ±50ppm |
| XPP736122.880000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 122.88 MHz | LVPECL | 3.3V | ±25ppm |
| XPN336078.125000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 78.125 MHz | HCSL | 3.3V | ±25ppm |
| XPP736124.992000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 124.992 MHz | LVPECL | 3.3V | ±25ppm |
| XPL336100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 100 MHz | LVDS | 3.3V | ±25ppm |
| XPL736125.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 125 MHz | LVDS | 3.3V | ±25ppm |
| XPC316156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.25 MHz | CML | 1.8V | ±25ppm |
| XPL536148.163548I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 148.163548 MHz | LVDS | 3.3V | ±25ppm |
| XPL736300.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 300 MHz | LVDS | 3.3V | ±25ppm |
| XPL316156.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156 MHz | LVDS | 1.8V | ±25ppm |
| XPL326200.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 200 MHz | LVDS | 2.5V | ±25ppm |
| XPP736200.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 200 MHz | LVPECL | 3.3V | ±25ppm |
| XPL526312.500000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 312.5 MHz | LVDS | 2.5V | ±25ppm |
| XPL336040.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 40 MHz | LVDS | 3.3V | ±25ppm |
| XPP526156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 156.25 MHz | LVPECL | 2.5V | ±25ppm |
| XPN326312.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 312.5 MHz | HCSL | 2.5V | ±25ppm |
| XPC736100.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 100 MHz | CML | 3.3V | ±25ppm |
| XPN336025.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 25 MHz | HCSL | 3.3V | ±25ppm |
| XPM736625.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 625 MHz | - | 3.3V | ±25ppm |
| XPN336100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 100 MHz | HCSL | 3.3V | ±25ppm |
| XPL736800.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 800 MHz | LVDS | 3.3V | ±25ppm |
| XPP726212.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 212.5 MHz | LVPECL | 2.5V | ±25ppm |
| XPL536070.656000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| XPP736250.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 250 MHz | LVPECL | 3.3V | ±25ppm |
| XPP726312.510900I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 312.5109 MHz | LVPECL | 2.5V | ±25ppm |
| XPP736915.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 915 MHz | LVPECL | 3.3V | ±25ppm |
| XPP336830.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 830 MHz | LVPECL | 3.3V | ±25ppm |
| XPN336156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.25 MHz | HCSL | 3.3V | ±25ppm |
| XPN316161.132812I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 161.132812 MHz | HCSL | 1.8V | ±25ppm |
| XPP336156.253906I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.253906 MHz | LVPECL | 3.3V | ±25ppm |
| XPL316033.333333I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 33.333333 MHz | LVDS | 1.8V | ±25ppm |
| XPN536156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 156.25 MHz | HCSL | 3.3V | ±25ppm |
| XPP336250.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 250 MHz | LVPECL | 3.3V | ±25ppm |
| XPN316100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 100 MHz | HCSL | 1.8V | ±25ppm |
| XPL316080.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 80 MHz | LVDS | 1.8V | ±25ppm |
| XPL336200.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 200 MHz | LVDS | 3.3V | ±25ppm |
| XPL336644.531250I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 644.53125 MHz | LVDS | 3.3V | ±25ppm |
| XPL326156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| XPP736161.132580I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 161.13258 MHz | LVPECL | 3.3V | ±25ppm |
| XPP726445.500000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 445.5 MHz | LVPECL | 2.5V | ±25ppm |
| XPL326500.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 500 MHz | LVDS | 2.5V | ±25ppm |
| XPL336830.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 830 MHz | LVDS | 3.3V | ±25ppm |
| XPP726160.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 160 MHz | LVPECL | 2.5V | ±25ppm |
| XPL516625.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 625 MHz | LVDS | 1.8V | ±25ppm |
| XPL316322.265625I | renesas瑞薩晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 322.265625 MHz | LVDS | 1.8V | ±25ppm |
| XPP336312.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| XPC336156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 156.25 MHz | CML | 3.3V | ±25ppm |
| XPN716156.253906I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 156.253906 MHz | HCSL | 1.8V | ±25ppm |
| XPL526156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| XPP516625.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XP | 625 MHz | LVPECL | 1.8V | ±25ppm |
| XPL726B00.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XP | 1.1 GHz | LVDS | 2.5V | ±25ppm |
| XPL336049.152000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 49.152 MHz | LVDS | 3.3V | ±25ppm |
| XPP336050.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 50 MHz | LVPECL | 3.3V | ±25ppm |
| XPL316026.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XP | 26 MHz | LVDS | 1.8V | ±25ppm |
