頻率：36MHZ
尺寸：7.0×5.0mm
C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振，尺寸7.0×5.0mm，頻率36MHZ，美國Aker晶振，歐美進口晶振，安基無源晶振，石英振動子，無源貼片晶振，石英晶振，石英貼片晶振，石英晶體諧振器，7050mm石英晶振，無源晶振，SMD晶振，四腳貼片晶振，無鉛環保晶振，輕薄型晶振，低功耗晶振，低耗能晶振，低損耗晶振，低成本晶振，高質量晶振，高性能晶振，高品質晶振，影音系統晶振，娛樂設備晶振，小型設備晶振，便攜式設備晶振，移動通信晶振，安防專用晶振，播放器晶振，可穿戴設備晶振，數字視頻晶振，具有輕薄型高品質的特點，SMD晶振產品適合用于影音系統，娛樂設備，小型設備，便攜式設備，移動通信，安防，播放器，可穿戴設備，數字視頻等領域。C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振.

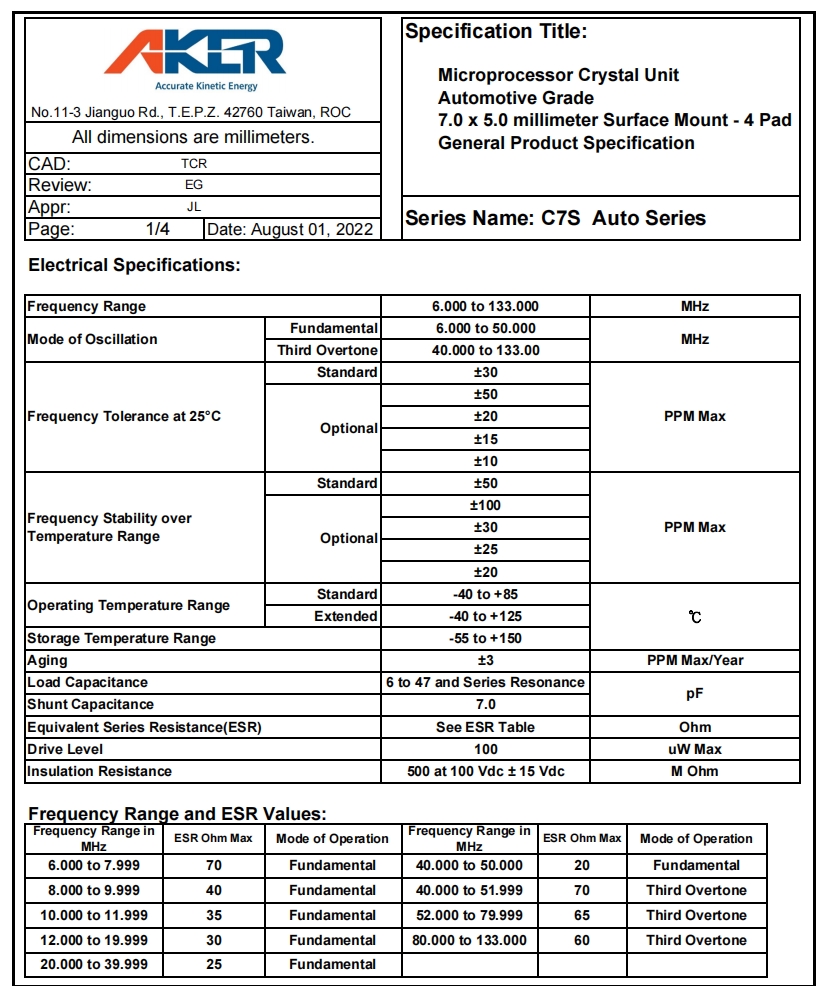

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振 參數表
| Frequency Range | 36.000 | MHz | ||||||||||||||||||||||||
| Mode of Oscillation | Fundamental | 6.000 to 50.000 | MHz | |||||||||||||||||||||||
| Third Overtone | 40.000 to 133.00 | |||||||||||||||||||||||||
| Frequency Tolerance at 25°C | Standard | ±30 | PPM Max | |||||||||||||||||||||||
| Optional | ±50 | |||||||||||||||||||||||||
| ±20 | ||||||||||||||||||||||||||
| ±15 | ||||||||||||||||||||||||||
| ±10 | ||||||||||||||||||||||||||
|
Frequency Stability over Temperature Range |
Standard | ±50 | PPM Max | |||||||||||||||||||||||
| Optional | ±100 | |||||||||||||||||||||||||
| ±30 | ||||||||||||||||||||||||||
| ±25 | ||||||||||||||||||||||||||
| ±20 | ||||||||||||||||||||||||||
| Operating Temperature Range | Standard | -40 to +85 | ℃ | |||||||||||||||||||||||
| Extended | -40 to +125 | |||||||||||||||||||||||||
| Storage Temperature Range | -55 to +150 | |||||||||||||||||||||||||
| Aging | ±3 | PPM Max/Year | ||||||||||||||||||||||||
| Load Capacitance | 6 to 47 and Series Resonance | pF | ||||||||||||||||||||||||
| Shunt Capacitance | 7.0 | |||||||||||||||||||||||||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | ||||||||||||||||||||||||
| Drive Level | 100 | uW Max | ||||||||||||||||||||||||
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | ||||||||||||||||||||||||

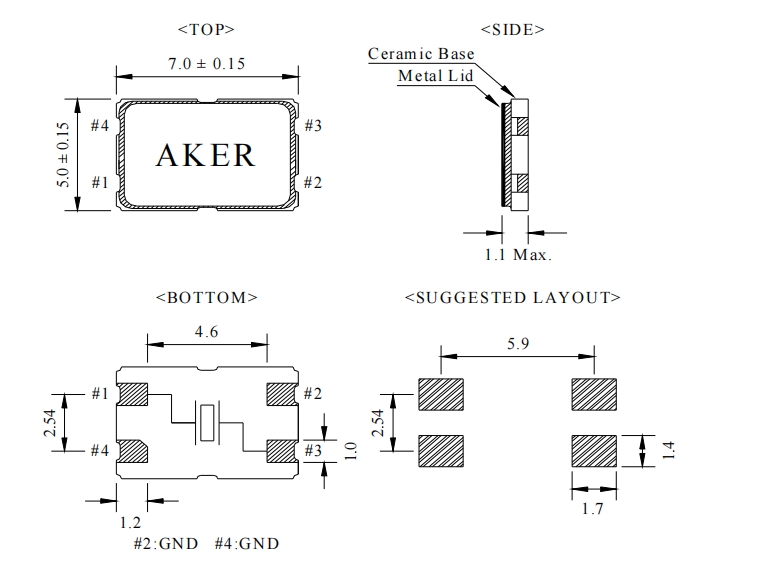

C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振 尺寸圖
C7S石英諧振器,C7S-36.000-12-3030-X-R,安基影音系統晶振
石英晶體產品特點：
尺寸7.0x5.0mm
低老化特性
符合RoHS標準且無鉛
| Mfr Part # | 晶振廠家 | Description | Series | Frequency | Frequency Stability |
| C3E-24.000-12-1530-X-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz | ±30ppm |
| C3E-24.000-12-3030-X-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz | ±30ppm |
| C3E-24.000-18-1010-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 18PF SMD | C3E | 24 MHz | ±10ppm |
| C3E-20.000-10-1530-X-R | Aker Technology Corp | CRYSTAL 20.0000MHZ 10PF SMD | C3E | 20 MHz | ±30ppm |
| C3E-25.000-8-1530-X-R | Aker Technology Corp | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz | ±30ppm |
| C3E-24.000-12-1015-X-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz | ±15ppm |
| C3E-24.000-10-1015-X-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz | ±15ppm |
| C3E-16.000-12-1015-X-R | Aker Technology Corp | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz | ±15ppm |
| C3E-40.000-10-1015-X-R | Aker Technology Corp | CRYSTAL 40.0000MHZ 10PF SMD | C3E | 40 MHz | ±15ppm |
| C3E-32.000-8-1015-X-R | Aker Technology Corp | CRYSTAL 32.0000MHZ 8PF SMD | C3E | 32 MHz | ±15ppm |
| C3E-32.000-10-1015-X-R | Aker Technology Corp | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz | ±15ppm |
| C3E-32.000-12-1015-X-R | Aker Technology Corp | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz | ±15ppm |
| C2E-24.000-10-1010-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 10PF SMD | C2E | 24 MHz | ±10ppm |
| C2E-16.000-12-3030-X-R | Aker Technology Corp | CRYSTAL 16.0000MHZ 12PF SMD | C2E | 16 MHz | ±30ppm |
| C2E-25.000-10-3030-X-R | Aker Technology Corp | CRYSTAL 25.0000MHZ 10PF SMD | C2E | 25 MHz | ±30ppm |
| C2E-16.000-8-1530-X-R | Aker Technology Corp | CRYSTAL 16.0000MHZ 8PF SMD | C2E | 16 MHz | ±30ppm |
| C3E-8.000-10-3030-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 10PF SMD | C3E | 8 MHz | ±30ppm |
| C3E-8.000-10-3030-X-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 10PF SMD | C3E | 8 MHz | ±30ppm |
| C3E-8.000-18-3030-X-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz | ±30ppm |
| C3E-8.000-18-3030-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz | ±30ppm |
| C1E-32.000-10-1015-X-R | Aker Technology Corp | CRYSTAL 32.0000MHZ 10PF SMD | C1E | 32 MHz | ±15ppm |
| C1E-25.000-20-2030-R | Aker Technology Corp | CRYSTAL 25.0000MHZ 20PF SMD | C1E | 25 MHz | ±30ppm |
| C1E-24.000-10-1015-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz | ±15ppm |
| C1E-24.000-10-1010-R | Aker Technology Corp | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz | ±10ppm |
| C1E-32.000-8-1515-R | Aker Technology Corp | CRYSTAL 32.0000MHZ 8PF SMD | C1E | 32 MHz | ±15ppm |
| C3E-16.000-12-1015-X-M | Aker Technology Corp | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz | ±15ppm |
| C16-32.000-8-3030-X-R | Aker Technology Corp | CRYSTAL 32.0000MHZ 8PF SMD | C16 | 32 MHz | ±30ppm |
| C16-26.000-8-1520-R | Aker Technology Corp | CRYSTAL 26.0000MHZ 8PF SMD | C16 | 26 MHz | ±20ppm |
| C5S-26.000-16-1010-R | Aker Technology USA | CRYSTAL 26.0000MHZ 16PF SMD | C5S | 26 MHz | ±10ppm |
| C5S-8.000-18-3030-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 18PF SMD | C5S | 8 MHz | ±30ppm |
| CAA-4.000-18-3050-X-R | Aker Technology Corp | CRYSTAL 4MHZ 18PF SMD | CAA | 4 MHz | ±50ppm |
| CAA-11.0592-18-3050-R | Aker Technology Corp | CRYSTAL 11.0592MHZ 18PF SMD | CAA | 11.0592 MHz | ±50ppm |
| CAA-8.000-18-3050-X-R | Aker Technology Corp | CRYSTAL 8MHZ 18PF SMD | CAA | 8 MHz | ±50ppm |
| CAA-40.000-18-3050-R | Aker Technology Corp | CRYSTAL 40MHZ 18PF SMD | CAA | 40 MHz | ±50ppm |
| C3E-24.000-9-1010-R | Aker Technology Corp | CRYSTAL 24MHZ 9PF SMD | C3E | 24 MHz | ±10ppm |
| C3E-12.000-12-1020-X-R | Aker Technology Corp | CRYSTAL 12MHZ 12PF SMD | C3E | 12 MHz | ±10ppm |
| C3E-12.000-18-1020-X-R | Aker Technology Corp | CRYSTAL 12MHZ 18PF SMD | C3E | 12 MHz | ±10ppm |
| C3E-25.000-20-1015-X-R | Aker Technology Corp | CRYSTAL 25MHZ 20PF SMD | C3E | 25 MHz | ±15ppm |
| C3E-24.000-9-1015-X-R | Aker Technology Corp | CRYSTAL 24MHZ 9PF SMD | C3E | 24 MHz | ±15ppm |
| C3E-16.000-9-1015-X-R | Aker Technology Corp | CRYSTAL 16MHZ 9PF SMD | C3E | 16 MHz | ±15ppm |
| C2E-12.000-18-1020-R | Aker Technology Corp | CRYSTAL12MHZ 18PF SMD | C2E | 12 MHz | ±20ppm |
| C3E-8.000-20-1020-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 12PF SMD | C3E | 8 MHz | ±20ppm |
| C3E-8.000-18-1020-X-R | Aker Technology Corp | CRYSTAL 8MHZ 18PF SMD | C3E | 8 MHz | ±20ppm |
| C3E-8.000-8-1015-R | Aker Technology Corp | CRYSTAL 8MHZ 8PF SMD | C3E | 8 MHz | ±10ppm |
| C3E-12.000-8-2050-X1-R | Aker Technology Corp | CRYSTAL 12MHZ 8PF SMD AEC-Q200 | C3E X1 | 12 MHz | ±50ppm |
| C3E-16.000-10-3050-X1-R | Aker Technology Corp | CRYSTAL 16MHZ 10PF SMD AEC-Q200 | C3E X1 | 16 MHz | ±50ppm |
| C16-32.000-8-1515-X-R | Aker Technology Corp | CRYSTAL 32MHZ 8PF SMD | C16 | 32 MHz | ±15ppm |
| C3E-20.000-8-3050-X1-R | Aker Technology Corp | CRYSTAL 20MHZ 8PF SMD AEC-Q200 | C3E X1 | 20 MHz | ±50ppm |
| C2E-12.000-18-1020-X-R | Aker Technology Corp | CRYSTAL12MHZ 18PF SMD | C2E | 12 MHz | ±20ppm |
| C5S-12.000-18-1020-R | Aker Technology Corp | CRYSTAL 12.0000MHZ 18PF SMD | C5S | 12 MHz | ±20ppm |
| C3E-8.000-18-1020-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz | ±20ppm |
| C3E-8.000-12-1020-M | Aker Technology Corp | CRYSTAL 8MHZ 12PF SMD | C3E | 8 MHz | ±10ppm |
| C2E-12.000-8-2050-X1-R | Aker Technology Corp | CRYSTAL 12MHZ 8PF SMD AEC-Q200 | C2E X1 | 12 MHz | ±50ppm |
| C3E-16.000-10-2050-X1-R | Aker Technology Corp | CRYSTAL 10MHZ 10PF SMD AEC-Q200 | C3E X1 | 10 MHz | ±50ppm |
| C3E-30.000-8-2050-X1-R | Aker Technology Corp | CRYSTAL 30MHZ 8PF SMD AEC-Q200 | C3E X1 | 30 MHz | ±50ppm |
| C7S-12.000-12-3030-X-R | Aker Technology Corp | CRYSTAL 12MHZ 12PF SMD | C7S | 12 MHz | ±30ppm |
| C7S-8.000-18-1020-R | Aker Technology Corp | CRYSTAL 8.0000MHZ 18PF SMD | C7S | 8 MHz | ±20ppm |
| C7S-8.000-18-1030-X-R | Aker Technology Corp | CRYSTAL 8MHZ 18PF SMD | C7S | 8 MHz | ±30ppm |
| CA4-16.000-18-3050-R | Aker Technology Corp | CRYSTAL 16MHZ 18PF SMD | CA4 | 16 MHz | ±50ppm |
| CA4-8.000-16-3050-R | Aker Technology Corp | CRYSTAL 8.000MHZ 16PF SMD | CA4 | 8 MHz | ±50ppm |
| C3E-8.000-10-1020-M | Aker Technology Corp | CRYSTAL 8MHZ 10PF SMD | C3E | 8 MHz | ±20ppm |
| C16-96.000-8-1520-X2-R | Aker Technology Corp | CRYSTAL 96MHZ 8PF SMD | - | 96 MHz | ±15ppm |
| C1E-76.800-10-1012-X-M | Aker Technology Corp | CRYSTAL 76.8MHZ 10PF SMD | C1E | 76.8 MHz | ±10ppm |
