頻率：24.000MHZ
尺寸：11.4x4.7x2.5/2.6mm
ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情，歐美進口晶振，Abracon艾博康晶振，型號為：ABLS3，編碼為：ABLS3-24.000MHZ-D4YF-T，是一款小體積晶振尺寸：11.4 x 4.7 x 2.5/2.6mm封裝，石英晶體諧振器，兩腳貼片晶振，無源晶振，石英晶體，無鉛環保晶振，HC49/US（AT49）低輪廓SMD微處理器晶體，適用于符合RoHS要求的回流低高度降至2.5/2.6mm緊密穩定性和擴展溫度選項，石英晶振應用于：計算機晶振，調制解調器，微處理器晶體，無線網絡晶振，藍牙模塊晶振，車載電子等應用。
ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情，參數表
ABLS3
Minimum
Typical
Maximum
Units
Notes
Frequency Range
3.579545
-----
24
Fundamental AT
(Standard)
24.000001
-----
50
MHz
Fundamental AT or BT
(See options)
24.000001
-----
70
3rd Overtone
(Standard)
Operation Mode
Fundamental or 3rd Overtone
Operating Temperature
0
-----
70
ºC
See options
Storage Temperature
-55
-----
125
ºC
Frequency Tolerance @+25°C
-50
-----
50
ppm
See options
Frequency Stability over the Operating Temperature ( ref. to +25°C)
-50
50
ppm
See options
-----
(For BT cut, ±100ppm max.at
- 10° C to +60° C only)
Equivalent series resistance (R1)
See table 1 below
?
Shunt capacitance (C0)
-----
-----
7
pF
Load capacitance (CL)
-----
18
-----
pF
Standard (See options if
other than STD)
Drive Level
-----
100
1000
µW
Aging
-5
-----
5
ppm
@25°C±3°C
First year
Insulation Resistance
500
-----
-----
M?
@ 100Vdc ± 15V
Drive level dependency (DLD)
Minimum 7 points tested: from 1µW to 500µW.
Change in frequency (Maximum - Minimum) over DLD range < ±10ppm
Change in ESR (Maximum - Minimum) over DLD range < 25% of Max ESR value.
Maximum ESR over DLD range < Max ESR value.

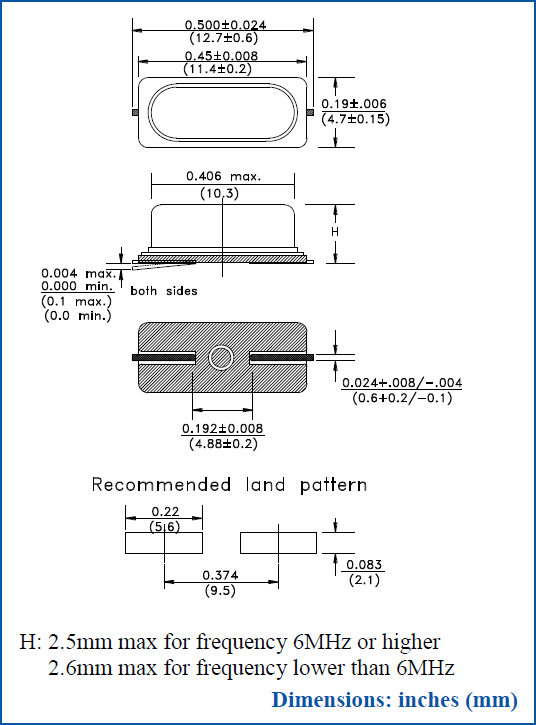

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情，尺寸圖

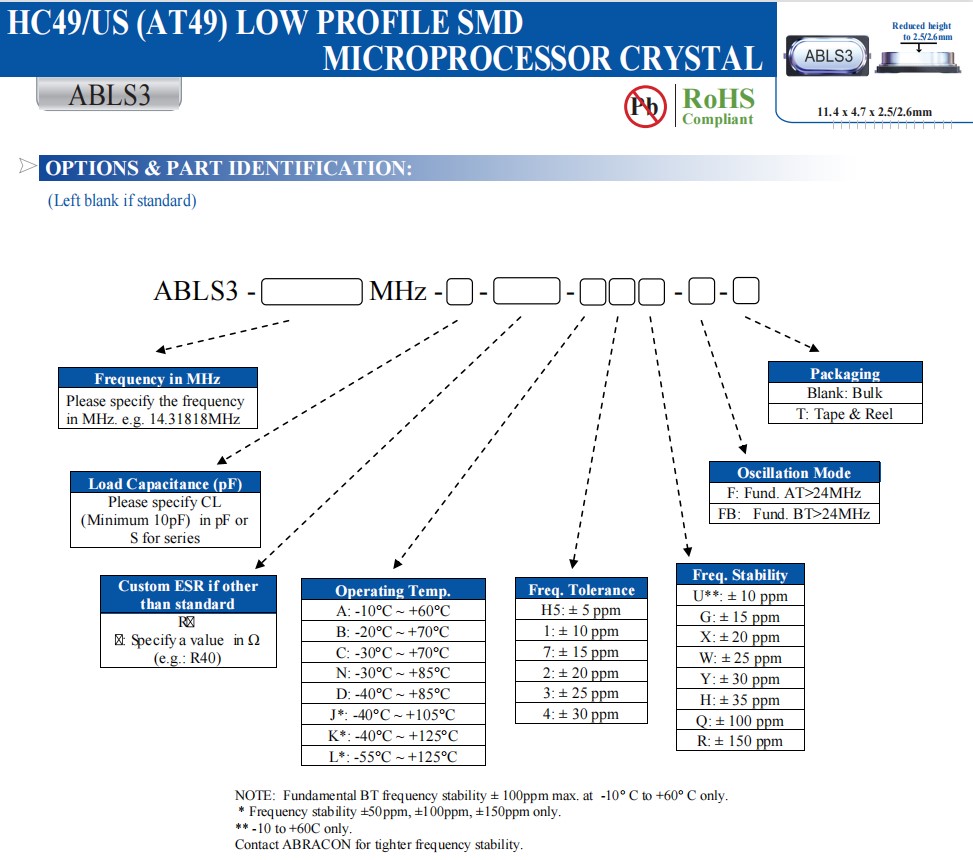

ABLS3-24.000MHZ-D4YF-T/HC49/US/±30ppm/18pF/24MHz晶振詳情
FEATURES:
Suitable for RoHS compliant reflow
Low height reduced to 2.5/2.6mm
Tight stability & extended temperature options
APPLICATIONS:
Computers, Modems, Microprocessors
Wireless Applications
HC49/US (AT49) LOW PROFILE SMD MICROPROCESSOR CRYSTAL
| 石英貼片晶振 | 品牌 | 型號 | 頻率 | 包裝/封裝 |
| ABLS3-8.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 8MHz | HC49/US |
| ABLS3-16.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 16MHz | HC49/US |
| ABLS3-3.6864MHZ-D4Y-T | Abracon晶振 | ABLS3 | 3.6864MHz | HC49/US |
| ABLS3-15.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 15MHz | HC49/US |
| ABLS3-4.9152MHZ-D4Y-T | Abracon晶振 | ABLS3 | 4.9152MHz | HC49/US |
| ABLS3-9.8304MHZ-D4Y-T | Abracon晶振 | ABLS3 | 9.8304MHz | HC49/US |
| ABLS3-4.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 4MHz | HC49/US |
| ABLS3-4.096MHZ-D4Y-T | Abracon晶振 | ABLS3 | 4.096MHz | HC49/US |
| ABLS3-6.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 6MHz | HC49/US |
| ABLS3-24.000MHZ-D4YF-T | Abracon晶振 | ABLS3 | 24MHz | HC49/US |
| ABLS3-19.6608MHZ-D4Y-T | Abracon晶振 | ABLS3 | 19.6608MHz | HC49/US |
| ABLS3-7.3728MHZ-D4Y-T | Abracon晶振 | ABLS3 | 7.3728MHz | HC49/US |
| ABLS3-22.1184MHZ-D4Y-T | Abracon晶振 | ABLS3 | 22.1184MHz | HC49/US |
| ABLS3-13.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 13MHz | HC49/US |
| ABLS3-8.192MHZ-D4Y-T | Abracon晶振 | ABLS3 | 8.192MHz | HC49/US |
| ABLS3-29.4912MHZ-D4YF-T | Abracon晶振 | ABLS3 | 29.4912MHz | HC49/US |
| ABLS3-27.000MHZ-D4YF-T | Abracon晶振 | ABLS3 | 27MHz | HC49/US |
| ABLS3-10.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 10MHz | HC49/US |
| ABLS3-14.7456MHZ-D4Y-T晶振編碼 | Abracon晶振 | ABLS3 | 14.7456MHz | HC49/US |
| ABLS3-14.31818MHZ-D4Y-T | Abracon晶振 | ABLS3 | 14.31818MHz | HC49/US |
| ABLS3-24.576MHZ-D4YF-T | Abracon晶振 | ABLS3 | 24.576MHz | HC49/US |
| ABLS3-20.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 20MHz | HC49/US |
| ABLS3-18.432MHZ-D4Y-T | Abracon晶振 | ABLS3 | 18.432MHz | HC49/US |
| ABLS3-5.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 5MHz | HC49/US |
| ABLS3-3.579545MHZ-D4Y-T | Abracon晶振 | ABLS3 | 3.579545MHz | HC49/US |
| ABLS3-16.384MHZ-D4Y-T | Abracon晶振 | ABLS3 | 16.384MHz | HC49/US |
| ABLS3-12.288MHZ-D4Y-T | Abracon晶振 | ABLS3 | 12.288MHz | HC49/US |
| ABLS3-11.0592MHZ-D4Y-T | Abracon晶振 | ABLS3 | 11.0592MHz | HC49/US |
| ABLS3-26.000MHZ-D4YF-T | Abracon晶振 | ABLS3 | 26MHz | HC49/US |
| ABLS3-25.000MHZ-D4YF-T | Abracon晶振 | ABLS3 | 25MHz | HC49/US |
| ABLS3-12.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | 12MHz | HC49/US |
| ABLS3-6.144MHZ-D4Y-T | Abracon晶振 | ABLS3 | 6.144MHz | HC49/US |
| ABLS3-30.000MHZ-D4YF-T | Abracon晶振 | ABLS3 | 30MHz | HC49/US |
