EC2600TS-75.000M,EC26,7050mm,Ecliptek石英晶體振蕩器

頻率：75MHz

尺寸：7.0x5.0mm

EC2600TS-75.000M,EC26,7050mm,Ecliptek石英晶體振蕩器，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EC26系列晶振，編碼為：EC2600TS-75.000M，頻率：75MHz，電壓：3.3V，頻率穩定性：±100ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：7.0x5.0mm，四腳貼片晶振，CMOS輸出晶振，石英晶體振蕩器，SMD晶振，石英晶振，有源晶振。具有超小型，輕薄型，耐熱及耐環境等特點。應用于：電信晶振，車載控制器晶振，無線網絡晶振，醫療設備晶振，物聯網等應用。

訂購熱線：86-0755-27838351

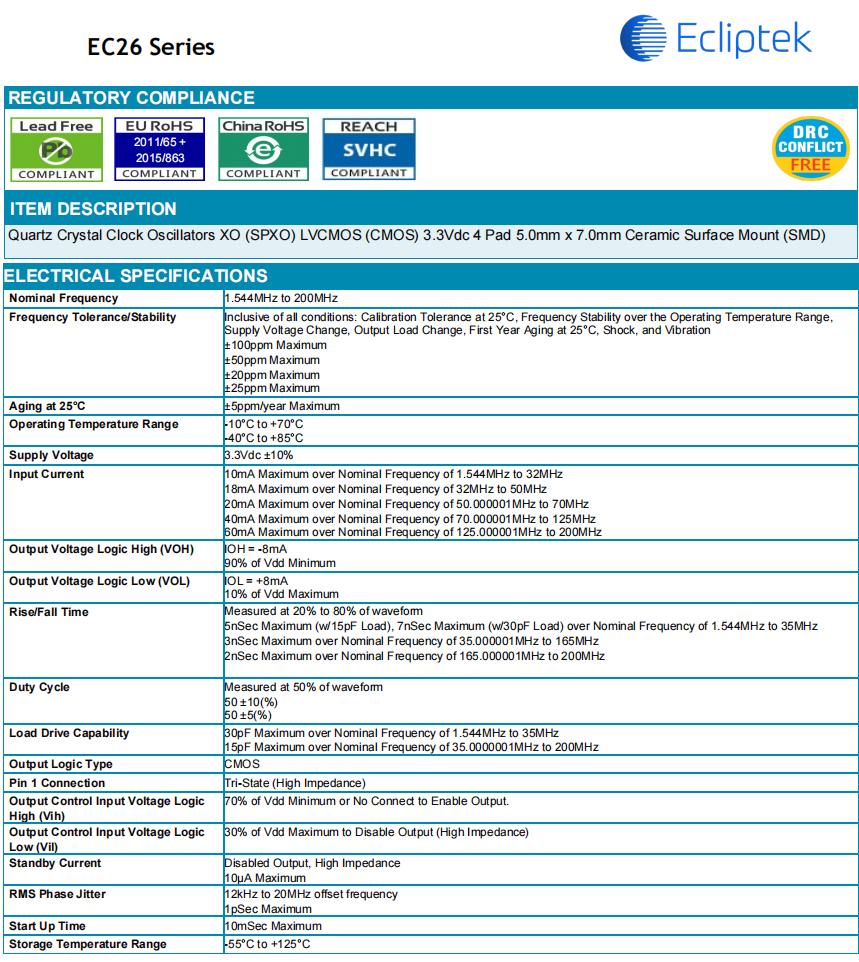

EC2600TS-75.000M,EC26,7050mm,Ecliptek石英晶體振蕩器,參數表

Nominal Frequency			75.000 MHz
Frequency Tolerance/Stability			Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±50ppm Maximum ±20ppm Maximum ±25ppm Maximum
Aging at 25°C			±5ppm/year Maximum
Operating Temperature Range			- 10°C to +70°C -40°C to +85°C
Supply Voltage			3.3Vdc ±10%
Input Current			10mA Maximum over Nominal Frequency of 1.544MHz to 32MHz 18mA Maximum over Nominal Frequency of 32MHz to 50MHz 20mA Maximum over Nominal Frequency of 50.000001MHz to 70MHz 40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz 60mA Maximum over Nominal Frequency of 125.000001MHz to 200MHz
Output Voltage Logic High (VOH)			IOH = -8mA 90% of Vdd Minimum
Output Voltage Logic Low (VOL)			IOL = +8mA 10% of Vdd Maximum
Rise/Fall Time			Measured at 20% to 80% of waveform 5nSec Maximum (w/15pF Load), 7nSec Maximum (w/30pF Load) over Nominal Frequency of 1.544MHz to 35MHz 3nSec Maximum over Nominal Frequency of 35.000001MHz to 165MHz 2nSec Maximum over Nominal Frequency of 165.000001MHz to 200MHz
Duty Cycle			Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability			30pF Maximum over Nominal Frequency of 1.544MHz to 35MHz 15pF Maximum over Nominal Frequency of 35.0000001MHz to 200MHz
Output Logic Type			CMOS
Pin 1 Connection			Tri-State (High Impedance)
Output Control Input Voltage Logic High (Vih)			70% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic Low (Vil)			30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current			Disabled Output, High Impedance 10µA Maximum
RMS Phase Jitter			12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time			10mSec Maximum
Storage Temperature Range			-55°C to +125°C

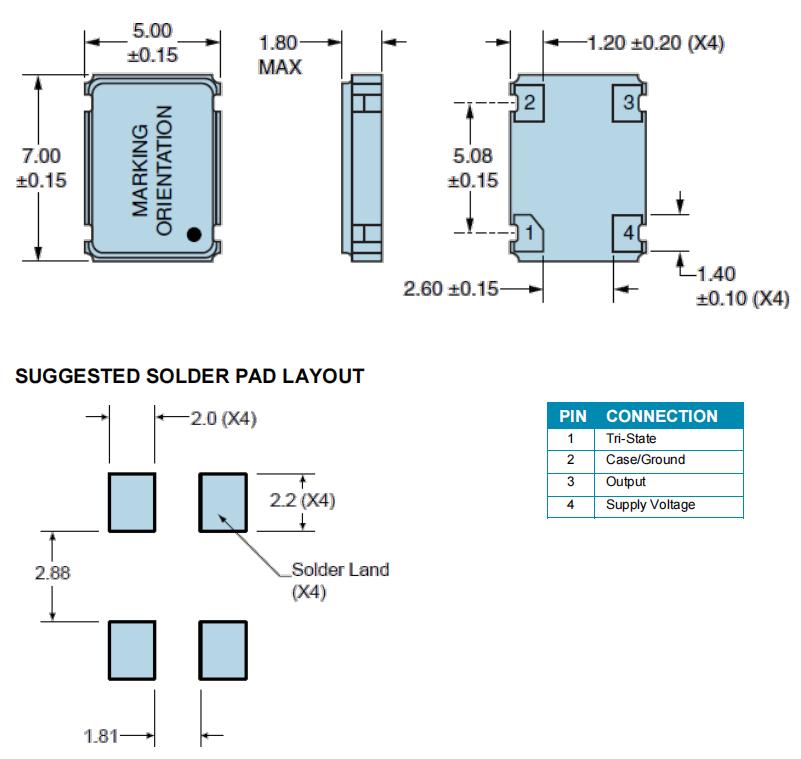

EC2600TS-75.000M,EC26,7050mm,Ecliptek石英晶體振蕩器,尺寸圖

石英晶體振蕩器	品牌	型號	頻率	長	寬	高
EC2600ETTS-14.318M	Ecliptek晶振	EC26	14.318 MHz	7mm	5mm	1.6mm
EC2600ETTS-14.7456M	Ecliptek晶振	EC26	14.7456 MHz	7mm	5mm	1.6mm
EC2600TS-50.000M	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2600TS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2600TS-66.000M TR	Ecliptek晶振	EC26	66 MHz	7mm	5mm	1.6mm
EC2600TS-75.000M	Ecliptek晶振	EC26	75 MHz	7mm	5mm	1.6mm
EC2600TS-75.000M TR	Ecliptek晶振	EC26	75 MHz	7mm	5mm	1.6mm
EC2620ETTS-33.000M TR	Ecliptek晶振	EC26	33 MHz	7mm	5mm	1.6mm
EC2620ETTS-40.000M	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
EC2620TS-16.000M TR	Ecliptek晶振	EC26	16 MHz	7mm	5mm	1.6mm
EC2620TS-25.000M	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2620TTS-100.000M TR	Ecliptek晶振	EC26	100 MHz	7mm	5mm	1.6mm
EC2620TTS-27.000M TR	Ecliptek晶振	EC26	27 MHz	7mm	5mm	1.6mm
EC2625ETTS-1.544M TR	Ecliptek晶振	EC26	1.544 MHz	7mm	5mm	1.6mm
EC2625ETTS-100.000M TR	Ecliptek晶振	EC26	100 MHz	7mm	5mm	1.6mm
EC2625ETTS-133.333M	Ecliptek晶振	EC26	133.333 MHz	7mm	5mm	1.6mm
EC2625ETTS-16.000M TR	Ecliptek晶振	EC26	16 MHz	7mm	5mm	1.6mm
EC2625ETTS-2.048M TR	Ecliptek晶振	EC26	2.048 MHz	7mm	5mm	1.6mm
EC2625ETTS-32.000M	Ecliptek晶振	EC26	32 MHz	7mm	5mm	1.6mm
EC2625ETTS-32.000M TR	Ecliptek晶振	EC26	32 MHz	7mm	5mm	1.6mm
EC2625ETTS-36.000M	石英晶振	EC26	36 MHz	7mm	5mm	1.6mm
EC2625ETTS-36.000M TR	Ecliptek晶振	EC26	36 MHz	7mm	5mm	1.6mm
EC2625ETTS-50.000M	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2625ETTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2625ETTS-54.000M	Ecliptek晶振	EC26	54 MHz	7mm	5mm	1.6mm
EC2625ETTS-66.666M	Ecliptek晶振	EC26	66.666 MHz	7mm	5mm	1.6mm
EC2625ETTS-66.666M TR	Ecliptek晶振	EC26	66.666 MHz	7mm	5mm	1.6mm
EC2625ETTTS-10.000M	Ecliptek晶振	EC26	10 MHz	7mm	5mm	1.6mm
EC2625ETTTS-10.240M	Ecliptek晶振	EC26	10.24 MHz	7mm	5mm	1.6mm
EC2625ETTTS-14.7456M	Ecliptek晶振	EC26	14.7456 MHz	7mm	5mm	1.6mm
EC2625ETTTS-148.500M	Ecliptek晶振	EC26	148.5 MHz	7mm	5mm	1.6mm
EC2625ETTTS-22.1184M	Ecliptek晶振	EC26	22.1184 MHz	7mm	5mm	1.6mm
EC2625ETTTS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2625ETTTS-30.000M	Ecliptek晶振	EC26	30 MHz	7mm	5mm	1.6mm
EC2625ETTTS-50.000M TR	Ecliptek晶振	EC26	50 MHz	7mm	5mm	1.6mm
EC2625ETTTS-54.000M	Ecliptek晶振	EC26	54 MHz	7mm	5mm	1.6mm
EC2625TS-10.000M TR	Ecliptek晶振	EC26	10 MHz	7mm	5mm	1.6mm
EC2625TS-125.000M TR	Ecliptek晶振	EC26	125 MHz	7mm	5mm	1.6mm
EC2625TS-24.000M TR	Ecliptek晶振	EC26	24 MHz	7mm	5mm	1.6mm
EC2625TS-25.000M TR	Ecliptek晶振	EC26	25 MHz	7mm	5mm	1.6mm
EC2625TS-40.000M	Ecliptek晶振	EC26	40 MHz	7mm	5mm	1.6mm
