CX3225CA26000D0HSSZ1,京瓷陶瓷晶振,CX3225CA車載網絡晶振

頻率：26MHZ

尺寸：3.2x2.5mm

CX3225CA26000D0HSSZ1,京瓷陶瓷晶振,CX3225CA車載網絡晶振，尺寸3.2x2.5mm，頻率26MHZ，日本進口晶振，進口無源晶體，KYOCERA Crystal，無源貼片晶振，陶瓷諧振器，3225mm貼片晶振，無源晶振，SMD晶振，陶瓷晶振，26MHZ陶瓷晶體，SMD晶體諧振器，四腳貼片晶振，水晶振動子，輕薄型晶體，綠色環保晶振，低功耗晶振，低損耗晶振，低耗能晶振，高性能晶振，高品質晶振，發動機控制晶振，車載晶振，網絡設備晶振，無線設備晶振，智能音響晶振，藍牙耳機晶振，數字音頻晶振，便攜式設備晶振，具有輕薄小高品質的特點，陶瓷晶振產品比較適合用于發動機控制，高速車載網絡，無線設備，智能音響，藍牙耳機，數字音頻，便攜式設備等應用場景.CX3225CA26000D0HSSZ1,京瓷陶瓷晶振,CX3225CA車載網絡晶振.

訂購熱線：86-0755-27838351

CX3225CA26000D0HSSZ1,京瓷陶瓷晶振,CX3225CA車載網絡晶振 參數表

項 目

記號

標準規格

単位

備注

頻率

f_nom

26.000

MHz

過音階

Fundamental

―

負載容量

關于其他的負荷容量請咨詢。

頻率容許偏差

f_tol

± 10

×10−6

25°C±3°C

串聯電阻

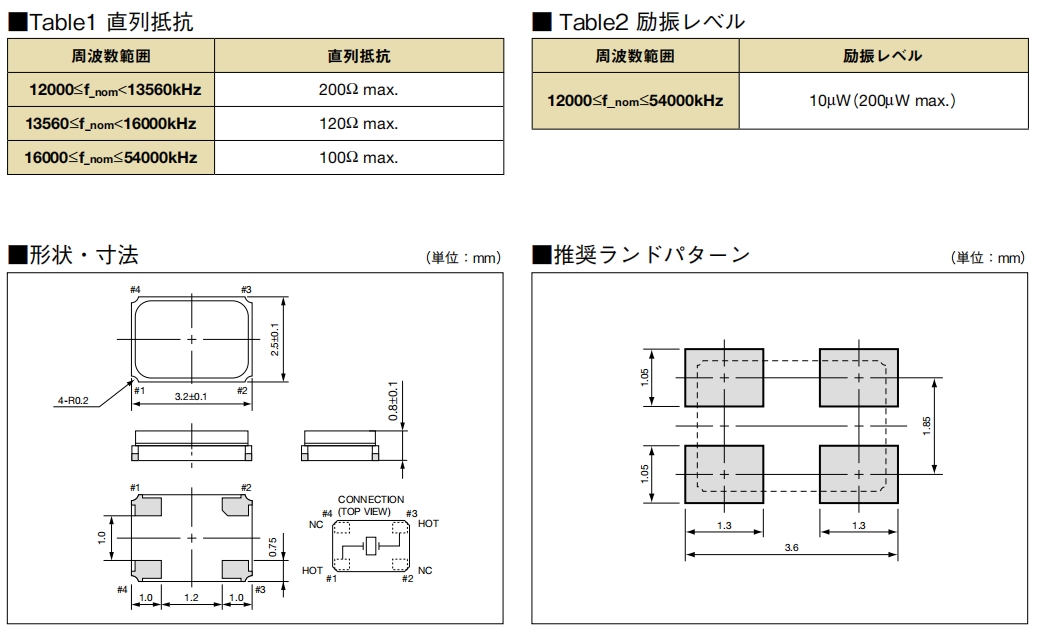

Table 1

ohm

激勵水平

Table 2

工作溫度范圍

T_use

−40 ~ +125

°C

保存溫度范圍

T_stg

−40 ~ +125

°C

頻率溫度特性

f_tem

± 150

× 10−6

相對于25°C頻率的偏差

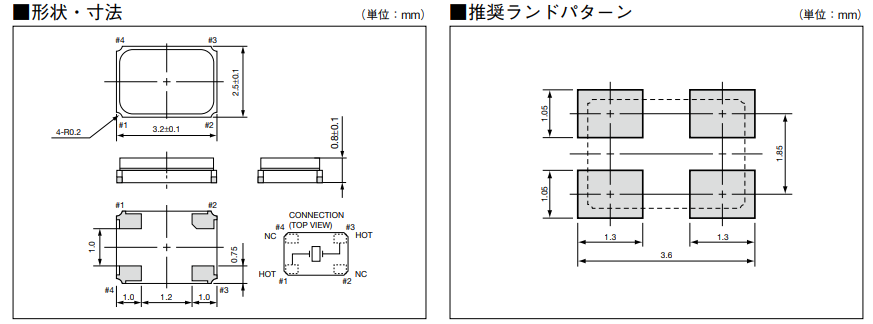

CX3225CA26000D0HSSZ1,京瓷陶瓷晶振,CX3225CA車載網絡晶振 尺寸圖

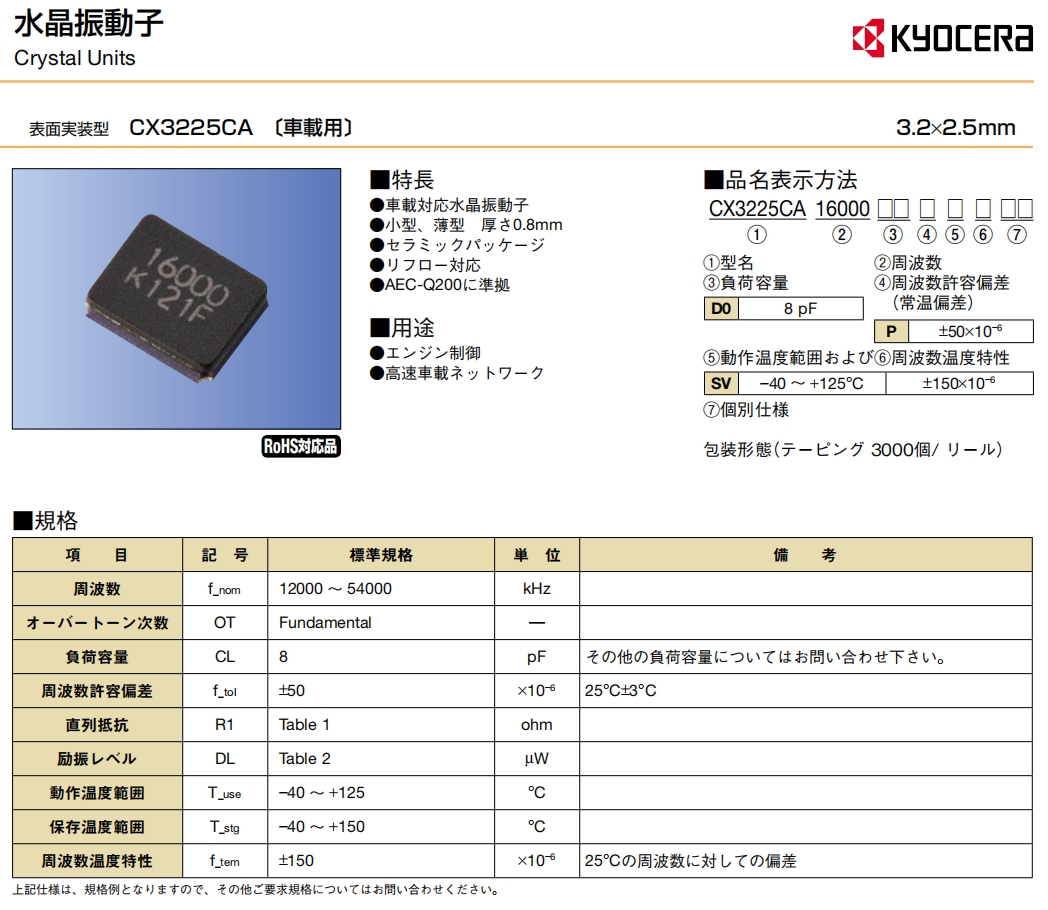

CX3225CA26000D0HSSZ1,京瓷陶瓷晶振,CX3225CA車載網絡晶振

SMD晶振產品特點：

車載對應水晶振子

小型、薄型厚度0.8mm

陶瓷包裝

支持回流

符合AEC-Q200

Manufacturer Part Number原廠編碼	Manufacturer廠家	進口晶振型號	Type 系列	Frequency	Operating Temperature 工作溫度
CX3225CA32000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	32MHz	-40°C ~ 125°C
CX3225CA25000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	25MHz	-40°C ~ 125°C
CT2520DB19200C0FLHAF	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX3225CA12000P0HSTC1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225CA12000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225CA16000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225GA24000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	24MHz	-40°C ~ 150°C
CX3225GA25000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	25MHz	-40°C ~ 150°C
CX2520SB24000D0PESZZ	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX3225CA09843D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	9.843MHz	-40°C ~ 125°C
CX3225CA28636D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 125°C
CX3225CA27000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	27MHz	-40°C ~ 125°C
CX3225CA30000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	30MHz	-40°C ~ 125°C
CX3225GA20000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	20MHz	-40°C ~ 150°C
CX3225GA26000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	26MHz	-40°C ~ 150°C
CX3225GA30000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	30MHz	-40°C ~ 150°C
CX3225GA27000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	27MHz	-40°C ~ 150°C
CX3225GA13560D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 150°C
CX3225GA32000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	32MHz	-40°C ~ 150°C
CX3225GA09843D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	9.843MHz	-40°C ~ 150°C
CX3225CA24000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	24MHz	-40°C ~ 125°C
CX2520SB13560D0GEJCC	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	-10°C ~ 85°C
CX3225CA13560D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 125°C
CX3225CA16000H0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225GA12000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	12MHz	-40°C ~ 150°C
CT2520DB26000C0FZZA1	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	26MHz	-25°C ~ 85°C
CX1612DB48000D0FPJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX3225CA10000D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	10MHz	-40°C ~ 125°C
CX3225CA20000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	20MHz	-40°C ~ 125°C
CX3225CA26000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	26MHz	-40°C ~ 125°C
CX3225CA40000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	40MHz	-40°C ~ 125°C
CX3225GA10000D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	10MHz	-40°C ~ 150°C
CX3225GA16000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	16MHz	-40°C ~ 150°C
CX3225GA28636D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 150°C
CX3225GA40000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	40MHz	-40°C ~ 150°C
CX1612DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX1612DB52000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	52MHz	-30°C ~ 85°C
CX2520SB13560D0GEJZ1	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX3225CA09843D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	9.84375MHz	-40°C ~ 125°C
CX3225CA10000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	10MHz	-40°C ~ 125°C
CX3225CA28636D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 125°C
CX3225CA12000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225GA25000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	25MHz	-40°C ~ 150°C
CX3225CA32000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	32MHz	-40°C ~ 125°C
CX3225GA26000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	26MHz	-40°C ~ 150°C
CX3225GA27000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	27MHz	-40°C ~ 150°C
CX3225GA09843D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	9.84375MHz	-40°C ~ 150°C
CX3225CA20000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	20MHz	-40°C ~ 125°C
CX3225GA28636D0PTVZ1	KYOCERA晶振	CX3225GA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 150°C
CX3225CA24000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	24MHz	-40°C ~ 125°C
CX3225GA30000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	30MHz	-40°C ~ 150°C
CX3225GA10000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	10MHz	-40°C ~ 150°C
CX3225CA25000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	25MHz	-40°C ~ 125°C
CX3225GA32000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	32MHz	-40°C ~ 150°C
CX3225GA12000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	12MHz	-40°C ~ 150°C
CX3225CA26000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	26MHz	-40°C ~ 125°C
CX3225GA40000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	40MHz	-40°C ~ 150°C
CX3225GA13560D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 150°C
CX3225GA16000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	16MHz	-40°C ~ 150°C
CX3225CA27000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	27MHz	-40°C ~ 125°C
CX3225GA20000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	20MHz	-40°C ~ 150°C
CX3225GA24000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	24MHz	-40°C ~ 150°C
CX3225CA30000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	30MHz	-40°C ~ 125°C
CX3225CA13560D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 125°C
CX3225CA16000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225CA40000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	40MHz	-40°C ~ 125°C
CX3225CA16000H0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
