當前位置：首頁 » 日產晶振 » 愛普生晶振 » 愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振

prevnext

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振

頻率：156.25MHZ

尺寸：2.0*1.6mm

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振，尺寸為2.0*1.6mm，頻率為156.25MHZ，輸出邏輯LVDS，差分晶振LVDS，LVDS差分晶體振蕩器，OSC差分晶振，有源差分晶振，石英差分振蕩器，低電壓差分晶振，低耗能差分晶振，6G應用差分晶振，6G網絡設備差分晶振，6G將使網絡通信流量呈指數級增長。6G通信網絡要求高速寬頻帶，同時最大限度地減少噪音。這將實現與高頻率，低抖動用于通信設備的參考時鐘，其中將使用小尺寸光模塊。
SG2016VGN/SG2520VGN貼片差分晶振是非常受歡迎的SG3225VEN系列的下一代產品具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于在更小的封裝中使用了帶有溫度補償?shù)膬?nèi)部設計IC，因此性能更好。產品非常適合用于網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC等應用程序.愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振.

訂購熱線：86-0755-27838351

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振 參數表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC + 0.5

一一
OE/ST terminal

Storage temperature range

T_stg

-55

+125

°C

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

1.71

1.8

1.89

Suffix: E, Output option: A or C

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

LVDS load condition

L_LVDS

100

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-25

+25

×10-6

Suffix: D

-50

+50

×10-6

Suffix: J

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	25	mA	Output option: A, fo < 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: A, fo ≥ 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: B, fo < 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	35	mA	Output option: B, fo ≥ 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: C, fo < 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: C, 212 MHz ≤ fo < 392 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: C, fo ≥ 392 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: A or C VCC = 1.8 V Typ.
Disable current	I_dis	-	-	20	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of VSW
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOD	250	-	450	mV	Output option: A
		400	-	800	mV	Output option: B Not available for VCC = 1.8 V Typ.
		300	-	600	mV	Output option: C
	dVOD	-	-	50	mV	\|VOD1 - VOD2 \|
	VOS	1.15	-	1.35	V	VCC = 2.5 V, 3.3 V Typ.
		0.65	-	0.85	V	VCC = 1.8 V Typ.
	dVOS	-	-	50	mV	\|VOS1 - VOS2 \|
Differential swing	VSW	500	-	900	mV	Output option: A
		800	-	1 600	mV	Output option: B Not available for VCC = 1.8 V Typ.
		600	-	1 200	mV	Output option: C
Input voltage	VIH	70 % VCC	-	-	V	OE/ terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	OE terminal HIGH → LOW
Output disable time (ST)	tstp_st	-	-	100	ns	terminal HIGH → LOW
Output enable time (OE)	tsta_oe	-	-	500	ns	OE terminal LOW → HIGH
Output enable time (ST)	tsta_st	-	-	10	ms	terminal LOW → HIGH
Phase jitter VCC = 2.5 V, 3.3 V Typ. Offset frequency fo < 50 MHz; 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	100	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	60	fs	156 MHz < fo ≤ 212 MHz
		-	-	50	fs	fo > 212 MHz
Phase jitter VCC = 1.8 V Typ. Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz		-	-	400	fs	fo < 100 MHz
		-	-	130	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	70	fs	156 MHz < fo ≤ 212 MHz
		-	-	60	fs	fo > 212 MHz

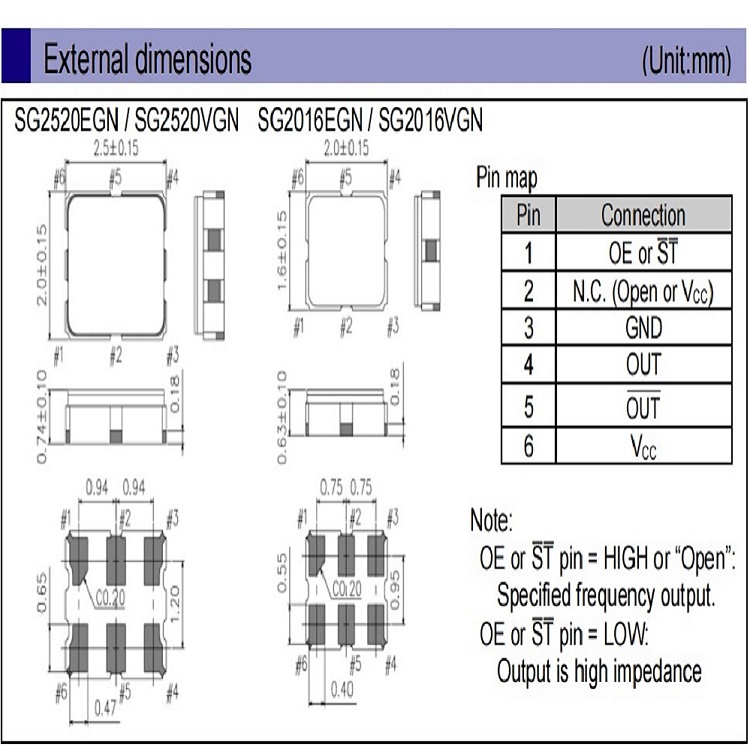

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振 尺寸圖

SG2016EGN，SG2016VGN,SG2520EGN,SG2520VGN,2016,2520

產品特性：

有源晶體振蕩器(SPXO)

頻率范圍: 25MHz至500MHz

輸出:LVDS

電源電壓:1.8 V型。/ 2.5 V/ 3.3V類型

工作溫度:-40℃~ +105℃

低相位抖動:38fs(fo = 156.25MHz)

更多相關日本愛普生晶振型號

編碼	晶振廠家	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042410001	愛普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410002	愛普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410004	愛普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410005	愛普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410006	愛普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410007	愛普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410008	愛普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410009	愛普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410010	愛普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410011	愛普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410012	愛普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410014	愛普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410015	愛普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410016	愛普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410017	愛普生晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410020	愛普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410021	愛普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410023	愛普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410024	愛普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410025	愛普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410026	愛普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410027	愛普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410028	愛普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410029	愛普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410030	愛普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410031	愛普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410033	愛普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410034	愛普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410035	愛普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410036	愛普生晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042410039	愛普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410040	愛普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410042	愛普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410043	愛普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410044	愛普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410045	愛普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410046	愛普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410047	愛普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410048	愛普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410049	愛普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410050	愛普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410052	愛普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410053	愛普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410054	愛普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410055	愛普生晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410058	愛普生晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410059	愛普生晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410061	愛普生晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410062	愛普生晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410063	愛普生晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410064	愛普生晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410065	愛普生晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410066	愛普生晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410067	愛普生晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410068	愛普生晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410069	愛普生晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410071	愛普生晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410072	愛普生晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042410073	愛普生晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
