EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器

頻率：212.5MHZ

尺寸：7.0*5.0mm

EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器，尺寸為7.0*5.0mm,頻率為212.5MHZ,輸出邏輯LVDS，OSC差分晶振，差分晶體振蕩器，EPSON差分晶振，差分晶振LVDS，低電壓差分振蕩器，低相位差分晶振，高頻差分晶振，低損耗差分振蕩器，6G光模塊差分晶振，差分貼片晶振，6G路由器差分晶振，無線設備差分晶振，產品具備低電壓電相位的特點。

差分晶振優點是抗干擾能力強，缺點是布線需注意。
1）電平幅度大，信號高低電平之間的轉換時間長，不適用于傳輸頻率達到100MHZ以上的信號
2）輸出信號為單端信號（一條線），傳輸路徑受到干擾，不利于長線傳輸
3）功耗大，大家都知道TTL器件的靜態功耗較大，即使靜態功耗小的CMOS器件，由于電平擺幅寬，其動態功耗也偏大。EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器.

訂購熱線：86-0755-27838351

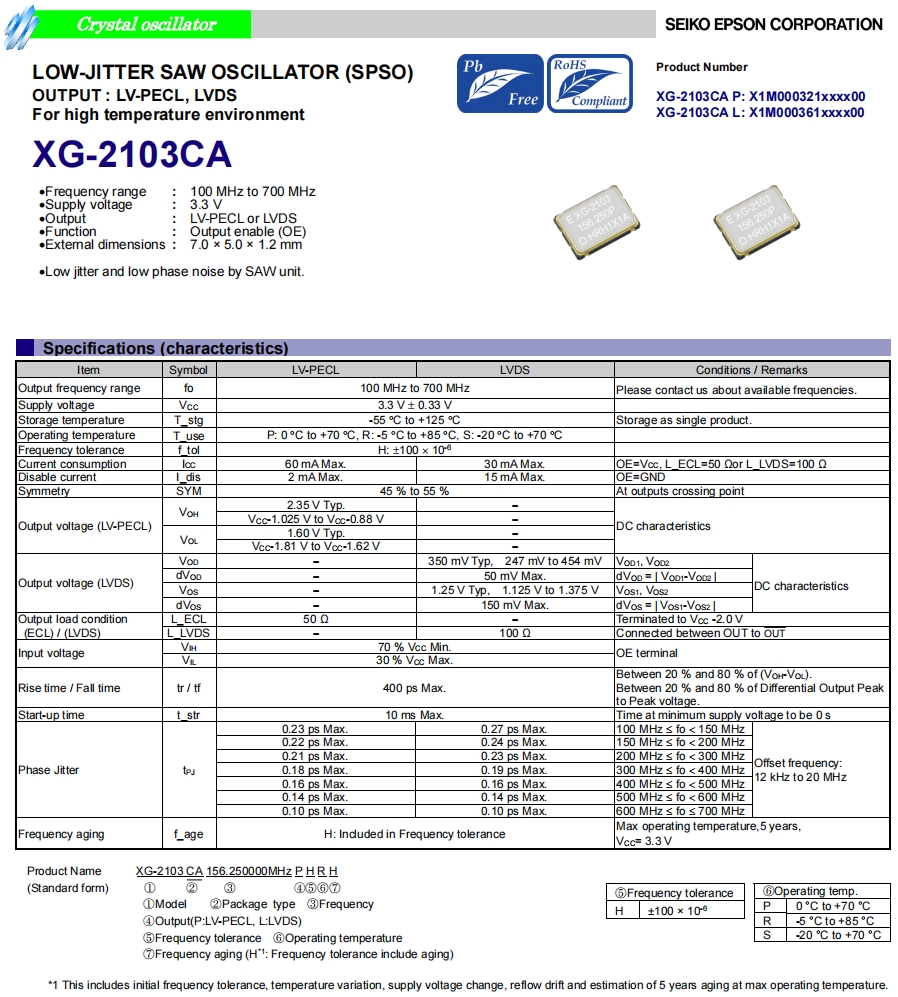

EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器 參數表

Specifications (characteristics)

Item

Symbol

LV-PECL

LVDS

Conditions / Remarks

Output frequency range

212.5 MHz

Please contact us about available frequencies.

Supply voltage

VCC

3.3 V ± 0.33 V

Storage temperature

T_stg

-55 °C to +125 °C

Storage as single product.

Operating temperature

T_use

P: 0 °C to +70 °C, R: -5 °C to +85 °C , S: -20 °C to +70 °C

Frequency tolerance

f_tol

H: ±100 × 10-6

Current consumption

ICC

60 mA Max.

30 mA Max.

OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω

Disable current

I_dis

2 mA Max.

15 mA Max.

OE=GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

2.35 V Typ.

−

DC characteristics

VCC- 1.025 V to VCC-0.88 V

−

VOL

1.60 V Typ.

−

VCC- 1.81 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

350 mV Typ, 247 mV to 454 mV

VOD1 , VOD2

DC characteristics

dVOD

−

50 mV Max.

dVOD = | VOD1-VOD2 |

VOS

−

1.25 V Typ, 1.125 V to 1.375 V

VOS1 , VOS2

dVOS

−

150 mV Max.

dVOS = | VOS1-VOS2 |

Output load condition
(ECL) / (LVDS)

L_ECL

50 Ω

−

Terminated to VCC -2.0 V

L_LVDS

−

100 Ω

Connected between OUT to OUT

Input voltage

VIH

70 % VCC Min.

OE terminal

VIL

30 % VCC Max.

Rise time / Fall time

tr / tf

400 ps Max.

Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

tPJ

0.23 ps Max.

0.27 ps Max.

100 MHz ≤ fo < 150 MHz

Offset frequency:
12 kHz to 20 MHz

0.22 ps Max.

0.24 ps Max.

150 MHz ≤ fo < 200 MHz

0.21 ps Max.

0.23 ps Max.

200 MHz ≤ fo < 300 MHz

0.18 ps Max.

0.19 ps Max.

300 MHz ≤ fo < 400 MHz

0.16 ps Max.

400 MHz ≤ fo < 500 MHz

0.14 ps Max.

500 MHz ≤ fo < 600 MHz

0.10 ps Max.

600 MHz ≤ fo ≤ 700 MHz

Frequency aging

f_age

H: Included in Frequency tolerance

Max operating temperature,5 years,
VCC= 3.3 V

EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器 尺寸圖

OSC晶振產品特性：

頻率范圍:100mhz ~ 700mhz

電源電壓:3.3 V

輸出:LV-PECL或LVDS

外部尺寸:7.0 × 5.0 × 1.2 mm

低抖動和低相位噪聲由SAW單元。更多相關日本EPSON晶振型號

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042810049	愛普生晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810050	愛普生晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810052	愛普生晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810053	愛普生晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810054	愛普生晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810055	愛普生晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810058	愛普生晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810059	愛普生晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810061	愛普生晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810062	愛普生晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810063	愛普生晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810064	愛普生晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810065	愛普生晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810066	愛普生晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810067	愛普生晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810068	愛普生晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810069	愛普生晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810071	愛普生晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810072	愛普生晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810073	愛普生晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810074	愛普生晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810079	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810080	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810083	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810084	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810087	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810088	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810091	愛普生晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810092	愛普生晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042810096	愛普生晶振	SG7050VAN	148.350000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810102	愛普生晶振	SG7050VAN	98.304000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810103	愛普生晶振	SG7050VAN	80.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810104	愛普生晶振	SG7050VAN	114.285000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810105	愛普生晶振	SG7050VAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042810106	愛普生晶振	SG7050VAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1M0001210001	愛普生晶振	EG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	3.000 to 3.600 V	-5 to 85 °C
X1M0001510002	愛普生晶振	EG-4101CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510003	愛普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510004	愛普生晶振	EG-4101CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510005	愛普生晶振	EG-4101CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510006	愛普生晶振	EG-4101CA	240.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510007	愛普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510008	愛普生晶振	EG-4101CA	148.351640 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001510009	愛普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1M0001810001	愛普生晶振	EG-4121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810002	愛普生晶振	EG-4121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810003	愛普生晶振	EG-4121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810004	愛普生晶振	EG-4121CA	375.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810005	愛普生晶振	EG-4121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0001810006	愛普生晶振	EG-4121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1M0002210002	愛普生晶振	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210003	愛普生晶振	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210004	愛普生晶振	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210005	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210006	愛普生晶振	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210007	愛普生晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002210008	愛普生晶振	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210009	愛普生晶振	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210010	愛普生晶振	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210011	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002310002	愛普生晶振	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310003	愛普生晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310004	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310005	愛普生晶振	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310006	愛普生晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0002310007	愛普生晶振	EG-2121CB	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310010	愛普生晶振	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310011	愛普生晶振	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310013	愛普生晶振	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310014	愛普生晶振	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310015	愛普生晶振	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310016	愛普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0002310017	愛普生晶振	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310018	愛普生晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310019	愛普生晶振	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310020	愛普生晶振	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002310021	愛普生晶振	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0002810003	愛普生晶振	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002810004	愛普生晶振	EG-2103CB	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002810006	愛普生晶振	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410005	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410006	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410008	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410009	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410010	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410011	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410012	愛普生晶振	XG-2102CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410013	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410014	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410015	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410016	愛普生晶振	XG-2102CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410017	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410018	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410019	愛普生晶振	XG-2102CA	133.333000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410020	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410021	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410022	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410023	愛普生晶振	XG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410024	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410025	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410026	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410027	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410028	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410029	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410030	愛普生晶振	XG-2102CA	192.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410031	愛普生晶振	XG-2102CA	140.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410032	愛普生晶振	XG-2102CA	166.666666 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410033	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410034	愛普生晶振	XG-2102CA	122.880000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410035	愛普生晶振	XG-2102CA	388.080000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410036	愛普生晶振	XG-2102CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410037	愛普生晶振	XG-2102CA	161.133000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410038	愛普生晶振	XG-2102CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410039	愛普生晶振	XG-2102CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410040	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410041	愛普生晶振	XG-2102CA	166.666700 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410042	愛普生晶振	XG-2102CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410043	愛普生晶振	XG-2102CA	644.532150 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410044	愛普生晶振	XG-2102CA	439.453125 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410045	愛普生晶振	XG-2102CA	161.133000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410047	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410048	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410049	愛普生晶振	XG-2102CA	144.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410050	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410052	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003510001	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510002	愛普生晶振	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510003	愛普生晶振	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510004	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510005	愛普生晶振	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510006	愛普生晶振	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510007	愛普生晶振	XG-2121CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510008	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510009	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510010	EPSON Crystal	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510011	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510012	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510013	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510014	愛普生晶振	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510015	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510016	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510017	愛普生晶振	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510018	愛普生晶振	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510019	愛普生晶振	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510020	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510021	愛普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510022	愛普生晶振	XG-2121CA	300.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510029	愛普生晶振	XG-2121CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510030	愛普生晶振	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510032	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510033	愛普生晶振	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510034	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510035	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510036	愛普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510037	愛普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510038	愛普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510039	愛普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510040	愛普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003610001	愛普生晶振	XG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003610002	愛普生晶振	XG-2103CA	133.333333 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0004210002	愛普生晶振	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C

EPSON愛普生晶振 X1M0003610001 6G模塊晶振 XG-2103CA石英差分振蕩器

采購：EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：

跟此產品相關的產品 / Related Products

: SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm; SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm,有源晶體振蕩器,荷蘭進口晶振,六腳差分晶振,3225mm晶振,SX3HK振蕩器,HCSL輸出晶振,差分貼片晶振,石英差分晶振,尺寸3.2x2.5mm,頻率52MHZ,輸出HCSL,耐高溫晶振,低相位晶振,低相噪晶振,低電流晶振,多媒體設備晶振,儀器設備晶振,測試設備晶振,數字視頻晶振.

: FCD-Tech機頂盒晶振,SX3EK33F20E-48MHz,LVPECL,3225mm,48MHZ; FCD-Tech機頂盒晶振,SX3EK33F20E-48MHz,LVPECL,3225mm,48MHZ,荷蘭進口晶振,六腳差分晶振,3225mm時鐘振蕩器,有源貼片晶振,48MHZ有源晶振,LVPECL差分晶振,差分晶體振蕩器,貼片差分晶振,尺寸3.2x2.5mm,頻率48MHZ,輸出邏輯LVPECL,低抖動晶振,低電壓晶振,低相位晶振,低相噪晶振,SDH應用晶振,無線路由器晶振,小家電晶振,機頂盒晶振.

Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振

Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振，尺寸7.0x5.0mm，頻率200MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm，Skyworks差分晶振，思佳訊LVDS有源振蕩器，六腳差分振蕩器，貼片差分晶振，7050mm差分晶振，有源差分振蕩器，差分晶振LVDS，差分晶體振蕩器，石英差分振蕩器，低電壓差分晶振，低耗能差分晶振，高精度差分晶振，高頻差分振蕩器，低損耗差分振蕩器，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，視聽設備差分晶振，北斗導航差分晶振，儀器儀表差分晶振，無線模塊專用差分晶振，測試測量差分晶振，交換機差分晶振，衛星通信專用差分晶振，具有低抖動低相位的特點。

貼片差分晶振產品比較適合用于視聽設備，北斗導航，儀器儀表，無線模塊，測試測量，交換機，衛星通信等領域.Si591視聽設備晶振,591BC200M000DG,思佳訊SMD差分晶振.

產品中心 Product Center
