當前位置：首頁 » 歐美晶振 » FOX晶振 » 32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體

prevnext

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體

頻率：32.768KHz

尺寸：2.0x6.0mm

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體，美國進口晶振，?？怂咕д?，FOX晶振，型號：FKT26（Former NC26LF），編碼為：NC26LF-327，頻率：32.768KHz，小體積晶振尺寸：2.0x6.0mm，兩腳插件晶振，石英晶振，無源晶振，圓柱晶振，音叉表晶，石英晶體諧振器，無鉛晶振。應用于：無線藍牙晶振，電腦主板晶振，數碼電子晶振，計時晶振，數碼相機晶振，智能家居晶振，儀器設備晶振等應用。

訂購熱線：86-0755-27838351

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體，美國進口晶振，?？怂咕д瘢?/span>FOX晶振，型號：FKT26（Former NC26LF），編碼為：NC26LF-327，頻率：32.768KHz，小體積晶振尺寸：2.0x6.0mm，兩腳插件晶振，石英晶振，無源晶振，圓柱晶振，音叉表晶，石英晶體諧振器，無鉛晶振。應用于：無線藍牙晶振，電腦主板晶振，數碼電子晶振，計時晶振，數碼相機晶振，智能家居晶振，儀器設備晶振等應用。

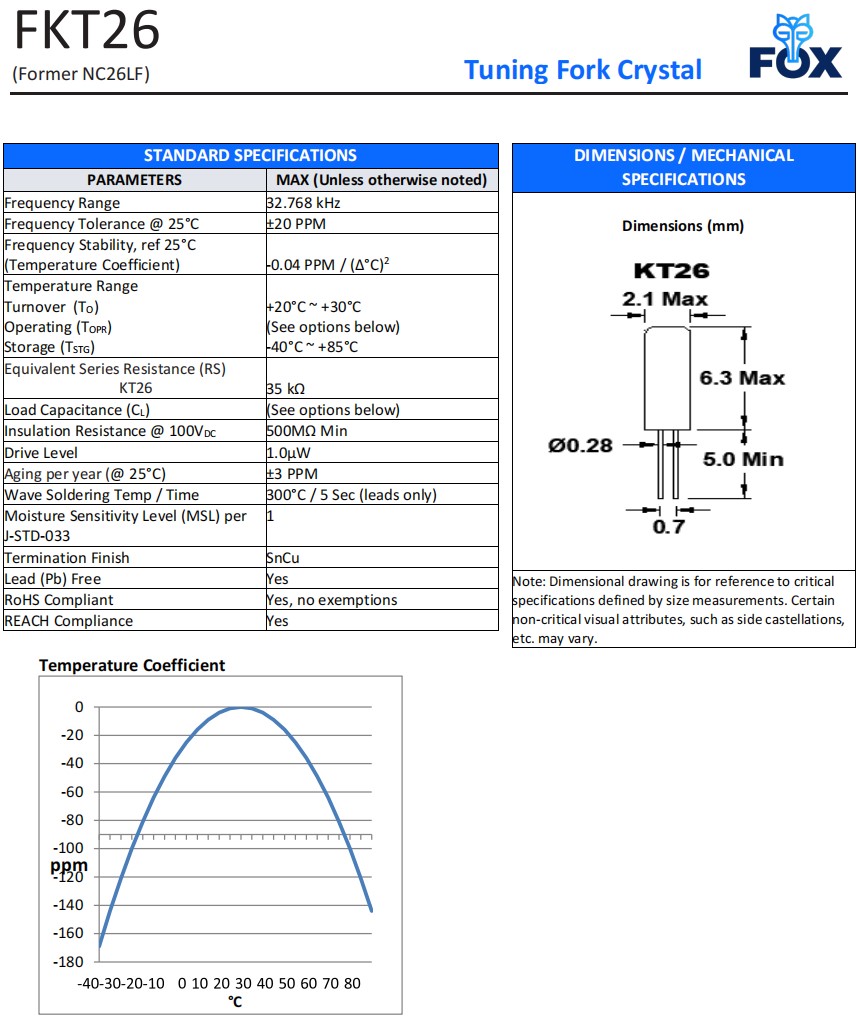

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體,參數表

PARAMETERS							MAX (Unless otherwise noted)
Frequency Range							32.768 kHz
Frequency Tolerance @ 25°C							±20 PPM
Frequency Stability, ref 25°C (Temperature Coefficient)							-0.04 PPM / (△°C)2
Temperature Range Turnover (TO) Operating (TOPR) Storage (TSTG)							+20°C ~ +30°C (See options below) -40°C ~ +85°C
Equivalent Series Resistance (RS) KT26							35 kΩ
Load Capacitance (CL)							(See options below)
Insulation Resistance @ 100VDC							500MΩ Min
Drive Level							1.0µW
Aging per year (@ 25°C)							±3 PPM
Wave Soldering Temp / Time							300°C / 5 Sec (leads only)
Moisture Sensitivity Level (MSL) per J-STD-033							1
Termination Finish							SnCu
Lead (Pb) Free							Yes
RoHS Compliant							Yes, no exemptions
REACH Compliance							Yes

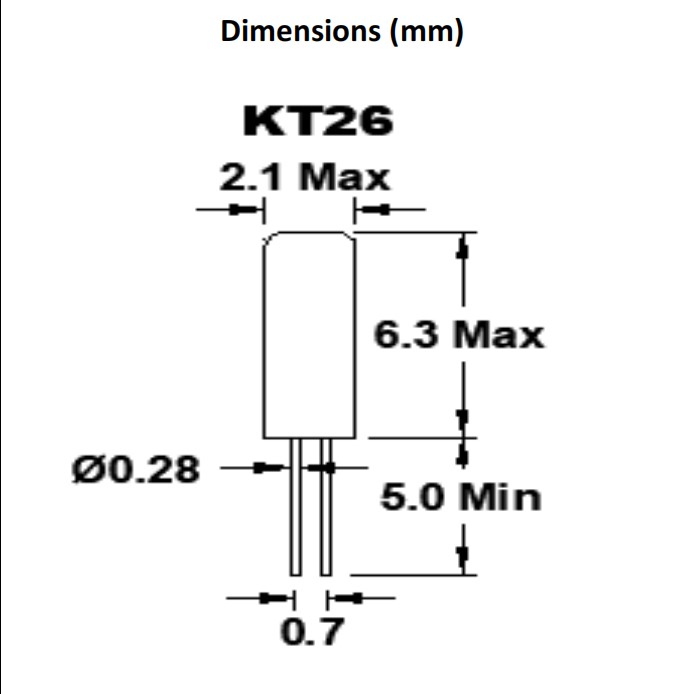

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體,尺寸圖

原廠編碼	進口晶振	型號	頻率	包裝/封裝	頻率穩定度
FOXSDLF/160-20	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200-20	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FOXSDLF/240F-20	Fox晶振	HC49SDLF	24MHz	HC49/US	±50ppm
FOXSLF/200-20	Fox晶振	HC49SLF	20MHz	HC49/US	±50ppm
FOXSLF/100-20	Fox晶振	HC49SLF	10MHz	HC49/US	±50ppm
FX252BS-16.000	Fox晶振	FX252B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±30ppm
FOXLF100-20	Fox晶振	HC49ULF	10MHz	HC49/U	±50ppm
FOXLF200-20	Fox晶振	HC49ULF	20MHz	HC49/U	±50ppm
FQ3225B-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FX252BS-24.000	Fox晶振	FX252B	24MHz	4-SMD, No Lead	±50ppm
FOXSLF/160-20	Fox晶振	HC49SLF	16MHz	HC49/US	±50ppm
FOXSLF/160	Fox晶振	HC49SLF	16MHz	HC49/US	±50ppm
FOXSLF/245F-20	Fox晶振	HC49SLF	24.576MHz	HC49/US	±50ppm
FOXSLF/240F-20	Fox晶振	HC49SLF	24MHz	HC49/US	±50ppm
FOXLF160	Fox晶振	HC49ULF	16MHz	HC49/U	±50ppm
FOXLF160-20	Fox晶振	HC49ULF	16MHz	HC49/U	±50ppm
FOXSDLF/245F-20	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FOXSDLF/100-20	Fox晶振	HC49SDLF	10MHz	HC49/US	±50ppm
FOXSDLF/160R-20/TR	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200R-20/TR	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FOXSDLF/245FR-20/TR	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FQ5032B-24.576	Fox晶振	C5BQ	24.576MHz	4-SMD, No Lead	±30ppm
FQ5032B-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±30ppm
FQ5032B-16.000	石英晶振	C5BQ	16MHz	4-SMD, No Lead	±30ppm
FQ5032BR-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±50ppm
FQ7050B-10.000	Fox晶振	C7BQ	10MHz	4-SMD, No Lead	±30ppm
FQ3225B-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225B-27.000	Fox晶振	FQ3225B	27MHz	4-SMD, No Lead	±50ppm
FQ3225BR-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FOXSLF/200	Fox晶振	HC49SLF	20MHz	HC49/US	±50ppm
FOXSDLF/100R-20/TR	Fox晶振	HC49SDLF	10MHz	HC49/US	±50ppm
FOXSDLF/240FR-20/TR	Fox晶振	HC49SDLF	24MHz	HC49/US	±50ppm
FX252BS-20.000	Fox晶振	FX252B	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ5032BR-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±50ppm
FX532B-10.000	Fox晶振	FX532B	10MHz	4-SMD, No Lead	±50ppm
FX425B-16.000	Fox晶振	FX425B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ3225B-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FQ3225BR-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FX532B-16.000	Fox晶振	FX532B	16MHz	4-SMD, No Lead	±50ppm
FX532B-20.000	Fox晶振	FX532B	20MHz	4-SMD, No Lead	±50ppm
FX532B-24.000	Fox晶振	FX532B	24MHz	4-SMD, No Lead	±50ppm
FX532B-24.576	Fox晶振	FX532B	24.576MHz	4-SMD, No Lead	±50ppm
FX425B-20.000	Fox晶振	FX425B	20MHz	4-SMD, No Lead	±50ppm
FX425B-24.000	Fox晶振	FX425B	24MHz	4-SMD, No Lead	±50ppm
FX425B-24.576	Fox晶振	FX425B	24.576MHz	4-SMD, No Lead	±50ppm
FPXLF100-20	Fox晶振	FPXLF	10MHz	4-SMD, No Lead	±50ppm
FPXLF160	Fox晶振	FPXLF	16MHz	4-SMD, No Lead	±50ppm
FPXLF160-20	Fox晶振	FPXLF	16MHz	4-SMD, No Lead	±50ppm
FPXLF200-20	Fox晶振	FPXLF	20MHz	4-SMD, No Lead	±50ppm
