康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本WLAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
頻率：40MHz
尺寸：2.5x2.0x0.9mm

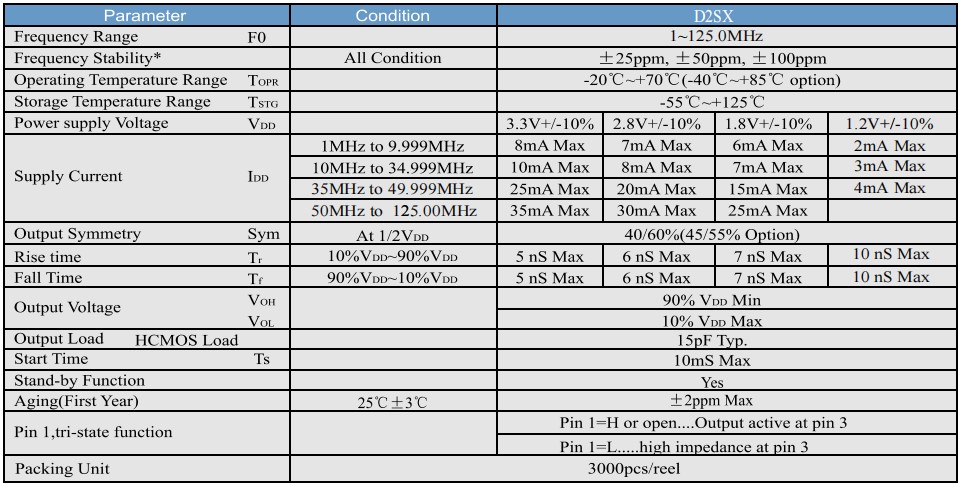

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振,參數表

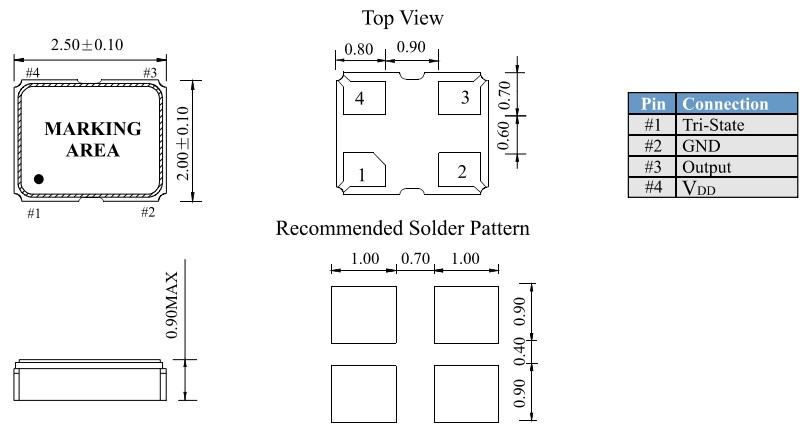

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振,尺寸圖
| 產品編碼 | 小體積貼片晶振 | 系列 | 頻率 | 電源電壓 | 頻率穩定性 |
| D3SX00327000ME | Hosonic鴻星 | D3SX | 32.768 kHz | 1.8V | ±25ppm |
| D2SX003270004E | Hosonic鴻星 | D2SX | 32.768 kHz | 1.8V | ±25ppm |
| D7SX4E000000UE | Hosonic鴻星 | D7SX | 4MHz | 3.3V | ±50ppm |
| D2SX25E00000BE | Hosonic鴻星 | D2SX | 25MHz | 3.3V | ±25ppm |
| D3SX38E0X0003E | Hosonic鴻星 | D3SX | 38.4MHz | 3.3V | ±25ppm |
| D3SX12E0X000BE | Hosonic鴻星 | D3SX | 12.288MHz | 1.8V | 15pF |
| D3SX12E00000HE | Hosonic鴻星 | D3SX | 12MHz | 3.3V | ±25ppm |
| D3SX24E000001E | Hosonic鴻星 | D3SX | 24MHz | 3.3V | ±25ppm |
| D3SX100E00007E | Hosonic鴻星 | D3SX | 100MHZ | 3.3V | ±30ppm |
| D3SX50E000002E | Hosonic鴻星 | D3SX | 50MHZ | 3.3V | ±30ppm |
| D3SX20E000001E | Hosonic鴻星 | D3SX | 20MHz | 3.3V | ±25ppm |
| D2SX100E00003E | Hosonic鴻星 | D2SX | 100MHz | 1.8V | ±25ppm |
| D2SX50E000009E | Hosonic鴻星 | D2SX | 50MHz | 3.3V | ±25ppm |
| D3SX40E00000EE | Hosonic鴻星 | D3SX | 40MHz | 3.3V | ±25ppm |
| D2SX40E000001E | Hosonic鴻星 | D2SX | 40MHz | 3.3V | ±25ppm |
| D3SX25E000006E | Hosonic鴻星 | D3SX | 25MHz | 3.3V | ±25ppm |
| D2SX20E000000E | Hosonic鴻星 | D2SX | 20MHZ | 3.3V | ±30ppm |
| D36B62.5000NNS | Hosonic鴻星 | HXO-36 | 62.5MHz | 3.3V | ±50ppm |
| D36B3.68640NNS | Hosonic鴻星 | HXO-36 | 3.6864MHz | 3.3V | ±50ppm |
| D36B4.00000NNS | Hosonic鴻星 | HXO-36 | 4MHz | 3.3V | ±50ppm |
| D36B6.00000NNS | Hosonic鴻星 | HXO-36 | 6MHz | 3.3V | ±50ppm |
| D36B8.00000NNS | Hosonic鴻星 | HXO-36 | 8MHz | 3.3V | ±50ppm |
| D36B10.0000NNS | Hosonic鴻星 | HXO-36 | 10MHz | 3.3V | ±50ppm |
| D36B12.0000NNS | Hosonic鴻星 | HXO-36 | 12MHz | 3.3V | ±50ppm |
| D36B14.3181NNS | Hosonic鴻星 | HXO-36 | 14.3181MHz | 3.3V | ±50ppm |
| D36B14.7456NNS | Hosonic鴻星 | HXO-36 | 14.7456MHz | 3.3V | ±50ppm |
| D36B16.0000NNS | Hosonic鴻星 | HXO-36 | 16MHz | 3.3V | ±50ppm |
| D36B18.4320NNS | Hosonic鴻星 | HXO-36 | 18.432MHz | 3.3V | ±50ppm |
| D36B20.0000NNS | Hosonic鴻星 | HXO-36 | 20MHz | 3.3V | ±50ppm |
| D36B24.0000NNS | Hosonic鴻星 | HXO-36 | 24MHz | 3.3V | ±50ppm |
| D36B24.5760NNS | Hosonic鴻星 | HXO-36 | 24.576MHz | 3.3V | ±50ppm |
| D36A25.0000WTS | 有源晶振 | HXO-36 | 25MHz | 3.3V | ±50ppm |
| D36B27.0000NNS | Hosonic鴻星 | HXO-36 | 27MHz | 3.3V | ±50ppm |
| D36B33.0000NNS | Hosonic鴻星 | HXO-36 | 30MHz | 3.3V | ±50ppm |
| D36B33.3330NNS | Hosonic鴻星 | HXO-36 | 33.333MHz | 3.3V | ±50ppm |
| D36B48.0000NNS | Hosonic鴻星 | HXO-36 | 48MHz | 3.3V | ±50ppm |
| D36B50.0000NNS | Hosonic鴻星 | HXO-36 | 50MHz | 3.3V | ±50ppm |
| D36B66.0000NNS | Hosonic鴻星 | HXO-36 | 66MHz | 3.3V | ±50ppm |
| D36B100.000NNS | Hosonic鴻星 | D36B | 100MHz | 3.3V | ±50ppm |
| D36B125.0000NTS | Hosonic鴻星 | D36B | 125MHz | 2.5V | ±50ppm |
| D56A25.0000WTS | Hosonic鴻星 | HXO-56 | 25 MHz | 3.3V | ±50ppm |
| D56A30.0000MTS | Hosonic鴻星 | HXO-56 | 30Mhz | 3.3V | ±50ppm |
| D56B12.0000NNS | Hosonic鴻星 | HXO-56 | 12 MHz | 3.3V | ±50ppm |
| D56B14.7456NNS | Hosonic鴻星 | HXO-56 | 14.745MHz | 3.3V | ±50ppm |
| D56B16.0000NNS | Hosonic鴻星 | HXO-56 | 16 MHz | 3.3V | ±50ppm |
| D56B24.0000NNS | Hosonic鴻星 | HXO-56 | 24 MHz | 3.3V | ±50ppm |
| D56B25.0000NNS | Hosonic鴻星 | HXO-56 | 25 MHz | 3.3V | ±50ppm |
| D56B33.0000WTS | Hosonic鴻星 | HXO-56 | 33MHz | 3.3V | ±50ppm |
| D56B50.0000NNS | Hosonic鴻星 | HXO-56 | 50 MHz | 3.3V | ±50ppm |
| DSCB4.91520NNS | Hosonic鴻星 | HXO-SC | 4.9152MHZ | 3.3V | ±50ppm |
| DSCB14.3181NNS | Hosonic鴻星 | HXO-SC | 14.3181MHZ | 3.3V | ±50ppm |
| DSCB20.0000NNS | Hosonic鴻星 | HXO-SC | 20 MHz | 3.3V | ±50ppm |
| DSCB24.0000NNS | Hosonic鴻星 | HXO-SC | 24 MHz | 3.3V | ±50ppm |
| DSCB25.0000NNS | Hosonic鴻星 | HXO-SC | 25 MHz | 3.3V | ±50ppm |
| DSCB27.0000NNS | Hosonic鴻星 | HXO-SC | 27 MHz | 3.3V | ±50ppm |
