頻率：32.768KHz
尺寸：3.2x1.5mm
Suntsu時鐘晶振,SAW31209D4B-32.768K,儀器儀表設備晶振，美國進口晶振，Suntsu松圖晶振，型號：SAW312，編碼為：SAW31209D4B-32.768K，頻率為：32.768KHz，小體積晶振尺寸：3.2x1.5mm封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，3215晶振，耐高溫晶振，貼片表晶，手表晶體，無鉛晶振，SMD石英晶體，工作溫度范圍：-40℃至+125℃，符合AEC-Q200。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。進口貼片晶振，應用于：通訊設備晶振，汽車電子信息，車載控制器，娛樂系統，汽車電子，ECU子時鐘，實時時鐘，儀器儀表設備，鐘表電子晶振，時鐘晶振，智能手機，智能手表，數字顯示，智能門鎖，數碼電子等應用。

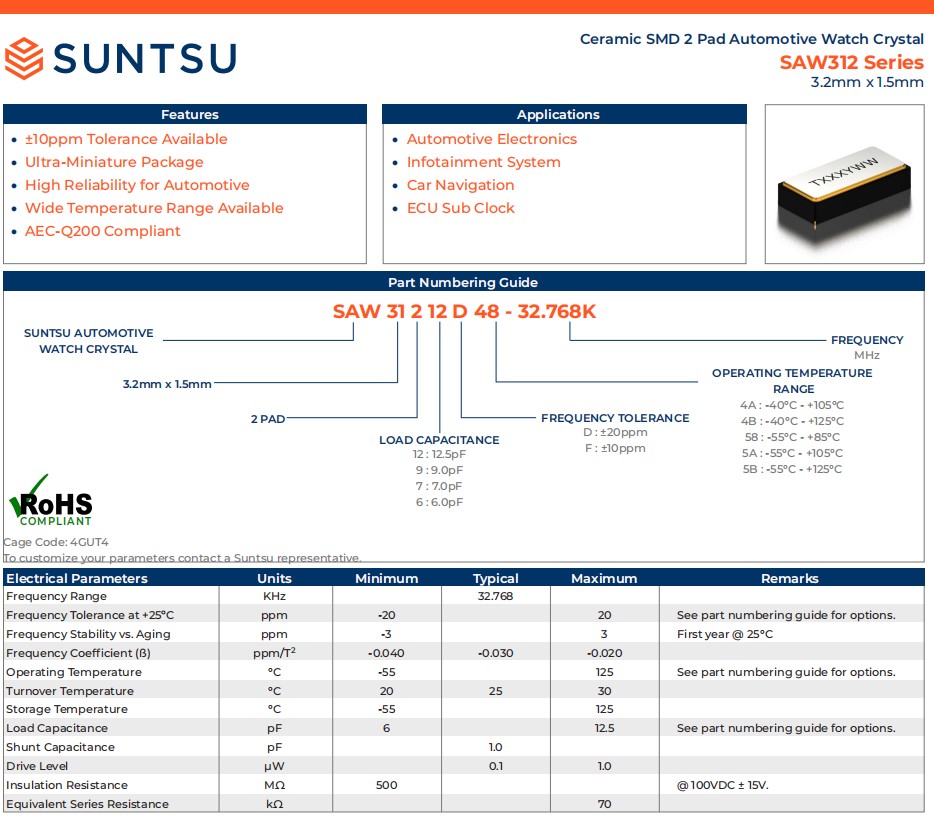

Suntsu時鐘晶振,SAW31209D4B-32.768K,儀器儀表設備晶振,參數表
Electrical Parameters
Units
Minimum
Typical
Maximum
Remarks
Frequency Range
KHz
32.768
Frequency Tolerance at +25ºC
ppm
-20
20
See part numbering guide for options.
Frequency Stability vs. Aging
ppm
-3
3
First year @ 25°C
Frequency Coefficient (?)
ppm/T2
-0.040
-0.030
-0.020
Operating Temperature
°C
-55
125
See part numbering guide for options.
Turnover Temperature
°C
20
25
30
Storage Temperature
°C
-55
125
Load Capacitance
pF
6
12.5
See part numbering guide for options.
Shunt Capacitance
pF
1.0
Drive Level
µW
0.1
1.0
Insulation Resistance
MΩ
500
@ 100VDC ± 15V.
Equivalent Series Resistance
kΩ
70

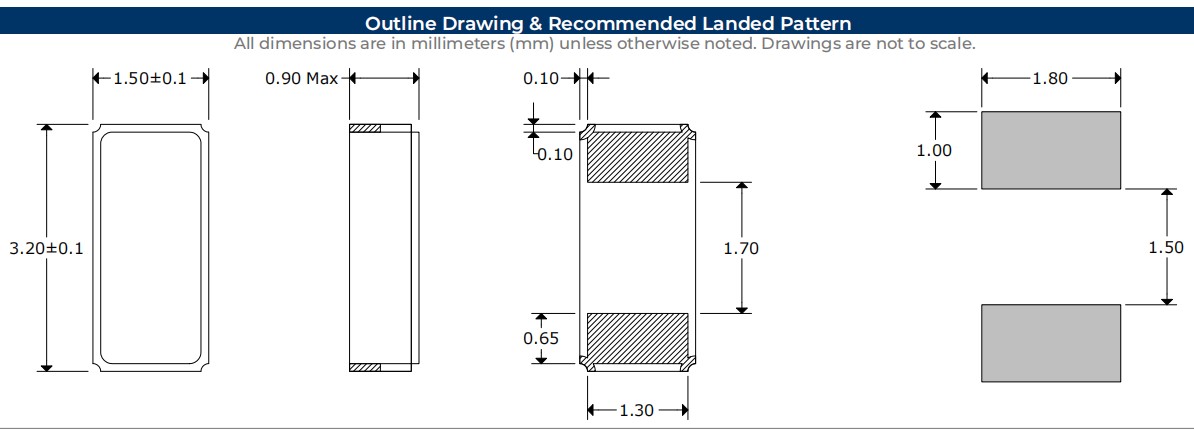

Suntsu時鐘晶振,SAW31209D4B-32.768K,儀器儀表設備晶振,尺寸圖

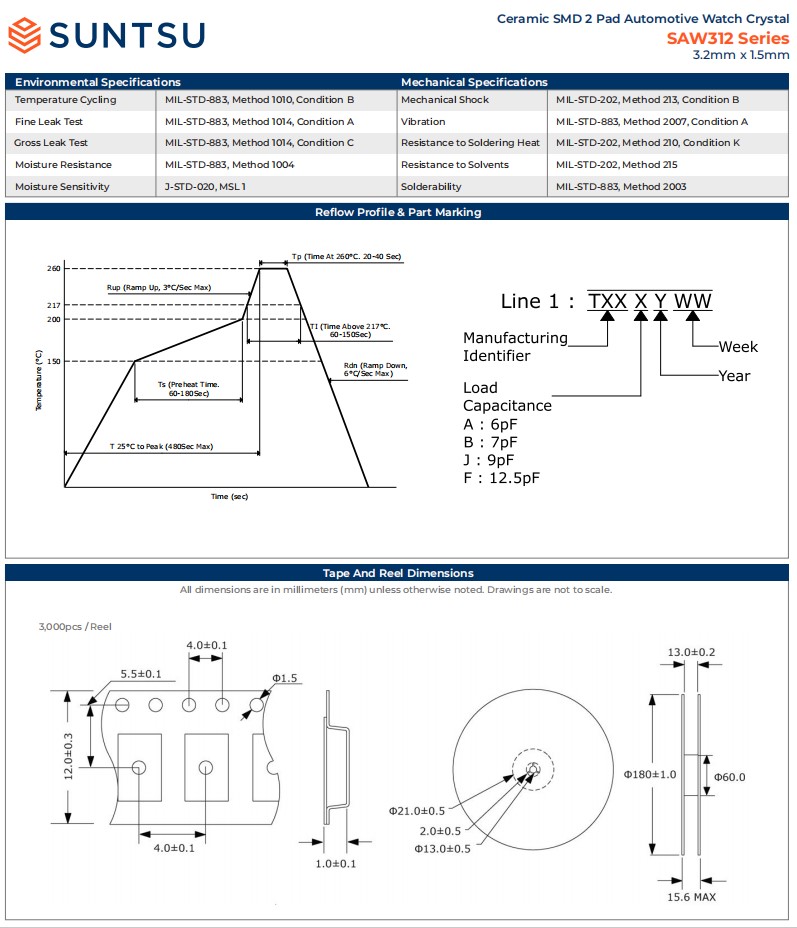

Suntsu時鐘晶振,SAW31209D4B-32.768K,儀器儀表設備晶振
產品特點：
外形尺寸：3.2mmx1.5mm
頻率：32.768K晶體
可提供±10ppm公差
超小型封裝
汽車的高可靠性
可提供寬溫度范圍
符合AEC-Q200標準
應用于：汽車電子，信息娛樂系統，汽車導航，ECU子時鐘
| 石英貼片晶振 | 包裝尺寸 | 負載 | 頻率容差 | 工作溫度 | 頻率 |
| SWS10212D48-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS10209D16-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS10207D48-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS10206D16-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS11212D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS11212D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1127D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1129D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS1129D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1449D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS21212D48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS2129F48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±10ppm | -40℃ - +85℃ | 32.768K |
| SAW21212D4B-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +125℃ | 32.768K |
| SAW21209F4A-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±10ppm | -40℃ - +105℃ | 32.768K |
| SAW21207D58-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -55℃ - +85℃ | 32.768K |
| SAW21206F5B-32.768K | 2.0X1.2mm 計時產品晶振 | 6pF | ±10ppm | -55℃ - +125℃ | 32.768K |
| SWS31212D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS31212D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3126D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3126D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3127D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3127D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3129D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3129D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS41212D16-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS41212D48-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS51212D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5127D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5129D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS61412D48-32.768K | 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS83412D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS83412D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8346D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8346D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8347D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8347D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8349D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8349D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
