當前位置：首頁 » 歐美晶振 » SUNTSU晶振 » Suntsu超小型晶振,SWS10212D48-32.768K,無線應用晶振

prevnext

Suntsu超小型晶振,SWS10212D48-32.768K,無線應用晶振

頻率：32.768KHz

尺寸：1.2x1.0x0.5mm

Suntsu超小型晶振,SWS10212D48-32.768K,無線應用晶振，美國進口晶振，Suntsu晶振，松圖晶振，型號：SWS102，編碼為：SWS10212D48-32.768K，頻率為：32.768KHz，小體積晶振尺寸：1.2x1.0x0.5mm超小型封裝，±20ppm（公差）可用，磁帶和卷軸，兩腳貼片晶振，石英晶體，手表晶體，貼片表晶，無源晶振，石英晶振，石英晶體諧振器，SMD晶振，石英鐘晶振，蠟燭燈晶體，數字游戲機晶體，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，高精度，高性能，耐熱及耐環境特點，應用于：實時時鐘，測量?jī)x器，無線應用程序，鐘表電子，智能手機，智能手表，時鐘晶振，儀器儀表設備，智能門鎖，電話機表晶，數字顯示設備，計算機晶振，玩具晶振，數碼電子等應用。

訂購熱線：86-0755-27838351

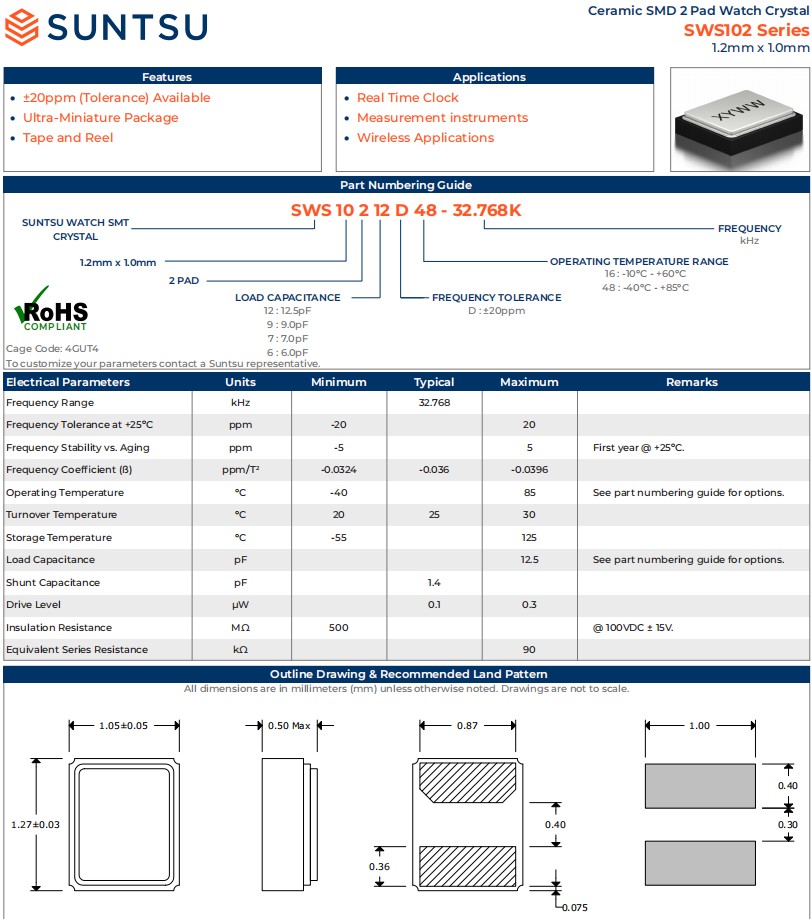

Suntsu超小型晶振,SWS10212D48-32.768K,無線應用晶振,參數表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	kHz		32.768
Frequency Tolerance at +25ºC	ppm	-20		20
Frequency Stability vs. Aging	ppm	-5		5	First year @ +25ºC.
Frequency Coefficient (β)	ppm/T2	-0.0324	-0.036	-0.0396
Operating Temperature	°C	-40		85	See part numbering guide for options.
Turnover Temperature	°C	20	25	30
Storage Temperature	°C	-55		125
Load Capacitance	pF			12.5	See part numbering guide for options.
Shunt Capacitance	pF		1.4
Drive Level	µW		0.1	0.3
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
Equivalent Series Resistance	kΩ			90

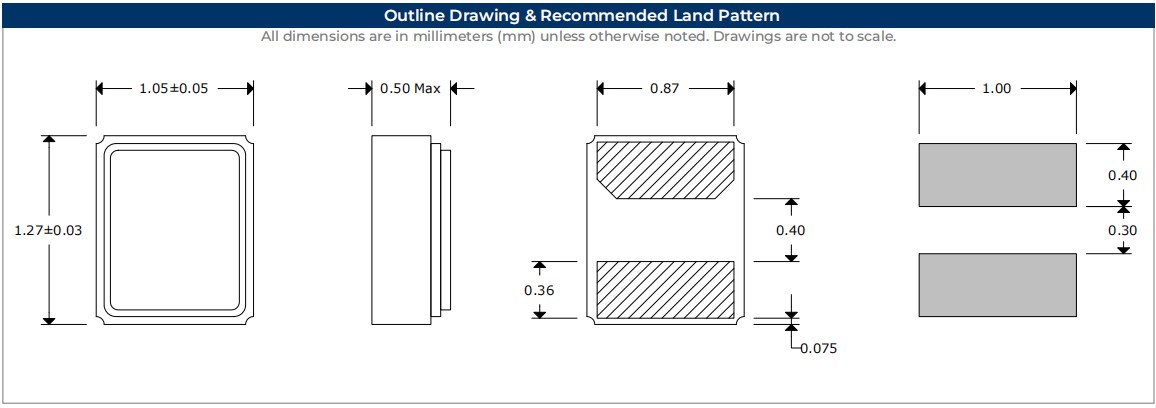

Suntsu超小型晶振,SWS10212D48-32.768K,無線應用晶振,尺寸圖

Suntsu超小型晶振,SWS10212D48-32.768K,無線應用晶振

產品特點：

外形尺寸：1.2mmx1.0mmx0.5mm

頻率：32.768KHz石英晶振

±20ppm（公差）可用
超小型封裝
磁帶和卷軸
應用于：實時時鐘，測量?jī)x器，無線應用程序

產品編碼	進口貼片晶振	負載	頻率容差	工作溫度	頻率
SWS10212D48-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS10209D16-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS10207D48-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS10206D16-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS11212D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS11212D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1127D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS1129D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS1129D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1449D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS21212D48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS2129F48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±10ppm	-40℃ - +85℃	32.768K
SAW21212D4B-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +125℃	32.768K
SAW21209F4A-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±10ppm	-40℃ - +105℃	32.768K
SAW21207D58-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-55℃ - +85℃	32.768K
SAW21206F5B-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±10ppm	-55℃ - +125℃	32.768K
SWS31212D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS31212D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS3126D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS3126D48-32.768K	3.2X1.5 mm美國松圖晶振	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS3127D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS3127D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS3129D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS3129D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS41212D16-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS41212D48-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS51212D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS5127D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS5129D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS61412D48-32.768K	6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS83412D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS83412D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS8346D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS8346D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS8347D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS8347D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS8349D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS8349D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
