頻率：100MHZ
尺寸：5.00mmx3.20mm
511FCA100M000BAG-Silicon差分振蕩器-6G交換機晶振-Si511有源晶振，尺寸為5.00mmx3.20mm，頻率100MHZ，電壓為2.5V，頻率穩定性20ppm.輸出為LVDS，Silicon Crystal，Silicon有源振蕩器，差分晶振LVDS，低功耗振蕩器，有源貼片晶振，XO時鐘振蕩器，SMD振蕩器，低電壓晶振，低相噪振蕩器，低相位差分晶振，低抖動差分晶振，Si510/511 XO采用了Skyworks Solutions公司先進的DSPLL技術提供從100千赫到250兆赫的任何頻率。不像傳統的XO其中每個輸出頻率需要不同的晶體，Si510/511使用一個固定晶體和Skyworks Solutions的專有DSPLL合成器在這個范圍內產生任何頻率。

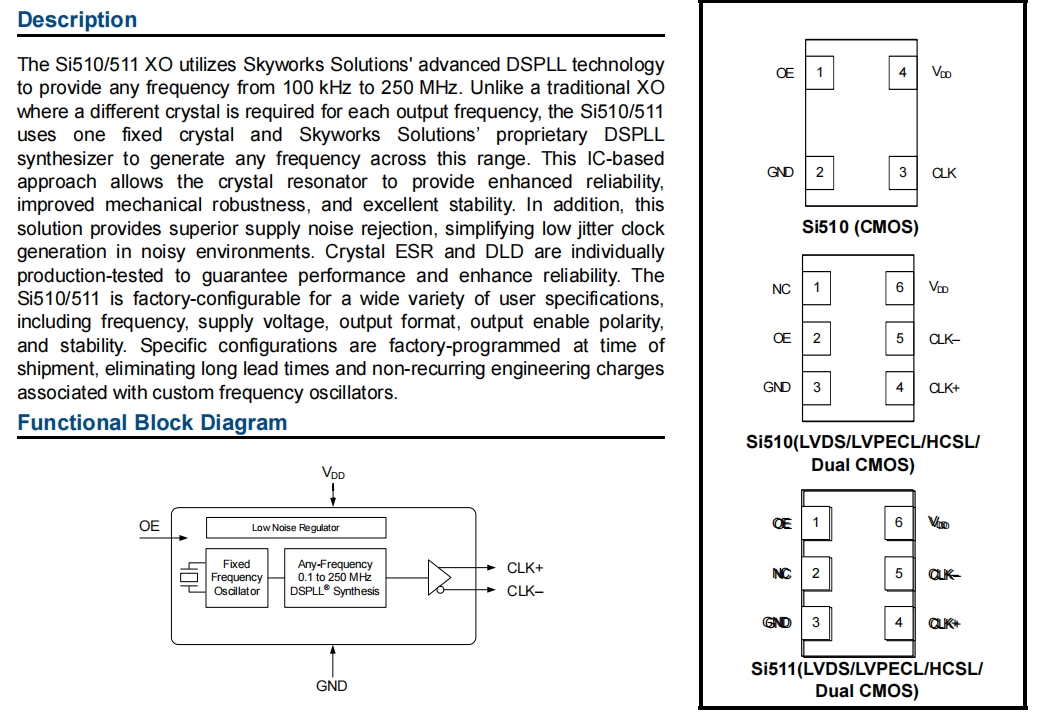

這解決方案提供卓越的電源噪聲抑制，簡化低抖動時鐘在嘈雜的環境中產生。晶體ESR和DLD是獨立的生產測試，以保證性能和提高可靠性。Si510/511差分晶體振蕩器可在工廠配置，適用于各種用戶規格;包括頻率、電源電壓、輸出格式、輸出使能極性、和穩定性。特定的配置是在出廠時編程的運輸，消除了漫長的交貨期和非經常性的工程費用與自定義頻率振蕩器相關聯。511FCA100M000BAG-Silicon差分振蕩器-6G交換機晶振-Si511有源晶振.
511FCA100M000BAG-Silicon差分振蕩器-6G交換機晶振-Si511有源晶振，尺寸為5.00mmx3.20mm，頻率100MHZ，電壓為2.5V，頻率穩定性20ppm.輸出為LVDS，Silicon Crystal，Silicon有源振蕩器，差分晶振LVDS，低功耗振蕩器，有源貼片晶振，XO時鐘振蕩器，SMD振蕩器，低電壓晶振，低相噪振蕩器，低相位差分晶振，低抖動差分晶振，Si510/511 XO采用了Skyworks Solutions公司先進的DSPLL技術提供從100千赫到250兆赫的任何頻率。不像傳統的XO其中每個輸出頻率需要不同的晶體，Si510/511使用一個固定晶體和Skyworks Solutions的專有DSPLL合成器在這個范圍內產生任何頻率。
這解決方案提供卓越的電源噪聲抑制，簡化低抖動時鐘在嘈雜的環境中產生。晶體ESR和DLD是獨立的生產測試，以保證性能和提高可靠性。Si510/511差分晶體振蕩器可在工廠配置，適用于各種用戶規格;包括頻率、電源電壓、輸出格式、輸出使能極性、和穩定性。特定的配置是在出廠時編程的運輸，消除了漫長的交貨期和非經常性的工程費用與自定義頻率振蕩器相關聯。511FCA100M000BAG-Silicon差分振蕩器-6G交換機晶振-Si511有源晶振.
511FCA100M000BAG-Silicon差分振蕩器-6G交換機晶振-Si511有源晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | |||||||||||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | |||||||||||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | |||||||||||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | |||||||||||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | |||||||||||||||||||
| OE "1" Setting | VIH | See Note | 0.80 x V DD | — | — | V | |||||||||||||||||
| OE "0" Setting | VIL | See Note | — | — | 0.20 x V DD | V | |||||||||||||||||
|
OE Internal Pull-Up/Pull- Down Resistor* |
RI | — | 45 | — | kΩ | ||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | |||||||||||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | |||||||||||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | |||||||||||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | |||||||||||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | |||||||||||||||||||
| OE "1" Setting | VIH | See Note | 0.80 x V DD | — | — | V | |||||||||||||||||
| OE "0" Setting | VIL | See Note | — | — | 0.20 x V DD | V | |||||||||||||||||
|
OE Internal Pull-Up/Pull- Down Resistor* |
RI | — | 45 | — | kΩ | ||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | |||||||||||||||||
|
CMOS Output Logic High |
V OH | 0.85 x V DD | — | — | V | ||||||||||||||||||
|
CMOS Output Logic Low |
VOL | — | — | 0.15 x V DD | V | ||||||||||||||||||
|
CMOS Output Logic High Drive |
I OH | 3.3 V | –8 | — | — | mA | |||||||||||||||||
| 2.5 V | –6 | — | — | mA | |||||||||||||||||||
| 1.8 V | –4 | — | — | mA | |||||||||||||||||||
|
CMOS Output Logic Low Drive |
I OL | 3.3 V | 8 | — | — | mA | |||||||||||||||||
| 2.5 V | 6 | — | — | mA | |||||||||||||||||||
| 1.8 V | 4 | — | — | mA | |||||||||||||||||||
|
CMOS Output Rise/Fall Time (20 to 80% V DD) |
TR/T F |
0.1 to 212.5 MHz, CL = 15 pF |
0.45 | 0.8 | 1.2 | ns | |||||||||||||||||
|
0.1 to 212.5 MHz, CL = no load |
0.3 | 0.6 | 0.9 | ns | |||||||||||||||||||
|
LVPECL Output Rise/Fall Time (20 to 80% VDD) |
TR/T F | 100 | — | 565 | ps | ||||||||||||||||||
|
HCSL Output Rise/Fall Time (20 to 80% VDD) |
TR/T F | 100 | — | 470 | ps | ||||||||||||||||||
|
LVDS Output Rise/Fall Time (20 to 80% VDD) |
TR/T F | 350 | — | 800 | ps | ||||||||||||||||||
|
LVPECL Output Common Mode |
VOC |
50 Ω to V DD – 2 V, single-ended |
— |
V DD – 1.4 V |
— | V | |||||||||||||||||
| LVPECL Output Swing | VO |
50 Ω to V DD – 2 V, single-ended |
0.55 | 0.8 | 0.90 | VPPSE | |||||||||||||||||
|
LVDS Output Common Mode |
VOC |
100 Ω line-line V DD= 3.3/2.5 V |
1.13 | 1.23 | 1.33 | V | |||||||||||||||||
| 100 Ω line-line, V DD= 1.8 V | 0.83 | 0.92 | 1.00 | V | |||||||||||||||||||
| LVDS Output Swing | VO |
Single-ended, 100 Ω differential termination |
0.25 | 0.35 | 0.45 | VPPSE | |||||||||||||||||
|
HCSL Output Common Mode |
VOC | 50 Ω to ground | 0.35 | 0.38 | 0.42 | V | |||||||||||||||||
| HCSL Output Swing | VO | Single-ended | 0.58 | 0.73 | 0.85 | VPPSE | |||||||||||||||||
| Duty Cycle | DC | All formats | 48 | 50 | 52 | % | |||||||||||||||||

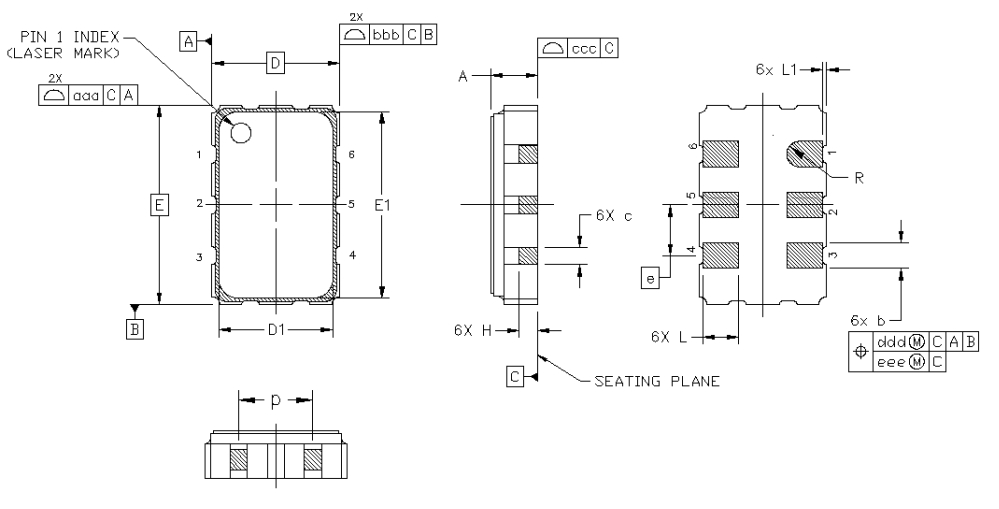

511FCA100M000BAG-Silicon差分振蕩器-6G交換機晶振-Si511有源晶振 尺寸圖

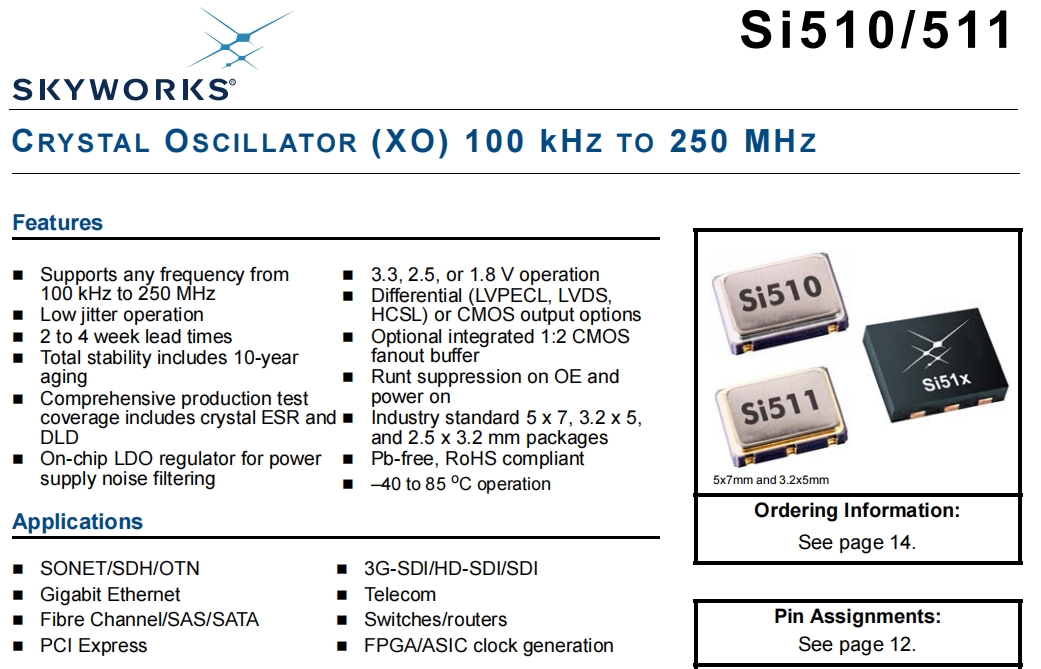

OscillatorCrystal產品特性：
支持來自的任何頻率100kHz至250MHz
低抖動操作
完全穩定包括10年老化
全面的生產測試
覆蓋范圍包括晶體ESR和DLD片內LDO電源調節器
電源噪聲濾波 3.3、2.5或1.8V工作電壓差異(LVPECL，LVDS， HCSL)或CMOS輸出選項
可選集成1:2CMOS扇出緩沖器
OE上的不良抑制和通電
行業標準5x7、3.2x5、 和2.5x3.2毫米封裝
無鉛，符合RoHS標準
–40至85攝氏度操作
更多相關Silicon晶振型號
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Voltage - Supply電壓 | Frequency Stability頻率穩定度 |
| 511BBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm |
| 511FBA200M000BAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm |
| 510BBA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm |
| 511FBA200M000AAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm |
| 511ABA25M0000BAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm |
| 511FCA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±20ppm |
| 511BCA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±20ppm |
| 530BA125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±50ppm |
| 531FB125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±20ppm |
| 530BB100M000DG | Silicon Labs | Si530 | 100MHz | 3.3V | ±20ppm |
| 530FC156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±7ppm |
| 510ABA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm |
| 511BBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm |
| 510BBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm |
| 511ABA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 510FBA200M000BAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm |
| 510ABA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm |
| 530FA156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±50ppm |
| 531BC000110DG | Silicon Labs | Si531 | 148.35165MHz | 3.3V | ±7ppm |
| 535FB125M000DG | Silicon Labs | Si535 | 125MHz | 2.5V | ±20ppm |
| SI50122-A4-GM | Silicon Labs | SI50122-A4 | 100MHz | 2.25 V ~ 3.63 V | +100ppm |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 530FC125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±7ppm |
| 531BC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC250M000DG | Silicon Labs | Si531 | 250MHz | 3.3V | ±7ppm |
| 530AC622M080DG | Silicon Labs | Si530 | 622.08MHz | 3.3V | ±7ppm |
| 511FBA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm |
| 511BBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 510BBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm |
| 510ABA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm |
| 531BC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm |
| 530AC125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±7ppm |
| 531FB106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±20ppm |
| 531AC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC148M500DG | Silicon Labs | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 530AC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm |
| 530BC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm |
| 531BC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 530FC200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±7ppm |
| 536BB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm |
| 536FB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm |
| 536AB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm |
| 510FBA125M000BAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm |
| 511BBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm |
| 510FBA100M000BAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm |
| 511FBA106M250BAG | Silicon晶振 | Si511 | 106.25MHz | 2.5V | ±25ppm |
| 510BBA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm |
| 511BBA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm |
| 510BBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm |
| 510BBA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm |
| 511FBA100M000AAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm |
| 511BBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm |
| 511FBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm |
| 510FBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm |
| 511BBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 511FBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm |
| 510BBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm |
| 511BBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm |
| 510FBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm |
| 511ABA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 510FBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm |
| 511BBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm |
| 510BBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm |
| 510ABA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm |
| 510DBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm |
| 531AC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm |
