當前位置：首頁 » 歐美晶振 » Skyworks晶振 » 6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振

prevnext

6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振

頻率：19.2MHZ

尺寸：5.0x3.2mm

6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振，尺寸5.0x3.2mm，頻率19.2MHZ，電壓1.8V，輸出邏輯CMOS，CMOS輸出晶振，CMOS有源振蕩器，有源晶體振蕩器，XO時鐘晶體振蕩器，有源貼片晶振，SMD有源晶振，可編程晶振，5032mm有源晶振，低電壓有源晶振，低功耗有源振蕩器，低抖動有源晶振，低相位有源晶振，低相噪有源振蕩器，高性能優越晶振，高品質有源晶振，6G數據通信晶振，工業自動化有源晶振，ASIC時鐘生成有源晶振，測試設備有源晶振，航空電子有源晶振，藍牙模塊有源晶振，無線應用有源晶振，具有小體積低電壓低抖動的特點。

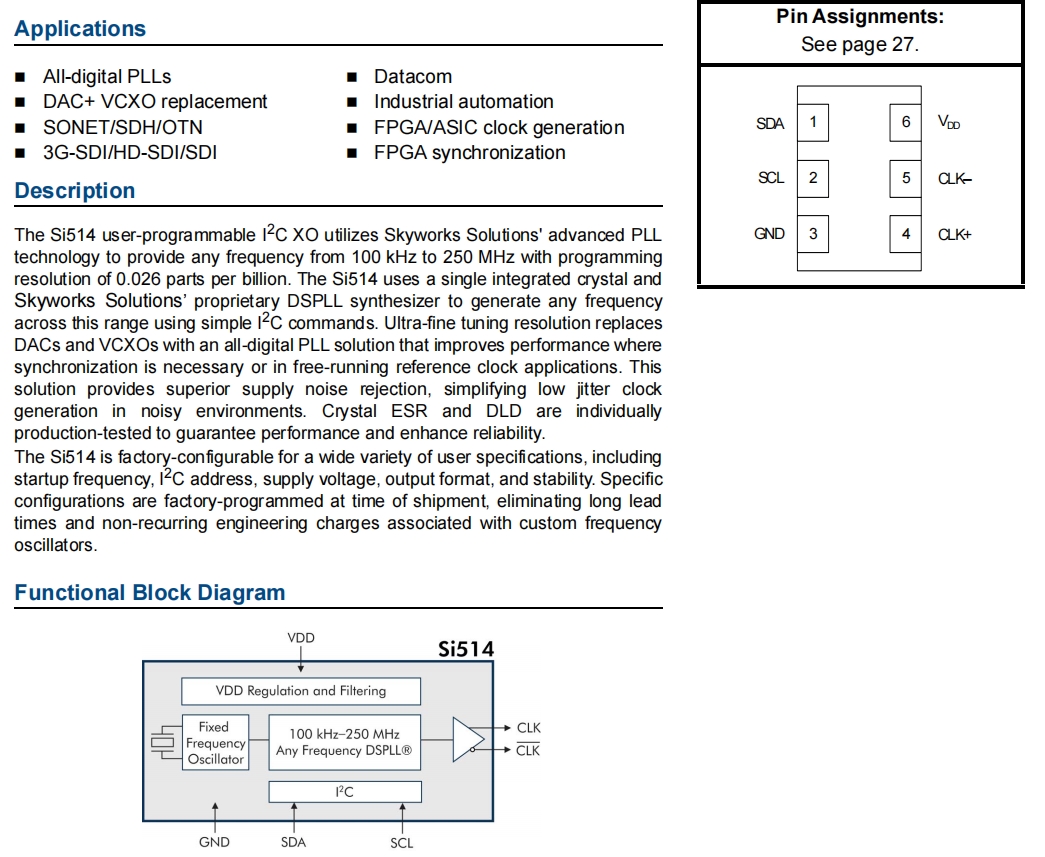

Si514用戶可編程I2C XO石英晶體振蕩器采用Skyworks Solutions的高級PLL通過編程提供從100 kHz到250 MHz的任何頻率的技術分辨率為十億分之0.026。Si514使用單個集成晶體Skyworks Solutions專有的DSPLL合成器，可生成任何頻率使用簡單的I2C命令在這個范圍內。超精細調諧分辨率取代DAC和VCXO采用全數字PLL解決方案，可在以下情況下提高性能同步是必要的，或者在自由運行的參考時鐘應用程序中。這該解決方案提供卓越的電源噪聲抑制，簡化了低抖動時鐘在嘈雜的環境中生成。Crystal ESR和DLD分別為經過生產測試以保證性能并提高可靠性.6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振.

訂購熱線：86-0755-27838351

6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

SDA, SCL Input Voltage High

VIH

0.80 x V DD

—

SDA, SCL Input Voltage Low

VIL

—

0.20 x V DD

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Programmable
Frequency Range

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Frequency
Reprogramming
Resolution

M RES

—

0.026

—

ppb

Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output)

From center frequency

–1000

—

+1000

ppm

Settling time for Small
Frequency Change

<±1000 ppm from
center frequency

—

100

µs

Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition)

>±1000 ppm from
center frequency

—

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO< 10 MHz

—

µs

FO> 10 MHz

—

µs

Enable Time

FO< 10 MHz

—

µs

FO> 10 MHz

—

µs

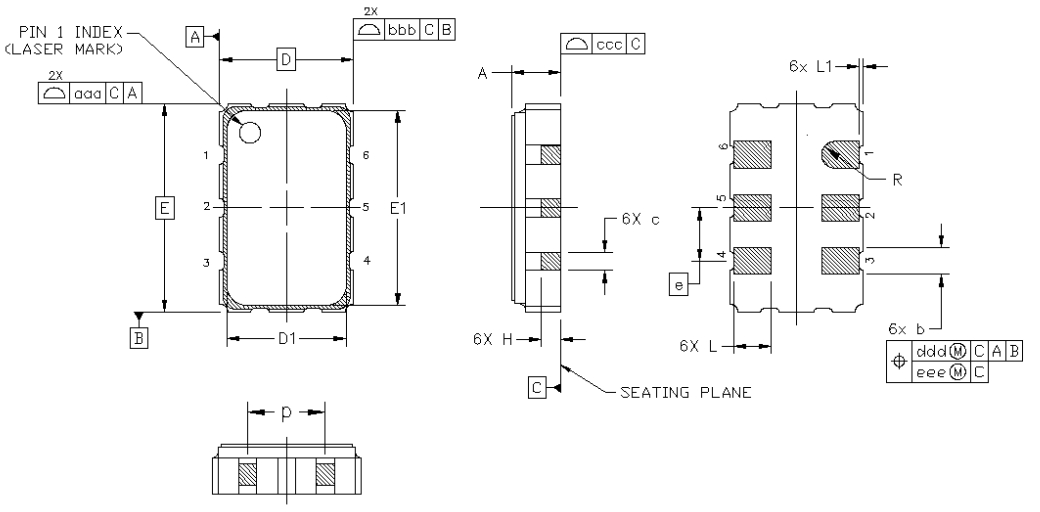

6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振 尺寸圖

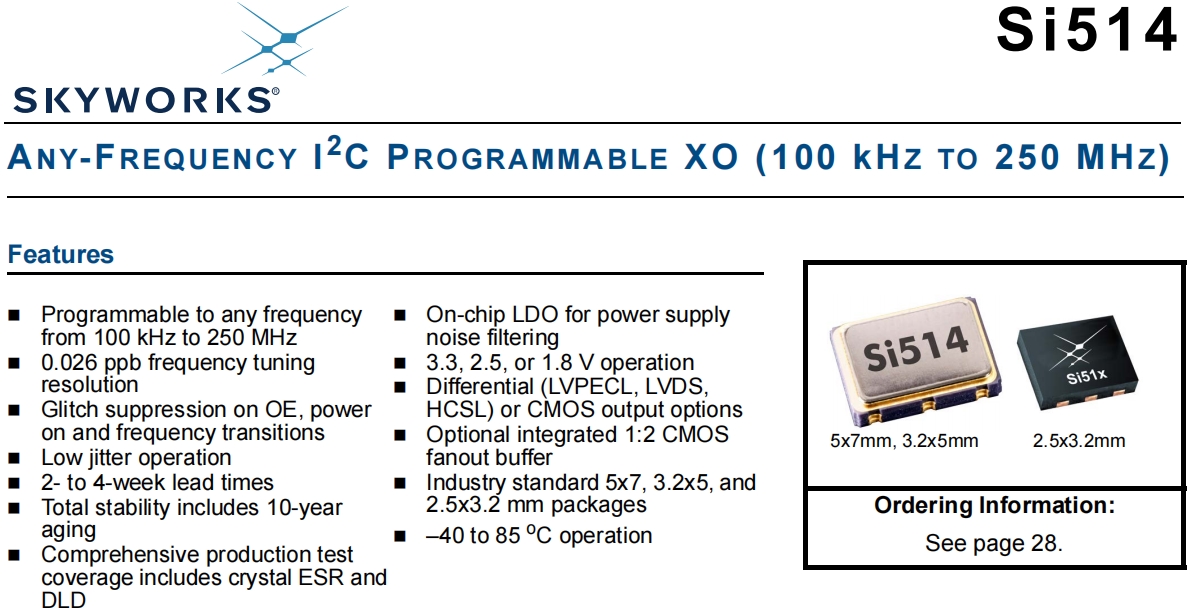

有源貼片晶振產品特性：

可編程到任何頻率從100kHz到250MHz

0.026 ppb頻率調諧決議

OE、電源故障抑制接通和頻率轉換

低抖動操作

2至4周交付周期

總體穩定性包括10年變老

綜合生產試驗覆蓋范圍包括晶體ESR和DLD

用于電源的片上LDO噪聲濾波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS輸出選項

可選集成1:2 CMOS扇出緩存

行業標準5x7、3.2x5和2.5x3.2 mm包裝

–40至85℃操作

更多相關Skyworks晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
514KCC000887BAG	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ CMOS SMD	Si514	24 MHz	CMOS	1.8V	±20ppm
514KAC002271BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514KAC002268BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS	1.8V	±50ppm
514KAC002274BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514KAC002275BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514ABB000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL	3.3V	±25ppm
514BBB001662BAGR	Skyworks有源晶振	XTAL OSC XO 148.35164MHZ LVDS	Si514	148.35164 MHz	LVDS	3.3V	±25ppm
514NBB000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (Complementary)	3.3V	±25ppm
514PBB000436BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)	2.5V	±25ppm
514CAA000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±50ppm
514KCC000111AAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS	1.8V	±20ppm
514CBC001544AAGR	Skyworks有源晶振	XTAL OSC XO 524.2880KHZ CMOS SMD	Si514	524.288 kHz	CMOS	3.3V	±25ppm
514KBC000894AAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS	1.8V	±25ppm
514KBC001525AAGR	Skyworks有源晶振	XTAL OSC XO 80.0000MHZ CMOS SMD	Si514	80 MHz	CMOS	1.8V	±25ppm
514ABB000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL	3.3V	±25ppm
514BBB001662BAG	Skyworks有源晶振	XTAL OSC XO 148.35164MHZ LVDS	Si514	148.35164 MHz	LVDS	3.3V	±25ppm
514CAC000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±50ppm
514CAC000142BAG	Skyworks有源晶振	XTAL OSC XO 11.2896MHZ CMOS SMD	Si514	11.2896 MHz	CMOS	3.3V	±50ppm
514CAC000306BAG	Skyworks有源晶振	XTAL OSC XO 22.5792MHZ CMOS SMD	Si514	22.5792 MHz	CMOS	3.3V	±50ppm
514CAC000776BAG	Skyworks有源晶振	XTAL OSC XO 100.0000KHZ CMOS SMD	Si514	100 kHz	CMOS	3.3V	±50ppm
514CAC000790BAG	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ CMOS SMD	Si514	32 MHz	CMOS	3.3V	±50ppm
514CAC001044BAG	Skyworks有源晶振	XTAL OSC XO 101.5000MHZ CMOS SMD	Si514	101.5 MHz	CMOS	3.3V	±50ppm
514CAC001120BAG	Skyworks有源晶振	XTAL OSC XO 18.4000MHZ CMOS SMD	Si514	18.4 MHz	CMOS	3.3V	±50ppm
514CAC001763BAG	Skyworks有源晶振	XTAL OSC XO 9.8304MHZ CMOS SMD	Si514	9.8304 MHz	CMOS	3.3V	±50ppm
514GAC000163BAG	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ CMOS SMD	Si514	20 MHz	CMOS	2.5V	±50ppm
514KAC000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	1.8V	±50ppm
514CAC001598BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si514	5.12 MHz	CMOS	3.3V	±50ppm
514CAC000157CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	50 MHz	CMOS	3.3V	±50ppm
514KAC002274BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514KAC000171BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	75 MHz	CMOS	1.8V	±50ppm
514CAC002205CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	24.576 MHz	CMOS	3.3V	±50ppm
514KAC002252BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS	1.8V	±50ppm
514KAC002267BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS	1.8V	±50ppm
514KAC002275BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514KAC002269BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS	1.8V	±50ppm
514KAC002271BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514KAC002273BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514CAC000798CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	1 MHz	CMOS	3.3V	±50ppm
514KAC002270BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS	1.8V	±50ppm
514KAC002272BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	750 kHz	CMOS	1.8V	±50ppm
514KAC002268BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	2.2 MHz	CMOS	1.8V	±50ppm
514CAC000199CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	CMOS	3.3V	±50ppm
514ABA000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL	3.3V	±25ppm
514BBA000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si514	74.25 MHz	LVDS	3.3V	±25ppm
514FBA000126BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si514	200 MHz	LVDS	2.5V	±25ppm
514MBA001683BAGR	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ CMOS DUAL	Si514	12 MHz	CMOS, Dual (In-Phase)	3.3V	±25ppm
514KBC000111CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	25 MHz	CMOS	1.8V	±25ppm
514CBC001544AAG	Skyworks有源晶振	XTAL OSC XO 524.2880KHZ CMOS SMD	Si514	524.288 kHz	CMOS	3.3V	±25ppm
514KBC000894AAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS	1.8V	±25ppm
514KBC001525AAG	Skyworks有源晶振	XTAL OSC XO 80.0000MHZ CMOS SMD	Si514	80 MHz	CMOS	1.8V	±25ppm
514CCC000107BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±20ppm
514CCC000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±20ppm
514CCC000148BAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si514	24.576 MHz	CMOS	3.3V	±20ppm
514CCC000153BAGR	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ CMOS SMD	Si514	12 MHz	CMOS	3.3V	±20ppm
514CCC000178BAGR	Skyworks有源晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	Si514	16 MHz	CMOS	3.3V	±20ppm
514CCC000199BAGR	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ CMOS SMD	Si514	40 MHz	CMOS	3.3V	±20ppm
514CCC000348BAGR	Skyworks有源晶振	XTAL OSC XO 16.3840MHZ CMOS SMD	Si514	16.384 MHz	CMOS	3.3V	±20ppm
514CCC000874BAGR	Skyworks有源晶振	XTAL OSC XO 28.63636MHZ CMOS SMD	Si514	28.63636 MHz	CMOS	3.3V	±20ppm
514CCC000917BAGR	Skyworks有源晶振	XTAL OSC XO 19.6608MHZ CMOS SMD	Si514	19.6608 MHz	CMOS	3.3V	±20ppm
514CCC000924BAGR	Skyworks有源晶振	XTAL OSC XO 3.2753MHZ CMOS SMD	Si514	3.2753 MHz	CMOS	3.3V	±20ppm
514CCC000956BAGR	Skyworks有源晶振	XTAL OSC XO 6.7800MHZ CMOS SMD	Si514	6.78 MHz	CMOS	3.3V	±20ppm
514CCC001120BAGR	Skyworks晶振	XTAL OSC XO 18.4000MHZ CMOS SMD	Si514	18.4 MHz	CMOS	3.3V	±20ppm
514CCC001258BAGR	Skyworks有源晶振	XTAL OSC XO 18.5500MHZ CMOS SMD	Si514	18.55 MHz	CMOS	3.3V	±20ppm
514CCC001287BAGR	Skyworks有源晶振	XTAL OSC XO 6.1440MHZ CMOS SMD	Si514	6.144 MHz	CMOS	3.3V	±20ppm
514CCC001313BAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS	3.3V	±20ppm
514GCC000504BAGR	Skyworks有源晶振	XTAL OSC XO 48.0000MHZ CMOS SMD	Si514	48 MHz	CMOS	2.5V	±20ppm
514GCC001688BAGR	Skyworks有源晶振	XTAL OSC XO 18.0000MHZ CMOS SMD	Si514	18 MHz	CMOS	2.5V	±20ppm
514KCC000654BAGR	Skyworks有源晶振	XTAL OSC XO 19.2000MHZ CMOS SMD	Si514	19.2 MHz	CMOS	1.8V	±20ppm
514KCC000887BAGR	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ CMOS SMD	Si514	24 MHz	CMOS	1.8V	±20ppm
514KCC000917BAGR	Skyworks有源晶振	XTAL OSC XO 19.6608MHZ CMOS SMD	Si514	19.6608 MHz	CMOS	1.8V	±20ppm
514KCC000982BAGR	Skyworks有源晶振	XTAL OSC XO 83.2500MHZ CMOS SMD	Si514	83.25 MHz	CMOS	1.8V	±20ppm
514KCC001832BAGR	Skyworks有源晶振	XTAL OSC XO 13.1072MHZ CMOS SMD	Si514	13.1072 MHz	CMOS	1.8V	±20ppm
514MCC000994BAGR	Skyworks有源晶振	XTAL OSC XO 8.0000MHZ CMOS DUAL	Si514	8 MHz	CMOS, Dual (In-Phase)	3.3V	±20ppm
514PCC000148BAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS DUAL	Si514	24.576 MHz	CMOS, Dual (In-Phase)	2.5V	±20ppm
514CCC000887BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si514	24 MHz	CMOS	3.3V	±20ppm
514KCC000112BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si514	10 MHz	CMOS	1.8V	±20ppm
514KCC000798BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si514	1 MHz	CMOS	1.8V	±20ppm
514CCC001469BAGR	Skyworks有源晶振	XO DIFF I2C PROGR XO 0.1-250MHZ	Si514	6.4 MHz	CMOS	3.3V	±20ppm
514CCC000121CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	100 MHz	CMOS	3.3V	±20ppm
514CCC000112CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	10 MHz	CMOS	3.3V	±20ppm
514CCC000956CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	6.78 MHz	CMOS	3.3V	±20ppm
514CCC002007CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	3.06 MHz	CMOS	3.3V	±20ppm
514KCC000121CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	100 MHz	CMOS	1.8V	±20ppm
514KCC000306CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	22.5792 MHz	CMOS	1.8V	±20ppm
514CCC000917CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	19.6608 MHz	CMOS	3.3V	±20ppm
514CCC000773CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	98.304 MHz	CMOS	3.3V	±20ppm
514CCC000306CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	22.5792 MHz	CMOS	3.3V	±20ppm
514KCC002408CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	8.45 MHz	CMOS	1.8V	±20ppm
514CCC002406CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	6.5536 MHz	CMOS	3.3V	±20ppm
514CAC000107BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±50ppm
514NAC000112AAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (Complementary)	3.3V	±50ppm
514CBC000110BAG	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ CMOS SMD	Si514	74.25 MHz	CMOS	3.3V	±25ppm
514CBC000111BAG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS	3.3V	±25ppm
514CBC000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±25ppm
514CBC000199BAG	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ CMOS SMD	Si514	40 MHz	CMOS	3.3V	±25ppm
514CBC000798BAG	Skyworks有源晶振	XTAL OSC XO 1.0000MHZ CMOS SMD	Si514	1 MHz	CMOS	3.3V	±25ppm
514CBC000926BAG	Skyworks有源晶振	XTAL OSC XO 5.0000MHZ CMOS SMD	Si514	5 MHz	CMOS	3.3V	±25ppm
514CBC000993BAG	Skyworks有源晶振	XTAL OSC XO 13.0000MHZ CMOS SMD	Si514	13 MHz	CMOS	3.3V	±25ppm
514CBC001598BAG	Skyworks有源晶振	XTAL OSC XO 5.1200MHZ CMOS SMD	Si514	5.12 MHz	CMOS	3.3V	±25ppm
514CBC001728BAG	Skyworks有源晶振	XTAL OSC XO 37.0000MHZ CMOS SMD	Si514	37 MHz	CMOS	3.3V	±25ppm
514CBC001729BAG	Skyworks有源晶振	XTAL OSC XO 38.0000MHZ CMOS SMD	Si514	38 MHz	CMOS	3.3V	±25ppm
514CBC001730BAG	Skyworks有源晶振	XTAL OSC XO 38.0000MHZ CMOS SMD	Si514	38 MHz	CMOS	3.3V	±25ppm
514GBC001688BAG	Skyworks有源晶振	XTAL OSC XO 18.0000MHZ CMOS SMD	Si514	18 MHz	CMOS	2.5V	±25ppm
514KBC000894BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si514	100 MHz	CMOS	1.8V	±25ppm
514CBC000157BAG	Skyworks有源晶振	XO DIFF I2C PROGR XO 0.1-250MHZ	Si514	50 MHz	CMOS	3.3V	±25ppm
514KBC001794CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	CMOS	1.8V	±25ppm
514KBC002240CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	CMOS	1.8V	±25ppm
514CBC001972CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	500 kHz	CMOS	3.3V	±25ppm
514KCC000111AAG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si514	25 MHz	CMOS	1.8V	±20ppm
514ACA001763BAGR	Skyworks有源晶振	XTAL OSC XO 9.8304MHZ LVPECL SMD	Si514	9.8304 MHz	LVPECL	3.3V	±20ppm
514BCA001204BAGR	Skyworks有源晶振	XTAL OSC晶振 XO 125.0000MHZ LVDS SMD	Si514	125 MHz	LVDS	3.3V	±20ppm
514JCA000126BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si514	200 MHz	LVDS	1.8V	±20ppm
514JCA001536BAGR	Skyworks有源晶振	XTAL OSC XO 85.0000MHZ LVDS SMD	Si514	85 MHz	LVDS	1.8V	±20ppm
514JCA001690BAGR	Skyworks有源晶振	XTAL OSC XO 161.1328MHZ LVDS SMD	Si514	161.1328 MHz	LVDS	1.8V	±20ppm
514PCA000798BAGR	Skyworks有源晶振	XTAL OSC XO 1.0000MHZ CMOS DUAL	Si514	1 MHz	CMOS, Dual (In-Phase)	2.5V	±20ppm
514NBB000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (Complementary)	3.3V	±25ppm
514PBB000436BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS DUAL	Si514	10 MHz	CMOS, Dual (In-Phase)	2.5V	±25ppm
514CBA000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±25ppm
514CBB000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ CMOS SMD	Si514	74.25 MHz	CMOS	3.3V	±25ppm
514CBB000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si514	10 MHz	CMOS	3.3V	±25ppm
514CBB000136BAGR	Skyworks有源晶振	XTAL OSC XO 160.0000MHZ CMOS SMD	Si514	160 MHz	CMOS	3.3V	±25ppm
514CBB000215BAGR	Skyworks有源晶振	XTAL OSC XO 27.0000MHZ CMOS SMD	Si514	27 MHz	CMOS	3.3V	±25ppm
514GBB000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ CMOS SMD	Si514	74.25 MHz	CMOS	2.5V	±25ppm
514KBB000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ CMOS SMD	Si514	74.25 MHz	CMOS	1.8V	±25ppm
514CBB000159BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si514	148.5 MHz	CMOS	3.3V	±25ppm
514CBB000262BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	70 MHz	CMOS	3.3V	±25ppm
514CCC000887BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si514	24 MHz	CMOS	3.3V	±20ppm
514KCC000112BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si514	10 MHz	CMOS	1.8V	±20ppm

6G數據通信晶振 514KCC000654BAG Si514可編程振蕩器思佳訊晶振

采購：6G數據通信晶振,514KCC000654BAG,Si514可編程振蕩器,思佳訊晶振

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：

跟此產品相關的產品 / Related Products

CMOS,FCD-Tech移動設備晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振蕩器

CMOS,FCD-Tech移動設備晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振蕩器,FCD-Tech水晶振蕩子,四腳有源晶振,OSC貼片晶振,5032mm有源晶振,石英有源振蕩器,32MHZ石英晶體振蕩器,時鐘晶體振蕩器,尺寸5.0x3.2mm,頻率32MHZ,輸出CMOS,低電壓晶振,低損耗晶振,低抖動晶振,無線局域網晶振,移動設備晶振,便攜式設備晶振,數字音頻晶振.

NKG有源晶振,7050mm,SCO36B40.000MTS-EXT,SCO3系列,40MHZ

NKG有源晶振,7050mm,SCO36B40.000MTS-EXT,SCO3系列,40MHZ,OSC振蕩器,有源貼片晶振,7050mm微型晶振,40MHZ振蕩器,SCO3系列晶振,四腳貼片晶振,時鐘晶體振蕩器,尺寸7.0×5.0mm,頻率40MHZ,低電壓晶振,低功耗晶振,低抖動晶振,低相位晶振,低相噪晶振,汽車級晶振,微處理器晶振,無線局域網晶振,機頂盒晶振,便攜式設備晶振.

NKG有源晶振,SCH3高速網絡晶振,SCH36B100.000MTS-EXT,7050mm

NKG有源晶振,SCH3高速網絡晶振,SCH36B100.000MTS-EXT,7050mm,NKG振蕩器,石英晶體振蕩器,六腳有源振蕩器,OSC晶振,有源貼片晶振,有源晶體振蕩器,100MHZ有源晶振,7050mm微型晶振,尺寸7.0×5.0mm,頻率100MHZ,電壓3.3V,輸出LVCMOS,低抖動晶振,低相位晶振,低相噪晶振,低老化晶振,無線局域網晶振,高速網絡晶振.
